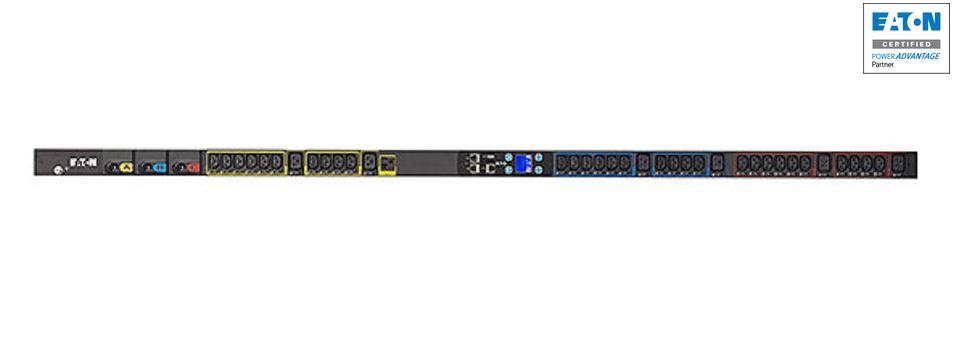

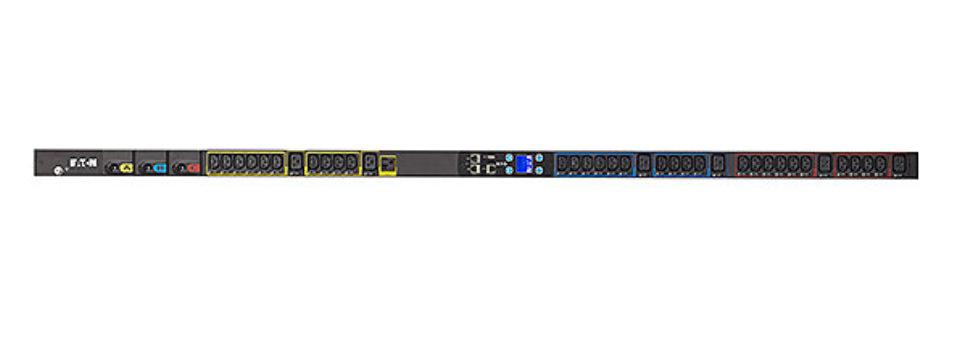

This three phase power distribution unit is perfect for data center managers and enterprise IT teams who need metered rack power distribution unit capabilities with maximum power efficiency. Our Eaton EMI305-06 delivers:
-
Rack mount power distribution units PDU that provide 12.48kW of reliable three-phase power
-
ePDU G3 advanced monitoring for comprehensive energy management
-
Outlet grip technology ensuring secure C13 and C19 connections
-
Power distribution unit data center optimization for high-density environments
Key Features
-
Metered power distribution unit with real-time three-phase monitoring
-
CS8365 input connector supporting 35A at 200-240V
- Optimized for 19 rack power distribution unit installations
- Consistent 12.48kW power capacity for enterprise server loads
-
Outlet grip technology on all 36 outlets for secure connections
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
EMI305-06 |
| Type |
Three Phase Metered PDU |
| Phase Configuration |
Three-phase |
| Form Factor |
0U Rack Mount PDU |
| Input Connection |
CS8365 with 6 ft cord |
| Power Capacity |
12.48kW max, 35A |
| Voltage Range |
200-240V |
| Outlet Configuration |
36 Total: (30) C13 Outlet grip, (6) C19 Outlet grip |
| Compatible Systems |
Standard 19" server racks and high-density data center equipment |
Frequently Asked Questions
Q: What advantages does this three phase power distribution unit offer over single-phase models?
A: This three phase PDU delivers 12.48kW of balanced power distribution, reducing neutral current and improving efficiency for high-density server deployments.
Q: How does the ePDU G3 metering enhance power management capabilities?
A: The ePDU G3 provides real-time monitoring of voltage, current, and power consumption per phase, enabling proactive load balancing and energy optimization.
Q: What is outlet grip technology and why is it important?
A: Outlet grip technology provides enhanced retention force on all C13 and C19 connections, preventing accidental disconnections in vibration-prone data center environments.
Q: Is this rack mount power distribution unit compatible with standard server racks?
A: Yes. This 0U power distribution unit mounts vertically in standard 19" racks without consuming rack space, perfect for maximizing server density while ensuring reliable power distribution.
Three phase metered PDU with 12.48kW capacity, CS8365 input, and outlet grip technology for enterprise data centers.
