14.4kW, 1 x CS8365 In, 2 x NEMA L6-30R & 24 x IEC 60320 C13 Grip & 4 x IEC 60320 C19 Grip & Out, 10/100 Ethernet, RS232, 38U-A

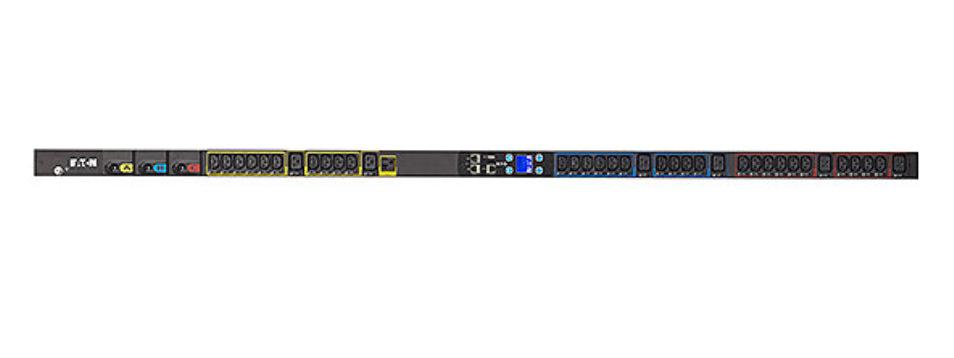

Eaton EMI300-06. PDU types: Monitored, Rack capacity: 38U-A, Mounting: Vertical. AC outlets quantity: 30 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, NEMA L6-30R, Power plug: CS8365. Cable length: 1.8 m. Nominal input voltage: 200-240 V, Maximum current: 40 A, AC input frequency: 50 - 60 Hz. Dimensions (WxDxH): 52.07 x 53.34 x 1689.1 mm
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
