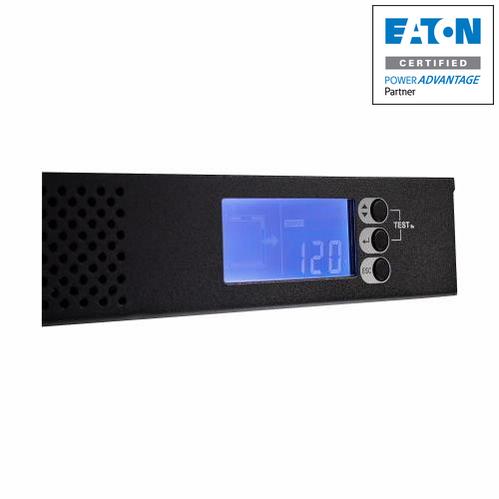

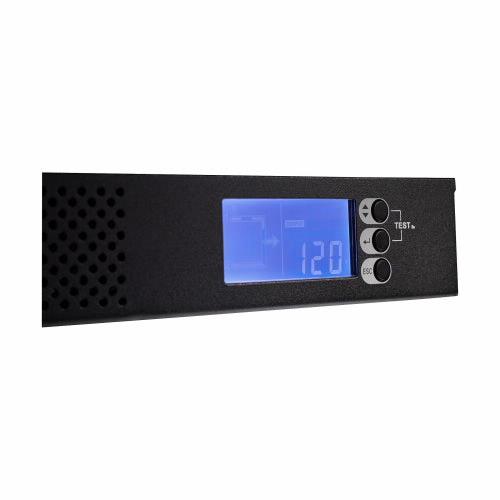

This automatic transfer switch PDU is perfect for data center operators and IT administrators who need reliable rack mount power distribution units pdu with redundant power capabilities. Our EATS115 delivers:
-
Dual input automatic transfer switching that ensures continuous power availability
-
1U rack mount design for space-efficient server rack deployment
-
Eaton power distribution unit reliability with enterprise-grade performance
-
Server power redundancy for mission-critical applications and equipment protection
Key Features
-
Automatic transfer switch technology with dual 5-15P power inputs
-
1.44 kW maximum capacity for reliable power distribution
- Optimized for single-phase 120V applications
- Consistent 12A current rating for stable power delivery
-
10 NEMA 5-15R outlets for equipment connectivity
-
10-foot power cord for flexible installation options
-
1U horizontal rack mount form factor for standard 19-inch racks
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
EATS115 |
| Type |
Automatic Transfer Switch PDU |
| Power Capacity |
1.44 kW maximum |
| Input |
Dual (2) NEMA 5-15P inputs, 10 ft cord |
| Voltage Rating |
120V single-phase |
| Current Rating |
12A maximum |
| Outlets |
10 NEMA 5-15R receptacles |
| Form Factor |
1U horizontal rack mount |
| Transfer Type |
Automatic switching between power sources |
| Compatible Systems |
19-inch server racks, network equipment, UPS systems |
Frequently Asked Questions
Q: How does the automatic transfer switch PDU provide power redundancy?
A: The dual input design automatically switches between two independent power sources when the primary source fails, ensuring continuous power availability for connected equipment.
Q: What makes this eATS suitable for server rack installations?
A: Yes, the 1U rack mount form factor fits standard 19-inch server racks perfectly — ideal for data center power redundancy and server room applications requiring automatic failover protection.
Q: What is the power capacity of this rack mount ATS?
A: 1.44 kW maximum capacity at 120V — sufficient for powering multiple servers, network switches, and other rack mounted equipment with full redundant power protection.
Q: Can this ATS PDU work with standard UPS systems?
A: Yes. The dual 5-15P inputs are designed to connect to separate UPS units or different power circuits, providing automatic power transfer switching for enhanced system reliability.
Automatic Transfer Switch PDU with dual power inputs. 1U rack mount ATS, 1.44kW capacity, 10 outlets, automatic failover protection.
