The Eaton 9PX11KTF5G2 is a high-capacity, online double-conversion UPS built to deliver clean, continuous power for mission-critical IT and electrical loads. With a power factor of 1.0, it provides 11kVA / 11kW of usable output to protect sensitive equipment from outages, voltage fluctuations, surges, and electrical noise.

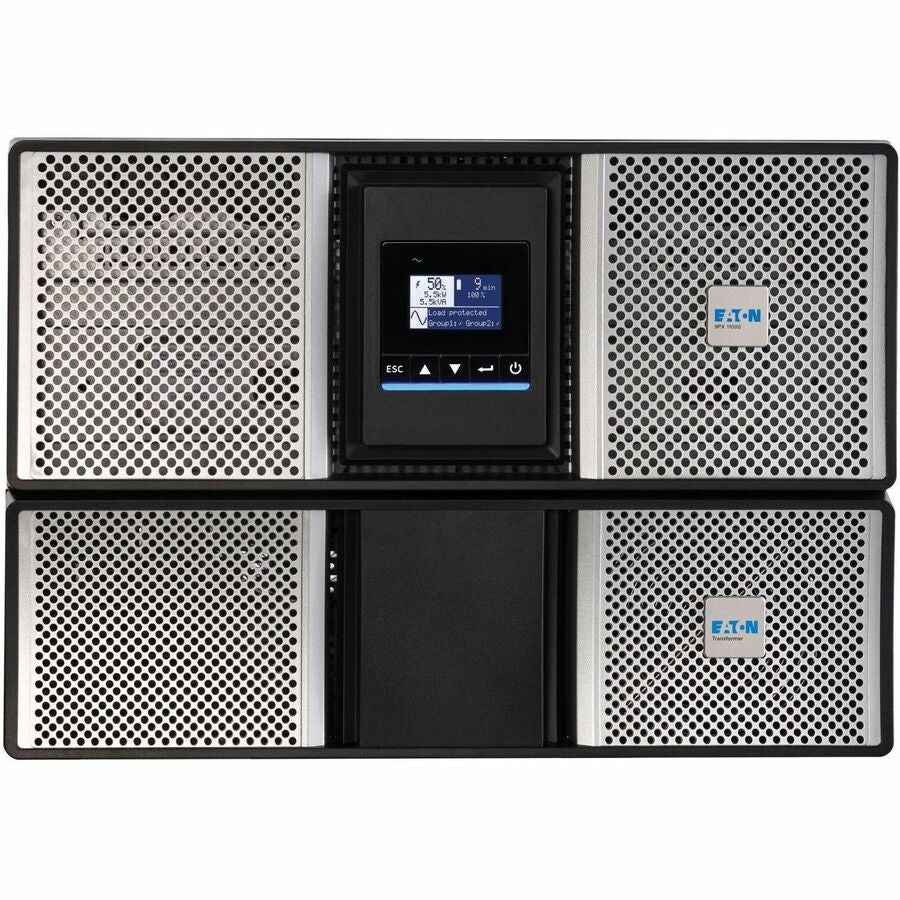

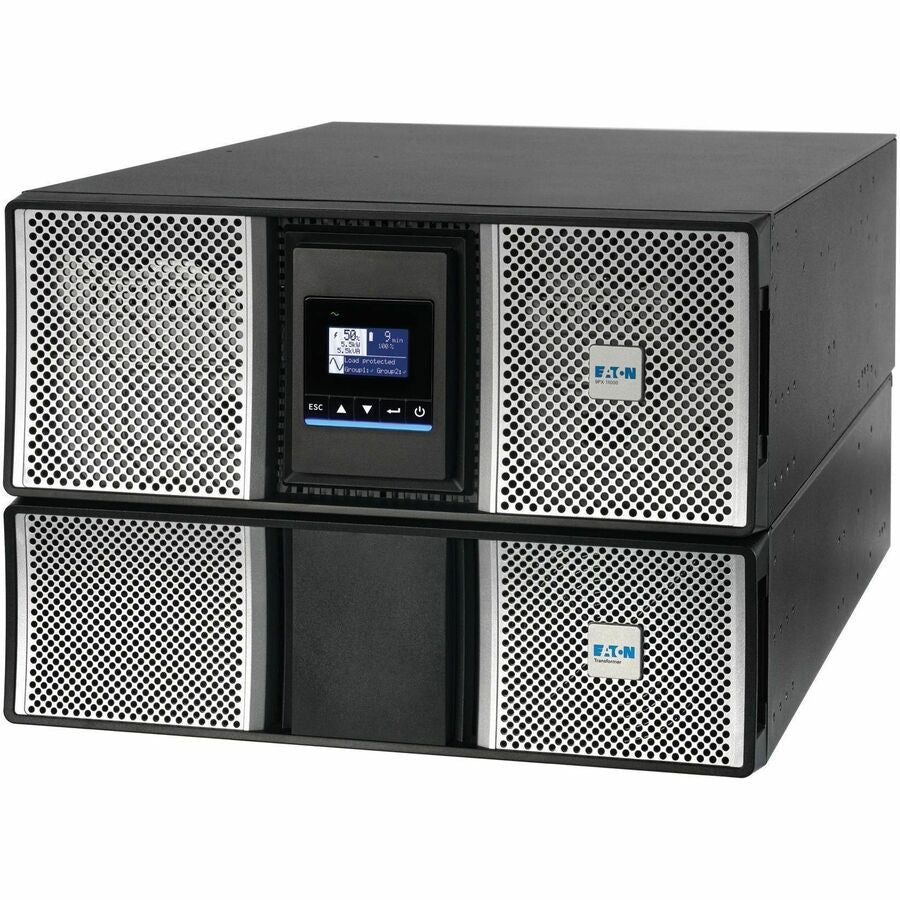

This model is a rack/tower 7U bundle designed for environments that need 208V input and 120/208V output distribution. It includes a step-down transformer and a maintenance bypass module, and it also comes with a NETWORK-M3 Gigabit network card for remote monitoring and shutdown integration.
Who it’s for
-
Server rooms and network closets powering servers, switches, storage, and VoIP/PoE infrastructure
-
Edge deployments and small-to-mid-size data center environments needing true online power protection
-
Healthcare, government, industrial IT, and enterprise offices where uptime and power quality are critical
-
Teams that want remote UPS visibility and control via network monitoring
Brief Spec Table
| Spec |
Details |
| UPS topology |
Online / Double-conversion |
| Capacity |
11 kVA / 11 kW (PF 1.0) |
| Output |
120/208V, true sine wave |
| Input |
Hardwired; 208V (supports common 200–240V nominal ranges) |
| Form factor |
Rack/Tower, 7U |
| Network |
Includes NETWORK-M3 Gigabit network card |
| Battery type |
Sealed lead-acid; hot-swappable internal batteries |
| Runtime expansion |
Supports external battery modules (EBMs) |
| Efficiency |
High-efficiency operation (up to ~97% at max load) |
| Included components |
UPS + step-down transformer + maintenance bypass + network card |
FAQ (5)
1) Is this a true online (double-conversion) UPS?
Yes. It uses online/double-conversion topology to continuously condition power and isolate your equipment from power disturbances.
2) Does it include network monitoring out of the box?
Yes. It includes the NETWORK-M3 Gigabit network card for remote monitoring, alerts, and graceful shutdown integration.
3) Is a maintenance bypass included?
Yes. This bundle includes a maintenance bypass module so you can service the UPS without dropping power to connected loads (when properly installed).
4) Can I extend runtime for longer outages?
Yes. You can add external battery modules (EBMs) to increase runtime based on your load requirements.
5) What environments is it best suited for?
It’s ideal for server rooms, closets, edge IT, and critical business systems that require reliable, conditioned power and remote management.
