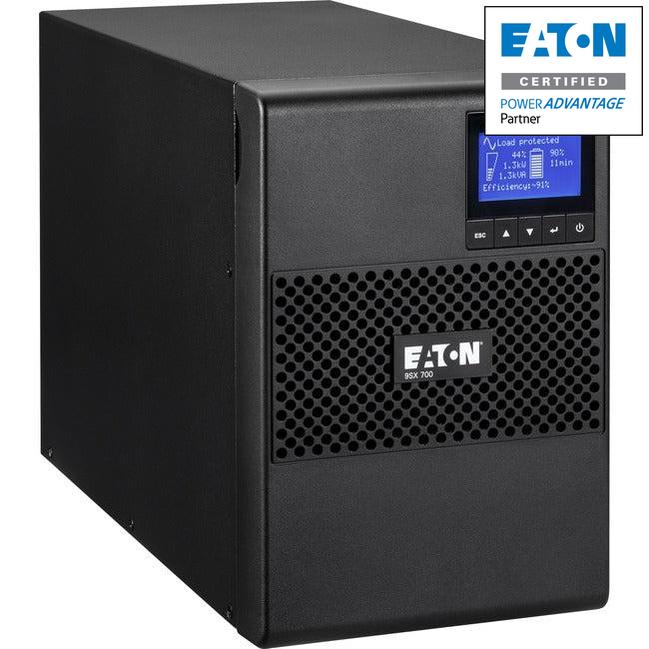

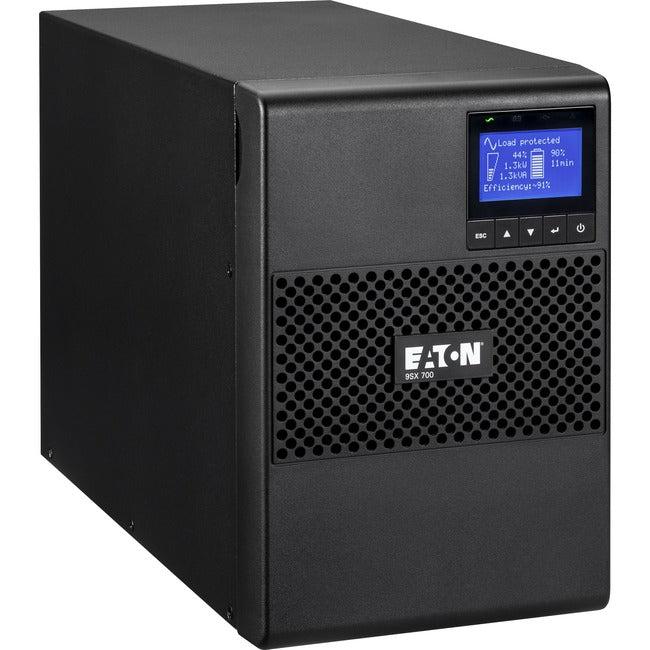

This Eaton 9SX online UPS is perfect for IT professionals and business owners who need premium double-conversion power protection for their critical systems. Our 9SX series delivers:
-
True sine wave output providing clean power for sensitive electronics
-
700VA capacity with 630W power rating for comprehensive equipment protection
-
Online double-conversion technology eliminating all power disturbances
-

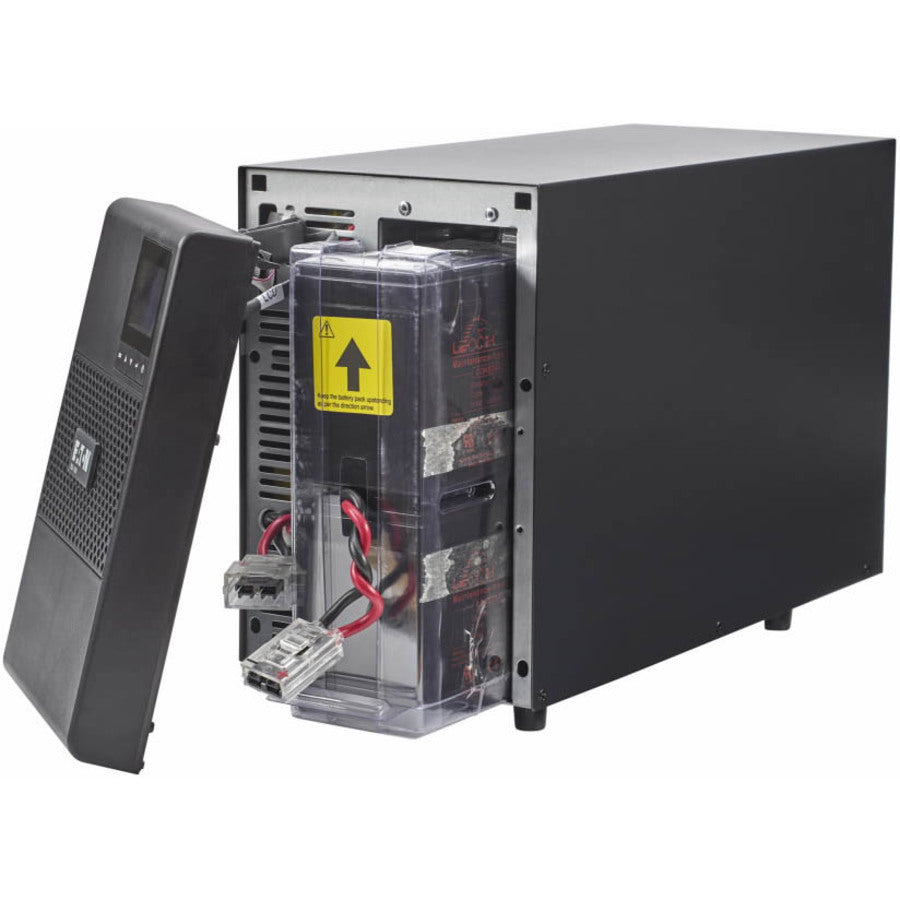

Extended runtime capability with optional external battery packs for longer backup duration
Key Features
-
Double-conversion topology providing continuous power conditioning
-
Network monitoring capability with optional network card for remote management
- Optimized for server protection and critical business applications
- Consistent intelligent power management with LCD display and status indicators
-
Compact tower design measuring 9.9"H x 6.3"W x 13.9"D
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
9SX700 |
| Type |
Online UPS |
| Power Rating |
700VA / 630W |
| Technology |
Double-Conversion with True Sine Wave output |
| Input Plug |
5-15P NEMA |
| Outlets |
6 x 5-15R NEMA receptacles |
| Dimensions |
9.9"H x 6.3"W x 13.9"D |
| Weight |
26.5 lbs |
| Compatible Systems |
Servers, workstations, network equipment, sensitive electronics |
Frequently Asked Questions
Q: What makes this online UPS different from line-interactive models?
A: The Eaton 9SX online UPS uses double-conversion technology that continuously converts AC to DC and back to AC, providing perfect power quality with zero transfer time during outages.
Q: Can I extend the runtime of this UPS system?
A: Yes, this model supports extended runtime configurations with optional external battery packs, allowing you to customize backup duration based on your specific requirements.
Q: Is the power output safe for sensitive electronic equipment?
A: Absolutely. The true sine wave output provides clean, stable power identical to utility power — perfect for servers, networking equipment, and other sensitive electronics requiring precise power quality.
Q: Does this UPS support network monitoring and management?
A: Yes. With an optional network card, this networkable UPS enables SNMP monitoring, email alerts, and remote management capabilities for comprehensive power infrastructure oversight.
Eaton 9SX online UPS with 700VA capacity and true sine wave output. Double-conversion power protection with extended runtime options for critical systems.
