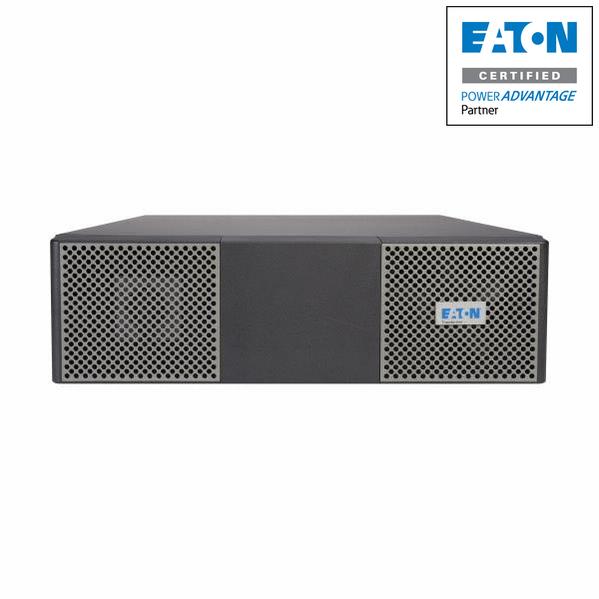

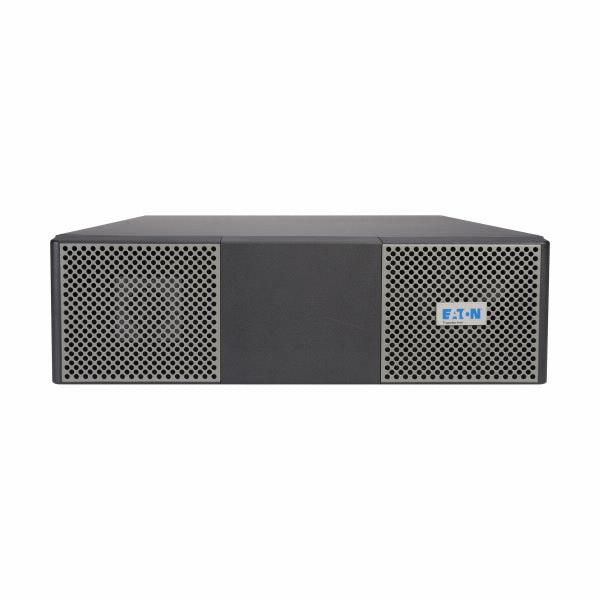

This PowerPass Distribution Module is perfect for IT administrators and facilities managers who need reliable UPS maintenance bypass capabilities for 5kVA to 6kVA 9PX systems. Our solution delivers:
-
9PX UPS Systems integration that provides seamless maintenance bypass functionality
-
Power distribution unit rack mount for secure installation in standard 19-inch racks
-
Rack mount power distribution units pdu compatibility ensuring versatile deployment options
-
208V to 120V power conversion for optimal equipment compatibility and power management
Key Features
-
PowerPass Distribution Module to enable maintenance bypass operations
-
Maintenance bypass functionality optimized for uninterrupted power during UPS servicing
- Optimized for 9PX UPS Systems applications with 5kVA to 6kVA capacity
- Consistent circuit breaker protection for reliable equipment operation
-
L6-30P input configuration to meet industrial power requirements
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
9PXPPDM1 |
| Type |
PowerPass Distribution Module |
| Compatible UPS |
5kVA to 6kVA 9PX UPS Systems |
| Input |
L6-30P Plug |
| Power Conversion |
208V to 120V |
| Rack Size |
3U Rack Mount |
| Installation |
Rack/Tower Configuration |
| Protection |
Circuit Breakers |
| Compatible Systems |
Eaton 9PX 5kVA and 6kVA UPS models |
Frequently Asked Questions
Q: What is the purpose of a PowerPass Distribution Module?
A: This PowerPass Distribution Module provides maintenance bypass capability for 9PX UPS systems, allowing continuous power to connected equipment during UPS maintenance or replacement procedures.
Q: Is this compatible with both rack and tower installations?
A: Yes, it's engineered for power distribution unit rack mount installations. The 3U form factor accommodates both rack-mounted and tower configurations for flexible deployment options.
Q: How does the 208V to 120V conversion benefit my setup?
A: The 208V to 120V power conversion ensures compatibility with standard equipment while maintaining efficient power distribution — perfect for mixed voltage environments and equipment standardization.
Q: What circuit protection does this module provide?
A: Yes. This unit includes integrated circuit breakers for comprehensive protection and meets stringent safety standards for critical power infrastructure applications.
PowerPass Distribution Module for 9PX UPS systems. 3U rack mount maintenance bypass with L6-30P input and circuit breaker protection.
