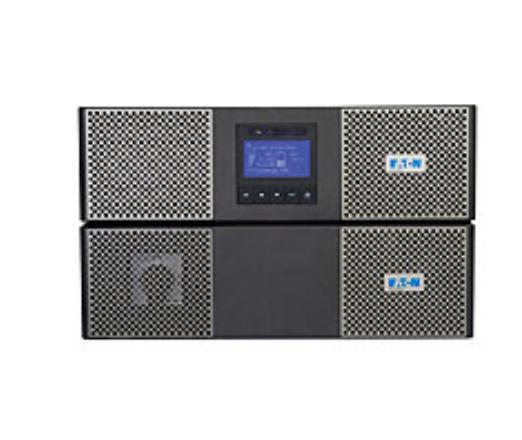

This Eaton 9PX Double Conversion UPS is perfect for IT administrators and enterprises who need enterprise server protection with guaranteed power quality. Our solution delivers:
-
True double conversion topology that provides continuous pure sine wave power
-
3000W continuous power output for critical server infrastructure
-
Hot-swappable battery technology ensuring zero downtime maintenance
-
Network management capabilities for comprehensive monitoring and control
Key Features
-
Double conversion online topology to eliminate all power disturbances
-
Pure sine wave output ensuring optimal equipment compatibility
- Optimized for enterprise server protection and critical applications
- Consistent 3000VA power capacity for maximum system uptime
-
Energy Star qualified efficiency to meet environmental standards
-
Hot-swappable battery modules for maintenance without shutdown
-

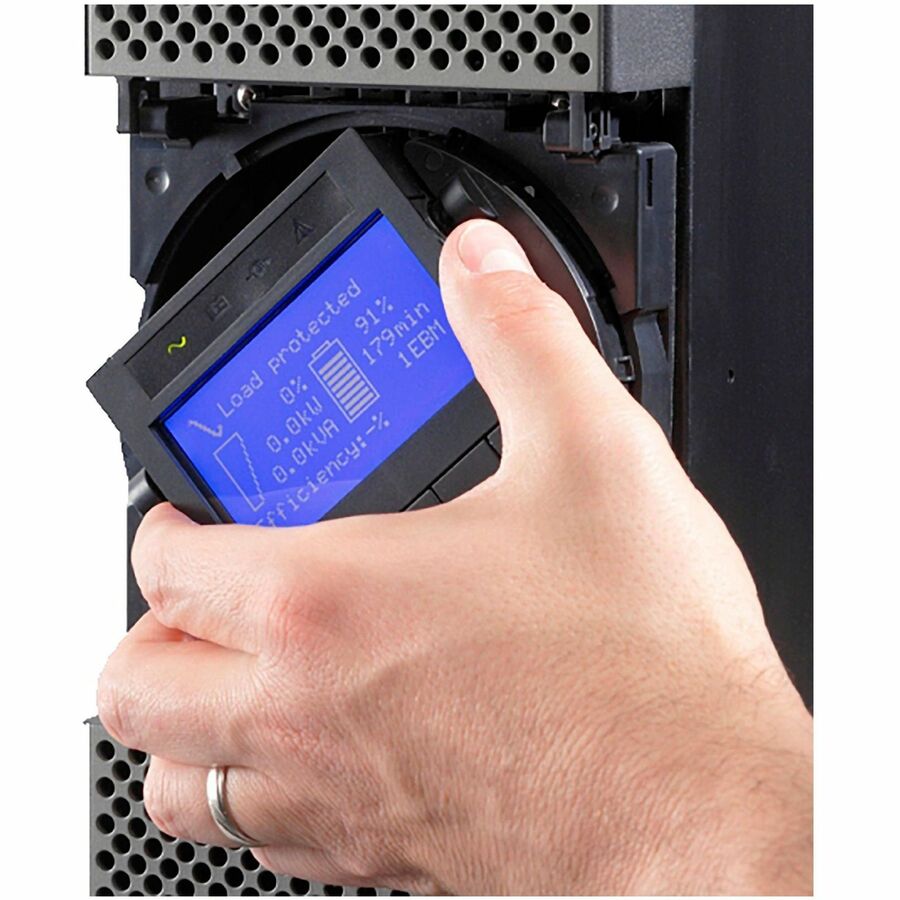

Advanced LCD display providing real-time system status
-
Network management card ready for remote monitoring capabilities
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
9PX3K3UNP1 |
| Type |
Double Conversion Online UPS |
| Power Capacity |
3000W / 3000VA |
| Input Voltage |
120-240V Single Phase |
| Output Voltage |
120V / 208V / 240V |
| Waveform |
Pure Sine Wave |
| Form Factor |
6U Rackmount / Tower Convertible |
| Efficiency |
Up to 94% in Double Conversion Mode |
| Battery Runtime |
5-7 minutes at full load (expandable) |
| Compatible Systems |
Enterprise servers, network equipment, storage systems |
Frequently Asked Questions
Q: What is the difference between this Eaton UPS and standard line-interactive models?
A: The Eaton 9PX double conversion UPS provides continuous power conditioning through true online topology, eliminating all power disturbances including voltage sags, surges, and frequency variations - perfect for mission-critical enterprise applications.
Q: Is this UPS suitable for server rack installation?
A: Yes, the 9PX3K3UNP1 is engineered for 6U rackmount installation while also supporting tower configuration. The compact design maximizes rack space efficiency for data center environments.
Q: How does the pure sine wave output benefit my equipment?
A: Pure sine wave technology ensures optimal compatibility with sensitive electronic equipment, reducing heat generation and extending equipment lifespan — perfect for protecting valuable server infrastructure and networking equipment.
Q: Does this UPS meet energy efficiency standards?
A: Yes. The 9PX series achieves Energy Star qualification with up to 94% efficiency in double conversion mode, significantly reducing operating costs while maintaining superior power protection.
