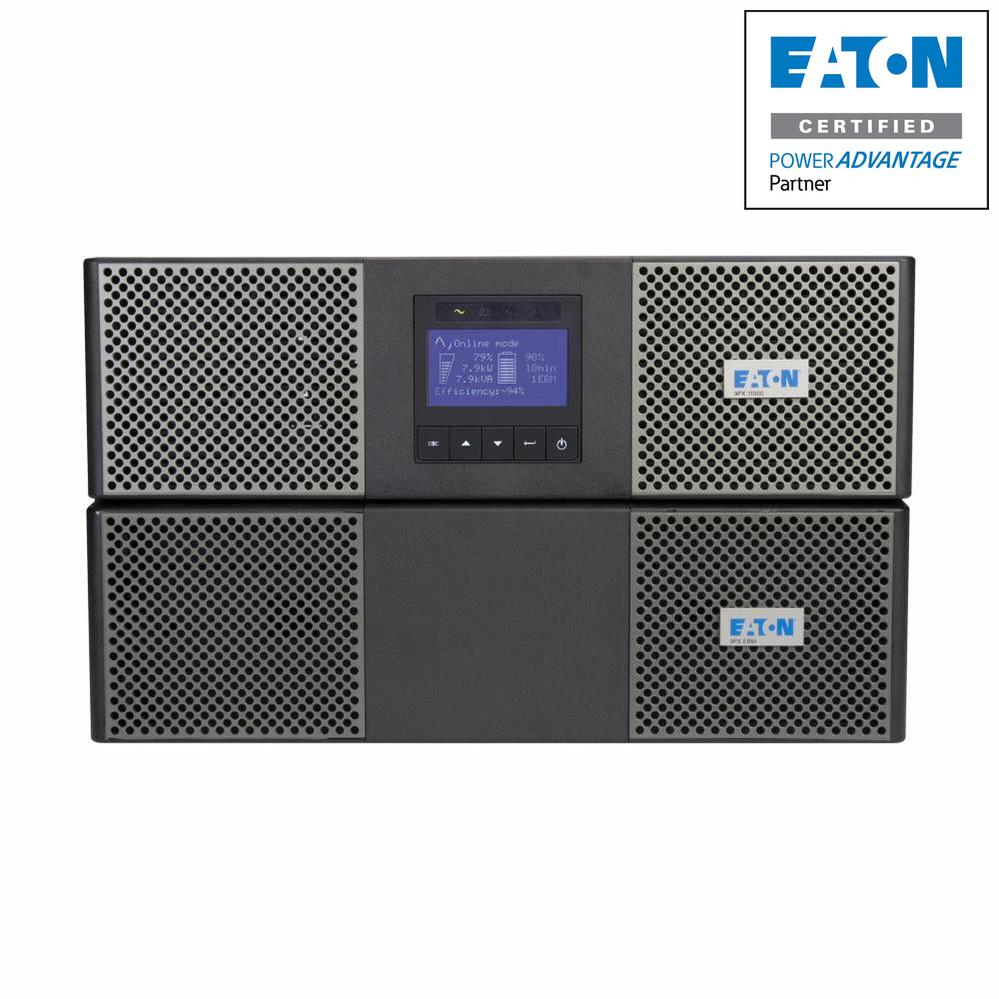

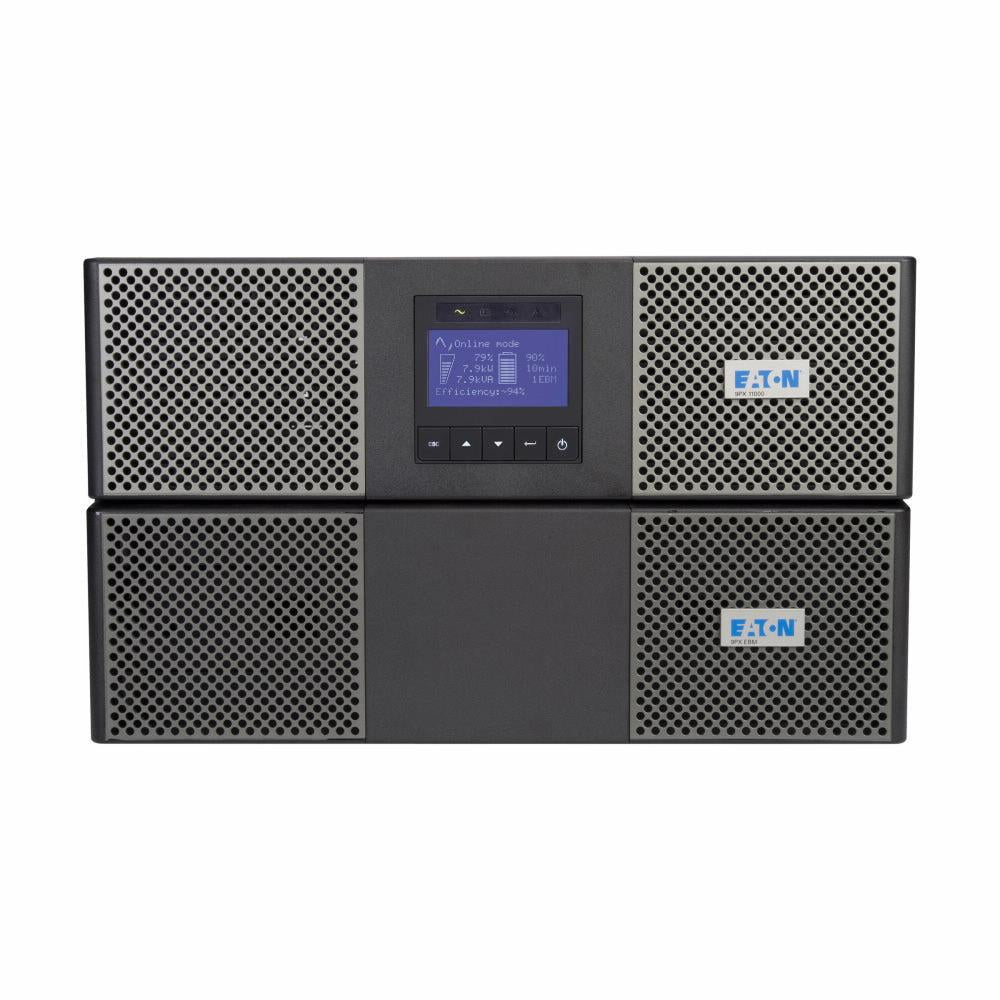

This online double-conversion UPS 10kVA system is perfect for data centers and enterprise IT environments requiring the highest level of power protection. Our smart UPS delivers zero transfer time protection with continuous power conditioning for mission-critical applications including server rack battery backup and network infrastructure.
-
True online double-conversion topology providing zero transfer time and continuous power conditioning
-
10kVA/9kW power capacity supporting high-density server environments and critical systems
-
Split-phase output configuration optimizing power distribution for North American installations
-
Network management card ready enabling advanced remote monitoring and SNMP integration
Key Features
-
Online double-conversion technology eliminating all power disturbances and providing pure sine wave output
-
6U rack mount design optimizing data center space utilization with high power density
- Advanced networkable UPS capabilities with optional network management card support
- High-efficiency ECO mode reducing operating costs while maintaining protection
-
Split-phase 120/240V output supporting diverse North American electrical configurations
- Hot-swappable batteries enabling maintenance without system shutdown
- Scalable runtime with external battery cabinets for extended backup duration
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
9PX10KSP |
| Type |
Online Double-Conversion UPS System |
| Capacity |
10 kVA / 9 kW |
| Topology |
True Online Double-Conversion |
| Form Factor |
6U Rack Mount |
| Output |
Split-Phase 120/240V |
| Input Voltage |
200/208/220/230/240V ±20% |
| Transfer Time |
Zero (continuous online operation) |
| Efficiency |
Up to 94% (VFI mode), 98% (ECO mode) |
| Battery Type |
Hot-swappable, valve-regulated lead-acid |
| Runtime |
5-7 minutes at full load (internal batteries) |
| Communication |
USB, RS-232, optional Network Management Card
|
| Compatible Systems |
Enterprise servers, data center equipment, critical infrastructure |
Frequently Asked Questions
Q: What is the advantage of online double-conversion topology?
A: Online double-conversion UPS systems provide the highest level of protection by continuously converting AC power to DC and back to AC, eliminating all power disturbances including voltage sags, surges, frequency variations, and harmonics with zero transfer time.
Q: Can this UPS support both 120V and 240V loads simultaneously?
A: Yes. The split-phase output configuration provides both 120V and 240V outputs, making it ideal for mixed-voltage environments common in North American data centers and enterprise facilities.
Q: What network management capabilities are available?
A: This networkable UPS supports optional network management cards enabling SNMP monitoring, email notifications, remote management via web interface, and integration with enterprise monitoring systems for comprehensive power management.
Q: How does the 6U form factor benefit data center installations?
A: The compact 6U rack mount design maximizes power density while minimizing valuable rack space usage, providing 10kVA capacity in just 6 rack units compared to traditional tower configurations.
Q: Is this UPS suitable for virtualized server environments?
A: Absolutely. This enterprise smart UPS is specifically designed for high-density virtualized environments, providing the clean, continuous power required for server rack battery backup and ensuring zero downtime for critical virtual machines and applications.
Online double-conversion UPS 10kVA for enterprise data centers. 6U split-phase smart UPS with networkable management for critical server protection.
