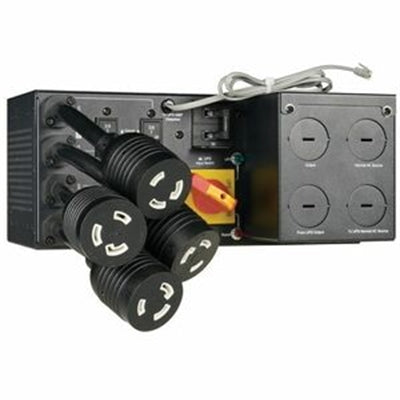

Eaton 9PX Gen 2 Maintenance Bypass
The Eaton 9PX Gen 2 maintenance bypass is engineered for data centers and critical infrastructure requiring zero downtime during UPS maintenance or replacement. This hardwired bypass unit seamlessly transfers power from utility to connected equipment, eliminating service interruptions for 8kVA to 11kVA systems. Ideal for facilities managing mission-critical servers, networking equipment, and storage systems that cannot tolerate power loss.
Designed with enterprise-grade reliability, the 9PX Gen 2 bypass features four NEMA L6-30R outlets for flexible load distribution and 0U rear rack mounting to maximize cabinet space. The hardwired input and output connections ensure stable power delivery while maintenance teams service or replace the primary UPS unit.
Key Features
- Hardwired input and output connections for reliable power transfer
- Four NEMA L6-30R outlets for multiple equipment connections
- 0U rear rack mounting design saves valuable cabinet space
- Compatible with Eaton 9PX UPS systems 8kVA to 11kVA
- Maintenance bypass functionality enables service without downtime
- Enterprise-grade construction for data center environments
Technical Specifications
| Specification |
Details |
| Part Number |
MBP11K208G2 |
| Manufacturer |
Eaton |
| Product Series |
9PX Gen 2 |
| Compatibility |
8kVA to 11kVA Eaton 9PX UPS |
| Output Outlets |
Four NEMA L6-30R |
| Mounting |
0U Rear Rack Mount |
| Connections |
Hardwired Input/Output |
| Application |
Maintenance Bypass for UPS Systems |
Frequently Asked Questions
What is a maintenance bypass and why do I need one?
A maintenance bypass allows you to service or replace your UPS without interrupting power to connected equipment. The Eaton 9PX Gen 2 maintenance bypass transfers load directly to utility power during maintenance, keeping critical systems operational.
How many devices can connect to the Eaton 9PX Gen 2 bypass?
The unit provides four NEMA L6-30R outlets, allowing multiple equipment connections. Each outlet supports high-capacity power distribution suitable for servers and network infrastructure in data center environments.
Does the maintenance bypass require additional rack space?
No. The 0U rear rack mounting design means the bypass unit mounts behind existing equipment without consuming vertical rack units, preserving valuable cabinet real estate in your data center.
Is the Eaton 9PX Gen 2 bypass compatible with all UPS models?
The MBP11K208G2 is specifically designed for Eaton 9PX UPS systems rated 8kVA to 11kVA. Verify your UPS model and capacity before ordering to ensure compatibility.
