This Eaton 9PX 700VA rackmount UPS is perfect for small office IT environments, network administrators, and branch office managers requiring reliable double conversion power protection for networking equipment and small servers. Our server rack battery backup delivers:
-
True double conversion technology providing continuous power conditioning and zero transfer time protection
-
Pure sine wave output ensuring compatibility with sensitive electronic equipment
-

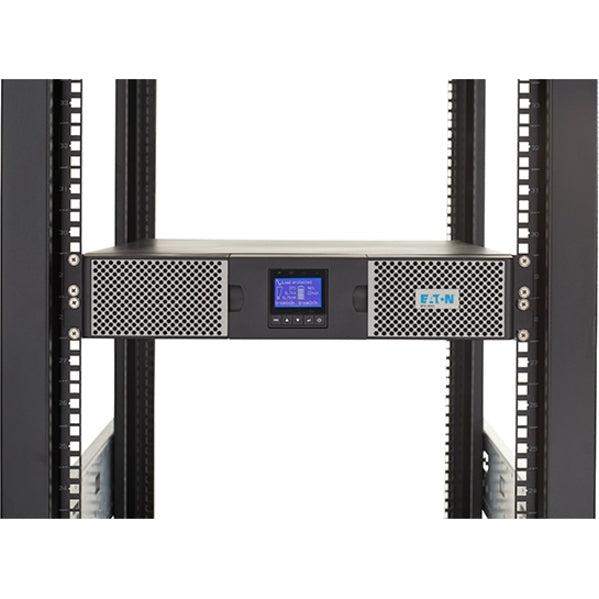

2U rackmount form factor maximizing space efficiency in network cabinets and server racks
-
Enterprise-grade power protection designed for mission-critical applications in compact installations
Key Features
-
Double conversion topology delivering continuous power conditioning and complete isolation from input power anomalies
-
Pure sine wave output ensuring compatibility with all types of electronic equipment and servers
-
2U rack mount design integrating seamlessly into standard 19-inch network and server racks
-
High efficiency operation reducing heat generation and operating costs
-

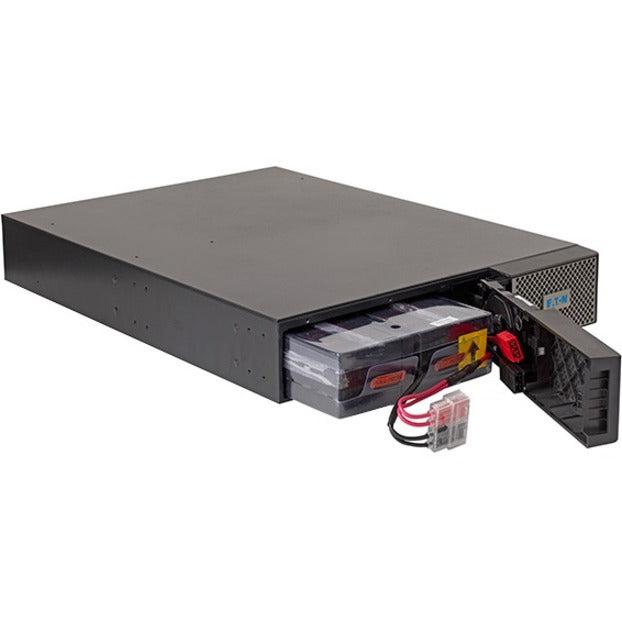

Hot-swappable battery design enabling maintenance without powering down connected equipment
-
Advanced LCD display providing comprehensive UPS status monitoring and configuration
-
Network management capabilities supporting SNMP monitoring and remote administration
-
Intelligent battery management maximizing battery life through temperature compensation
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
9PX700RT |
| Product Type |
9PX Series Double Conversion Rackmount UPS |
| Capacity |
700VA / 630W |
| Form Factor |
Rackmount 2U (19-inch) |
| Topology |
Double Conversion Online |
| Input Voltage |
120V AC |
| Input Connection |
5-15P Plug |
| Output Voltage |
120V AC ±1% |
| Output Waveform |
Pure Sine Wave |

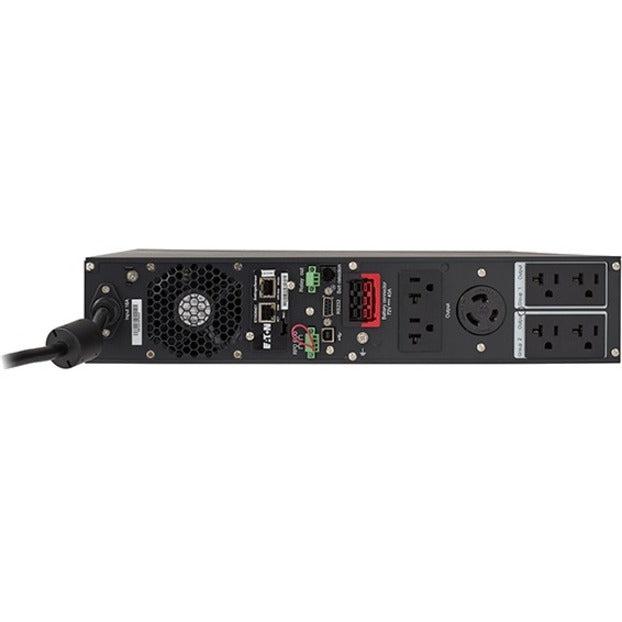

| Output Outlets |
8x 5-15R NEMA |
| Transfer Time |
Zero (Online Operation) |
| Efficiency |
Up to 94% (online mode) |
| Runtime |
6.7 min at full load, 22 min at half load |
| Battery Type |
Sealed Lead Acid (VRLA) |
| Network Management |
Optional network card compatible |
| Communication |
USB, Serial, Optional SNMP |
| Display |
LCD with backlight |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Certifications |
UL, FCC Part 15 Class A, CE, ENERGY STAR |
| Dimensions |
3.44" H x 17.32" W x 16.73" D |
| Weight |
39.7 lbs (18 kg) |
Frequently Asked Questions
Q: What are the advantages of double conversion technology in this compact UPS?
A: Double conversion technology provides continuous power conditioning by converting AC input to DC and back to AC, ensuring pure sine wave output with zero transfer time. This eliminates all power disturbances, voltage fluctuations, and frequency variations that can damage sensitive networking equipment or cause data corruption.
Q: How does the 2U form factor benefit small office installations?
A: The 2U rack mount design maximizes space efficiency in network cabinets and small server rooms. This Eaton UPS provides enterprise-grade power protection while occupying minimal rack space, making it ideal for branch offices and small business environments with limited rack real estate.
Q: What type of equipment can this UPS protect?
A: This server rack battery backup is designed to protect networking switches, routers, small servers, workstations, and other sensitive electronic equipment. The pure sine wave output ensures compatibility with all equipment types, including those with switching power supplies and motors.
Q: How does the battery backup feature work during power outages?
A: During power outages, the battery backup system seamlessly maintains power to connected equipment. With 6.7 minutes of runtime at full load and up to 22 minutes at half load, the UPS provides sufficient time for graceful shutdowns or short-term power bridging during brief outages.
Eaton 9PX 700VA 2U rackmount UPS with double conversion, pure sine wave output, and battery backup for server and network protection.
