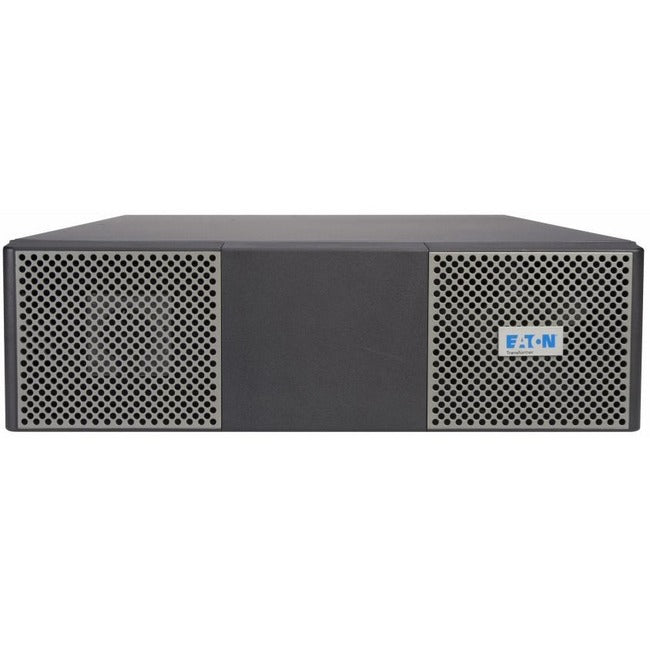

Eaton 9PX 5kVA 120V Stepdown Transformer - 18 NEMA 5-20R Outlets, 60 Hz, L6-30P Input, 3 ft. Cord, 3U Rack/Tower
208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output This 5kVA Stepdown Transformer converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features 18 NEMA 5-20R outlets (two sets of nine outlets) for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Resettable 20A circuit breakers protect your 120V equipment against overload conditions. The 9PXTFMR5 works with Eaton's 9PX5K, 9PX6K, 9PX3K3UN and 8kVA to 11kVA 9PX UPS systems. Versatile Installation Options You can mount the 9PXTFMR5 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The three-foot power cord with L6-30P plug connects to a compatible AC outlet.
- 3 ft. power cord with L6-30P input plug connects to compatible AC source
- Resettable circuit breakers protect mission-critical equipment from hazardous overloads

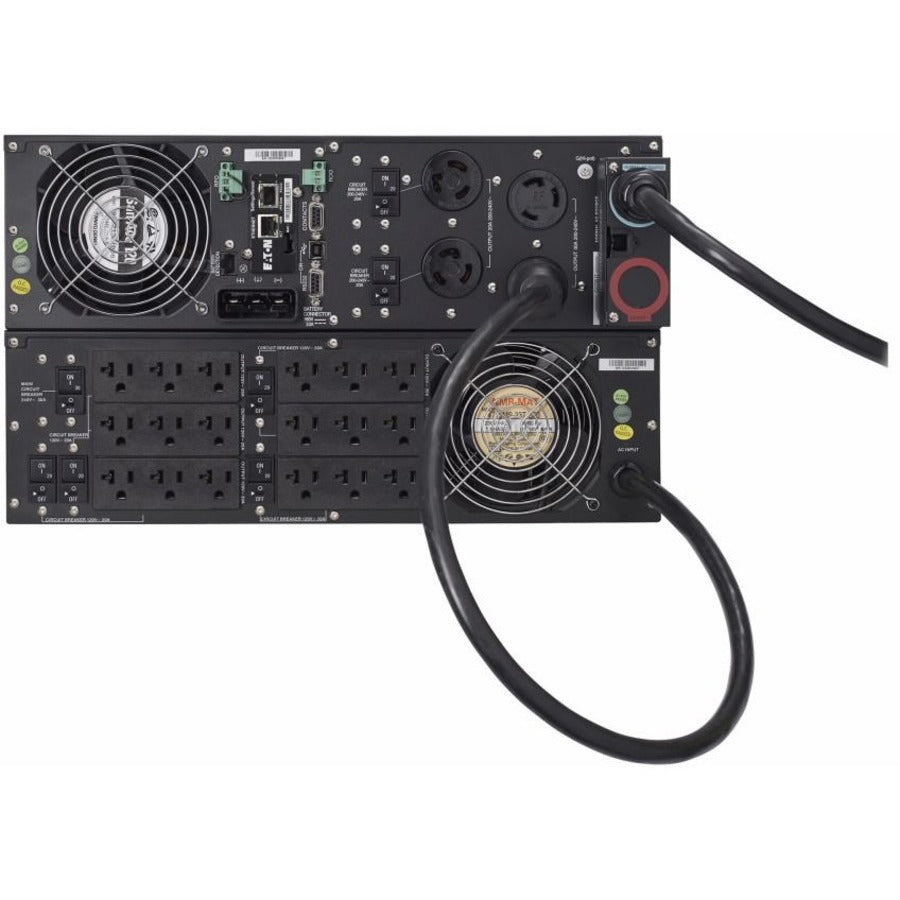

- 18 NEMA 5-20R 120V outlets for connecting components with 5-15P or 5-20P plugs
- Converts 208V AC input into 120V output for powering low-voltage equipment
Product Type: Step Down Transformer
Country Of Origin: Philippines
Rack Height: 3U
Brand Name: Eaton
Form Factor: Rack-mountable
Manufacturer: Eaton Corporation
Product Name: 3U 5kVA 120V Stepdown Transformer
Manufacturer Part Number: 9PXTFMR5
Manufacturer Website Address: http://www.eaton.com
Package Contents:
- 3U 5kVA 120V Stepdown Transformer
- 4-post Rail Kit
- Quick Start Guide
- Joining Brackets for Tower Configuration
- EBM Connector Cable
Limited Warranty: 2 Year
Weight (Approximate): 95 lb
