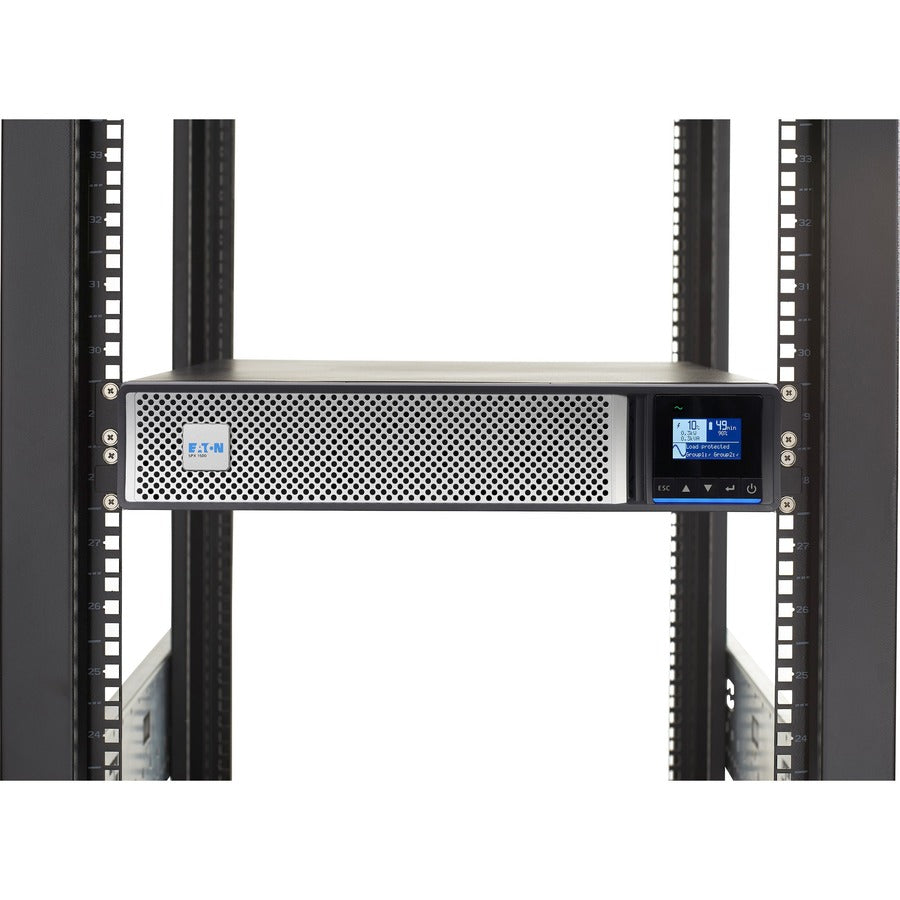

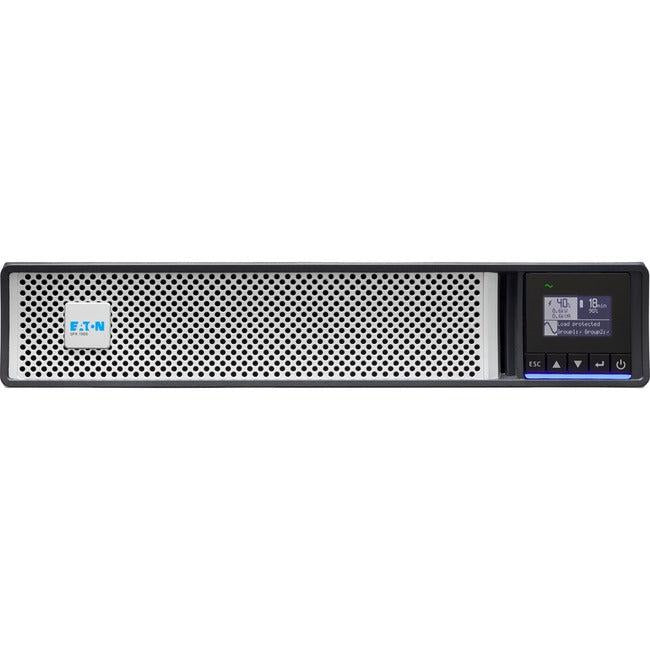

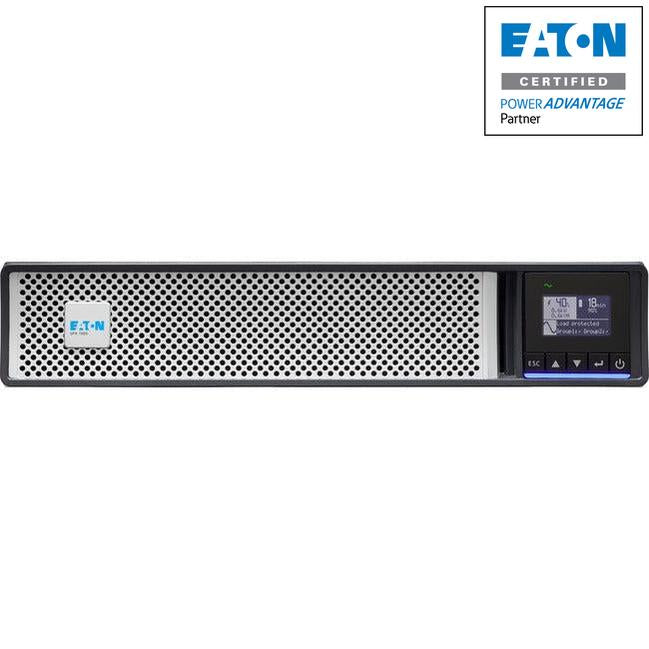

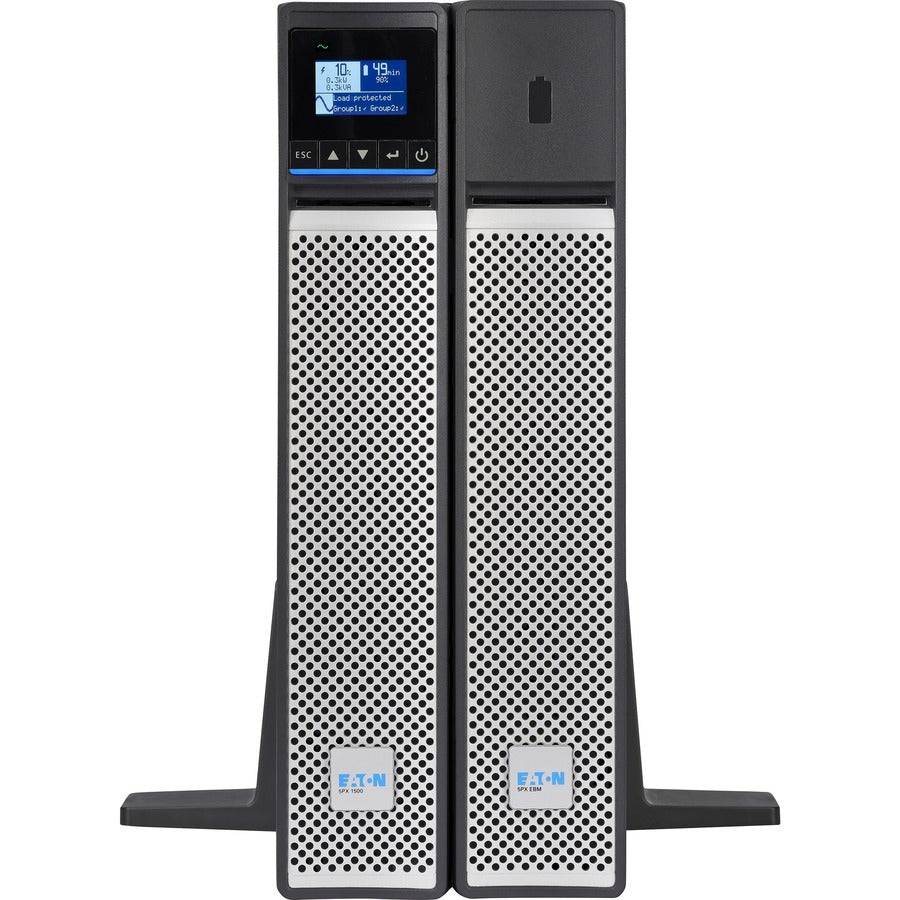

Eaton 5PX G2 UPS 1500VA 1500W 208V Network Card Optional 2U Rack/Tower UPS
1.5kVA/1.5kW/208V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This 5PX G2 rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The 5PX1500HRTG2 is ideal power management for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four external battery modules (5PXEBM48RTG2, sold separately) for hours of extended runtime.
Optional Gigabit Network Interface Offers 24/7 Remote Access
The NETWORK-M2 network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.
C13 Outlets Protect Your Connected Components
Eight managed C13 outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
Rotating LCD Interface and LED Status Bar Keep You Informed at a Glance
The high-contrast front-panel LCD provides detailed alarms and notifications to help diagnose any issues. The lower tri-color LED bar monitors UPS status: a blue light means all is well, a yellow light means your attention is needed, and a red light indicates a critical issue that demands immediate action. The interface rotates to accommodate both rack-mount and tower configurations.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components.
- Provides complete battery backup/power protection for servers/switches/data storage and other critical equipment
- Protects equipment against blackouts/brownouts/transient surges/line noise
- LCD interface and LED status bar provide quick and clear visual diagnostics
- Enables mass firmware updates without shutting down connected equipment
- Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
- Optional extended battery modules allow extended runtime to keep equipment running
- 3 Year Eaton warranty covers UPS and batteries
Product Type: Line-interactive UPS
Environmentally Friendly: Yes
Environmental Certification: RoHS
Energy Star: Yes
Product Color: Black
Product Series: 5PX G2
Rack Height: 2U
Brand Name: Eaton
Form Factor: Rack-mountable
Manufacturer: Eaton Corporation
Product Name: 5PX G2 UPS
Manufacturer Part Number: 5PX1500HRTG2
Manufacturer Website Address: http://www.eaton.com
Package Contents:
- 5PX G2 UPS
- Tower Pedestal Feet
- Four-post Rail Kit
- Quick Start Guide
- Safety Guide
- USB Cable
- RS-232 Cable
- 2 x IEC C13 to IEC C14 Jumper Cables
Limited Warranty: 3 Year
Weight (Approximate): 49.40 lb
