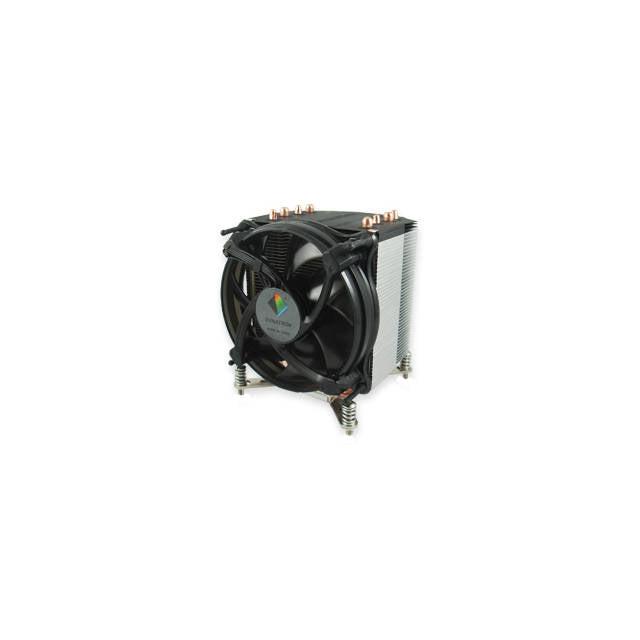

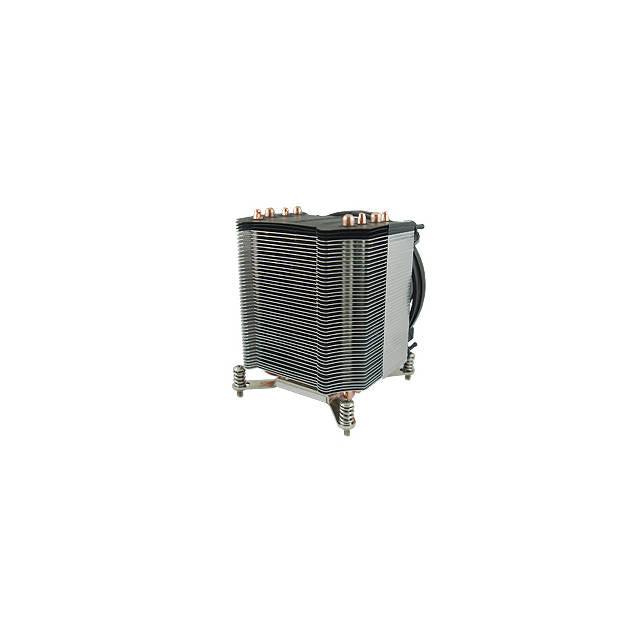

Name: Dynatron R17 3U Server Cpu Fan For Intel Lga2011
Brand: Dynatron
SKU: R17
Price: 80.00 CAD
Availability: OutOfStock

Dynatron R17 3U Server Cpu Fan For Intel Lga2011

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Mfr Part Number: R17
CPU Application: LGA2011, Supports Intel Sandy Bridge Romley-EP/EX Processors up to TDP 160 Watts Overclocking
Material: Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
Fan:
- Rated Speed:
  - At Duty Cycle 0~20%: 1000 200 RPM
  - At Duty Cycle 50%:1800 10% RPM
  - At Duty Cycle 100%: 2500 10% RPM
- Bearing: Double-Ball
- Rated Voltage: 12V
- Rated Input Power:
  - At Duty Cycle 0~20%: 0.96 W
  - At Duty Cycle 50%:1.44 W
  - At Duty Cycle 100%:3.0 W
- Rated Airflow:
  - At Duty Cycle 0~20%:17.34 CFM
  - At Duty Cycle 50%:31.21 CFM
  - At Duty Cycle 100%:43.36 CFM
- Rated AcousticalLevel:
  - At Duty Cycle 0~20%:17.0 dBA
  - At Duty Cycle 50%:24.78 dBA
  - At Duty Cycle 100%:31.92 dBA
- Rated StaticPressure:
  - At Duty Cycle 0~20%:0.48 mm-H₂O
  - At Duty Cycle 50%:1.55 mm-H₂O
  - At Duty Cycle 100%:3.0 mm-H₂O
- Lead Wire Pin Out:
  - Pin1 - Ground (-)
  - Pin2 - Power (+)
  - Pin3 - Signal (Tachometer Output)
  - Pin4 - PWM Control
Dimensions:
- Fan: 92.0 x 92.0 x 25.0 mm
- Overall:91.0 x91.0 x 110.0 mm
Weight: 530.0 5.0 g
RoHS Compliant

General Information

UPC	855700013160

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.

Dynatron R17 3U Server Cpu Fan For Intel Lga2011

Description

Dynatron R17 3U Server Cpu Fan For Intel Lga2011
