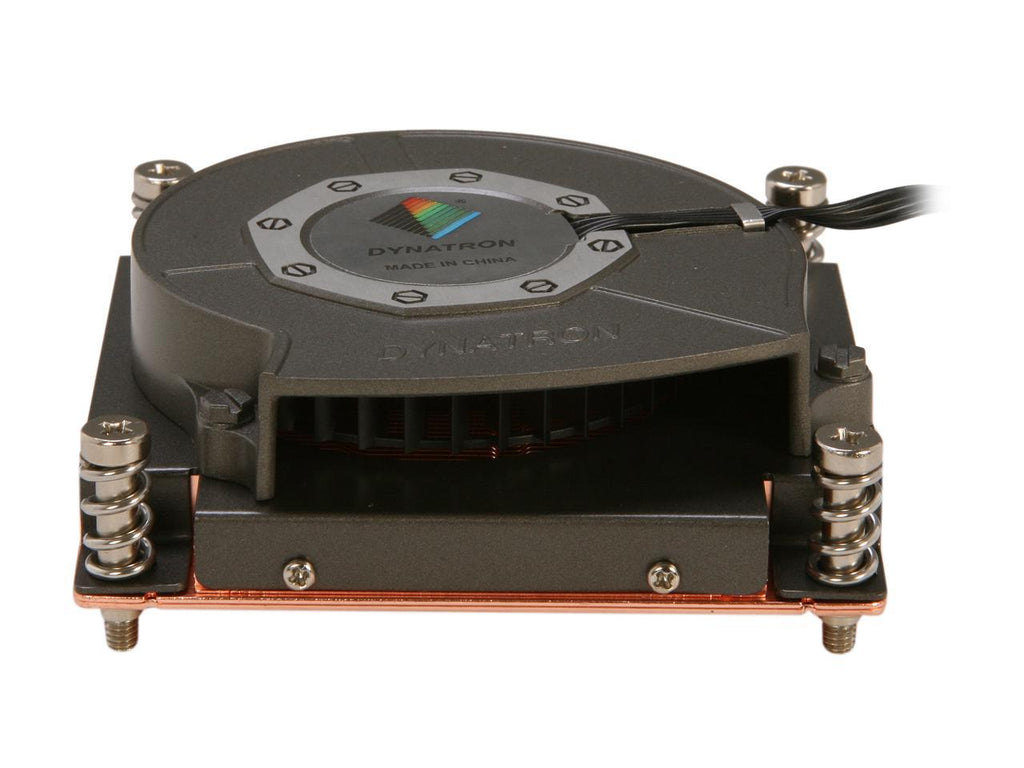

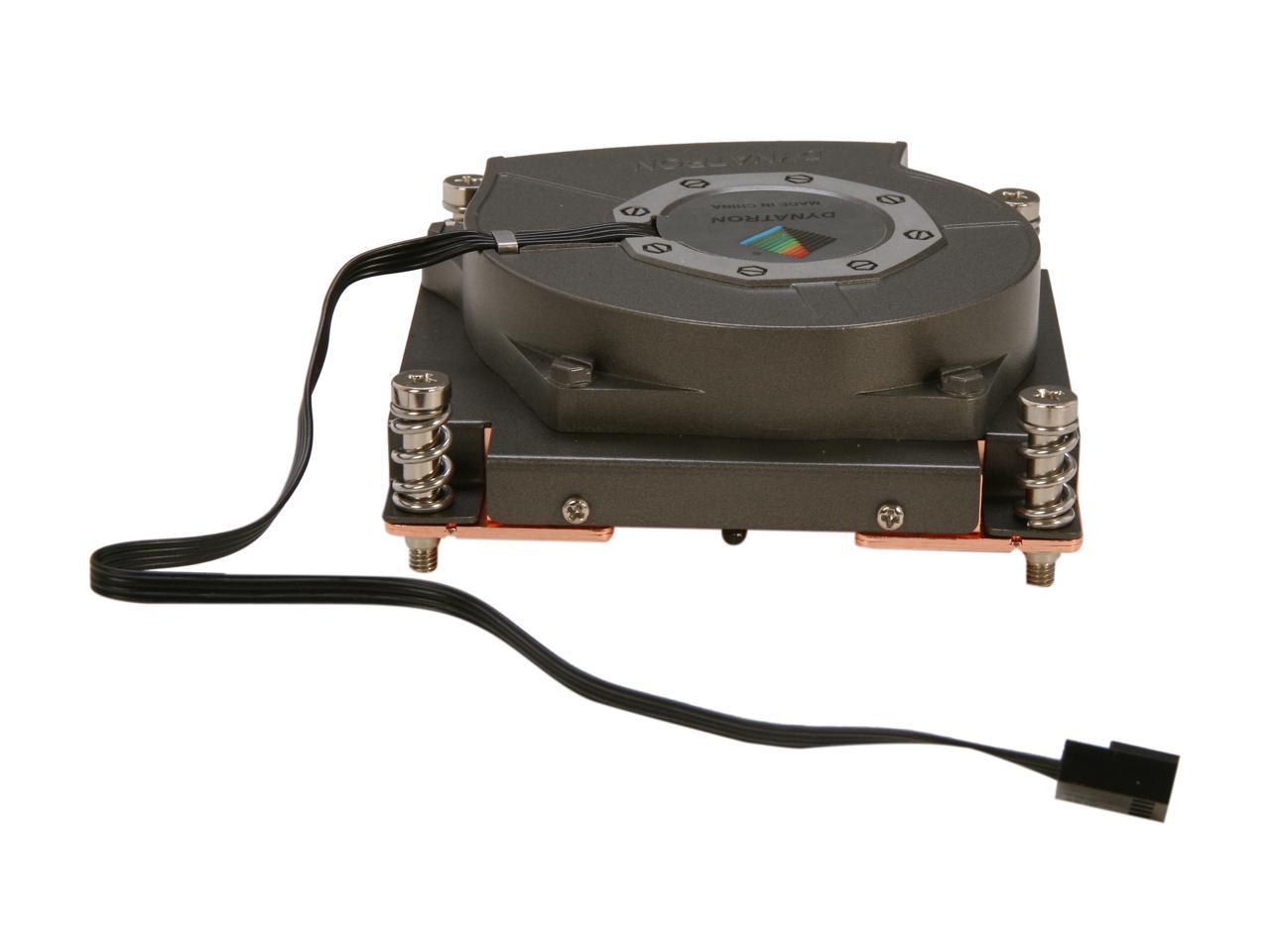

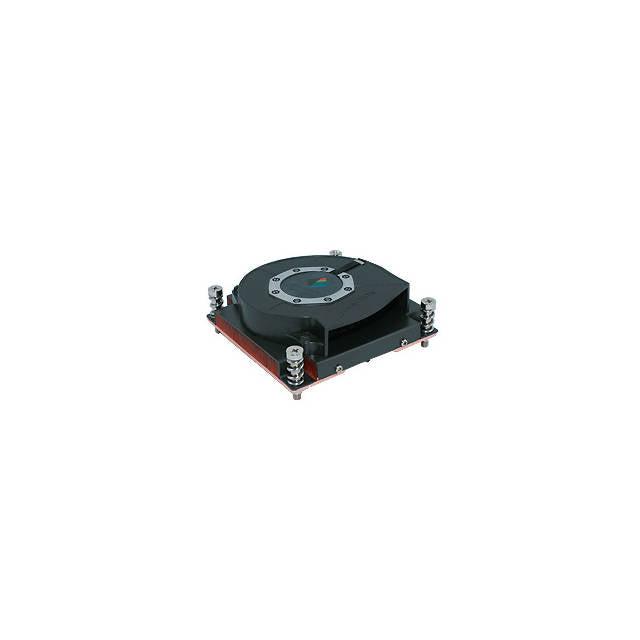

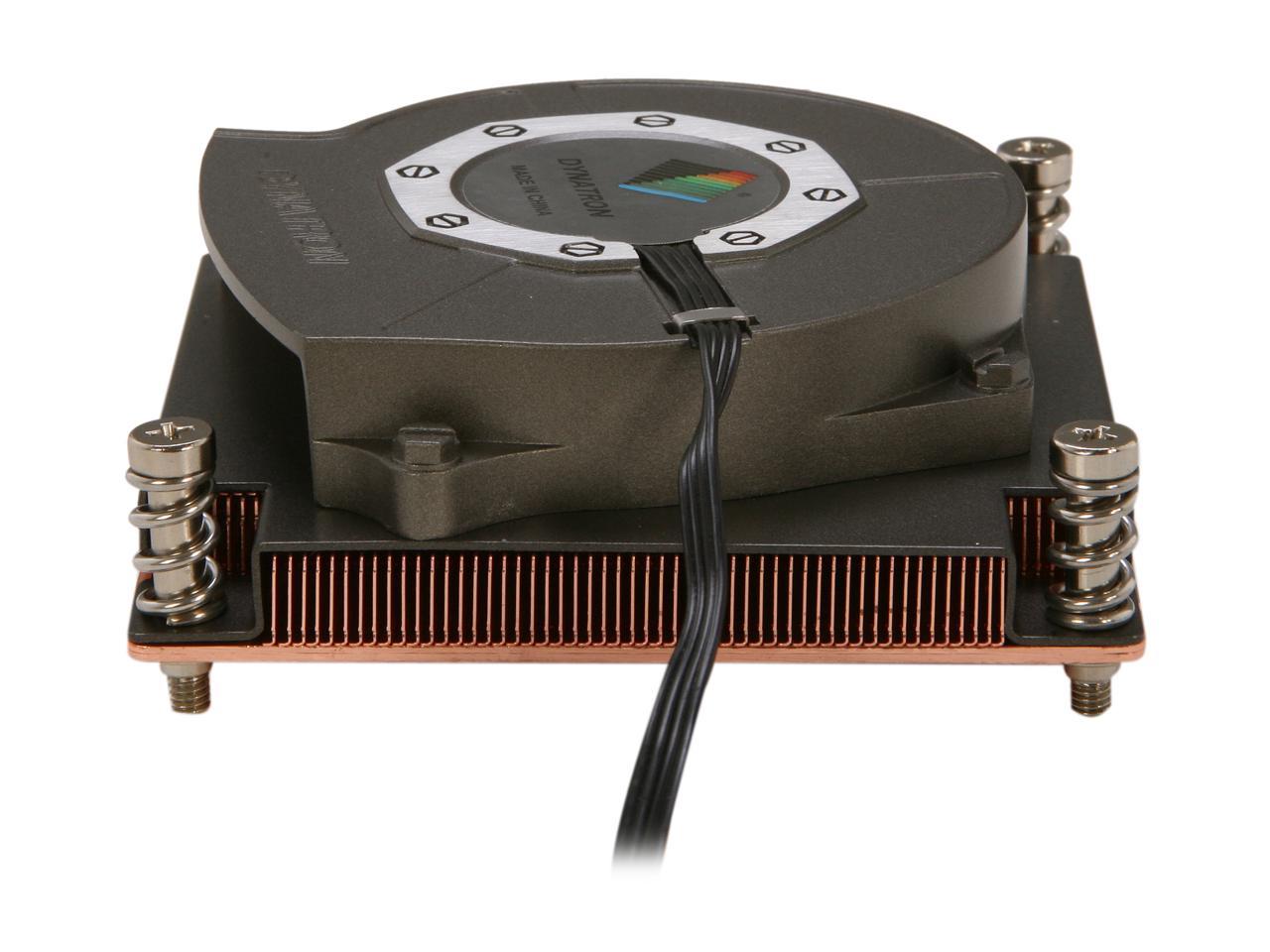

Name: Dynatron R16 1U Server Cpu Fan For Intel Lga2011
Brand: Dynatron
SKU: R16
Price: 94.00 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Mfr Part Number: R16
CPU Application: LGA2011, Supports Intel Sandy Bridge EP/EX Processors up to 150 Watts
Material: Vapor Chamber Base with Copper Stacked Fin
Fan:
- Rated Speed:
  - At Duty Cycle 0~20%: 1000 10% RPM
  - At Duty Cycle 50%:3500 10% RPM
  - At Duty Cycle 100%: 6000 RPM Min
- Bearing: Double-Ball
- Rated Voltage: 12V
- Rated Input Power:
  - At Duty Cycle 0~20%: 0.60 W
  - At Duty Cycle 50%:3.84 W
  - At Duty Cycle 100%:14.40 W
- Rated Airflow:
  - At Duty Cycle 0~20%:6.5 CFM
  - At Duty Cycle 50%:11.2 CFM
  - At Duty Cycle 100%:19.1 CFM
- Rated AcousticalLevel:
  - At Duty Cycle 0~20%:21.5 dBA
  - At Duty Cycle 50%:43.0 dBA
  - At Duty Cycle 100%:55.8 dBA
- Rated StaticPressure:
  - At Duty Cycle 0~20%:2.27 mm-H₂O
  - At Duty Cycle 50%:18.56 mm-H₂O
  - At Duty Cycle 100%:54.50 mm-H₂O
- Lead Wire Pin Out:
  - Pin1 - Ground (-)
  - Pin2 - Power (+)
  - Pin3 - Signal (Tachometer output)
  - Pin4 - PWM Control
Dimensions:
- Fan: 80.0 x 80.0 x 15.0 mm
- Overall:90.0 x90.0 x 28.0 mm
Weight: 390.0 5.0 g
RoHS Compliant

General Information

Manufacturer	DIRECTV
Manufacturer Part Number	R16
Manufacturer Website Address	http://www.directv.com
Brand Name	DIRECTV
Product Model	R16
Product Name	DIRECTTV Plus R16 160GB Digital Video Recorder
Product Type	Digital Video Recorder
UPC	855700013153

Miscellaneous

Package Contents	DIRECTTV Plus R16 160GB Digital Video Recorder Composite (RCA) Cable Access Card Phone Cord Power Cord Remote Control

Dynatron R16 1U Server Cpu Fan For Intel Lga2011

Description
