✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]
- Mfr Part Number: K985
- CPU Application: Intel Socket 1156 for 3U and up Support Intel Core i3 530 / 540, Core i5 650 / 650 / 660 / 661 / 670 / 750; Xeon Processor 3400 Series; Core i7 870 / 860; Intel Socket 1155 3U and up Support Intel Sandy Bridge Xeon Processors 1220/ 1220L/ 1225/ 1230/ 1235/ 1240/ 1245/ 1260L/ 1270/ 1275/ 1280
- Heatsink Material: Aluminum Radial Fin Heatsink with Copper Inserted
- Fan:
- Speed:
- At Duty Cycle 0-20%: 700 rpm
- At Duty Cycle 50%: 1400 rpm
- At Duty Cycle 100%: 2500 rpm
- Bearing: Ball Bearing
- Air Flow:
- At Duty Cycle 0-20%: 14.98 cfm
- At Duty Cycle 50%: 29.9 cfm
- At Duty Cycle 100%: 46.96 cfm
- Noise Level:
- At Duty Cycle 0-20%: 14.7 dBA
- At Duty Cycle 50%: 18.5 dBA
- At Duty Cycle 100%: 29.85 dBA
- Air Pressure:
- At Duty Cycle 0-20%: 0.29 mm-H2O
- At Duty Cycle 50%: 1.07 mm-H2O
- At Duty Cycle 100%: 2.977 mm-H2O
- Rated Voltage: 12 V
- Power:
- At Duty Cycle 0-20%: 0.72 W
- At Duty Cycle 20%: 1.08 W
- At Duty Cycle 100%: 3.6 W

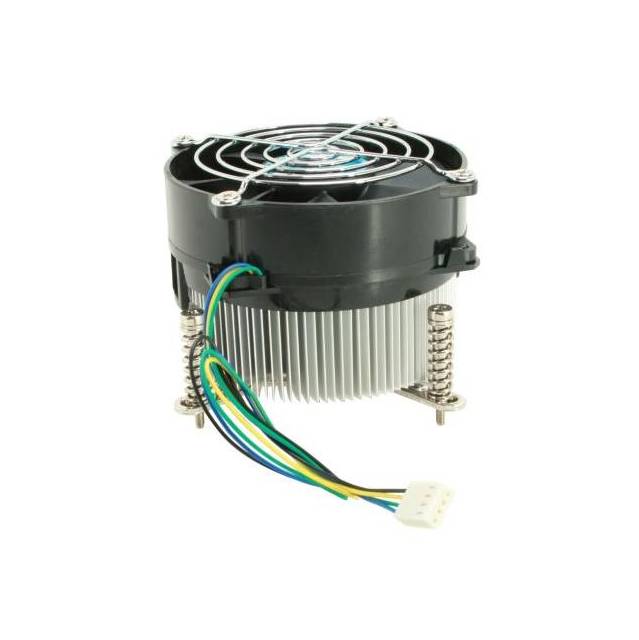

- Lead Wire Pin Out: Pin1-Black (-); Pin2-Yellow (+); Pin3-Green (Techometer/Signal output); Pin4-Blue (PWM)
- Fan Dimensions: 92.0 x 92.0 x 25.0 mm
- Overall Dimensions: 106.0 x 106.0 x 72.6 mm
- Weight: 500.0 g
- RoHS Compliant
