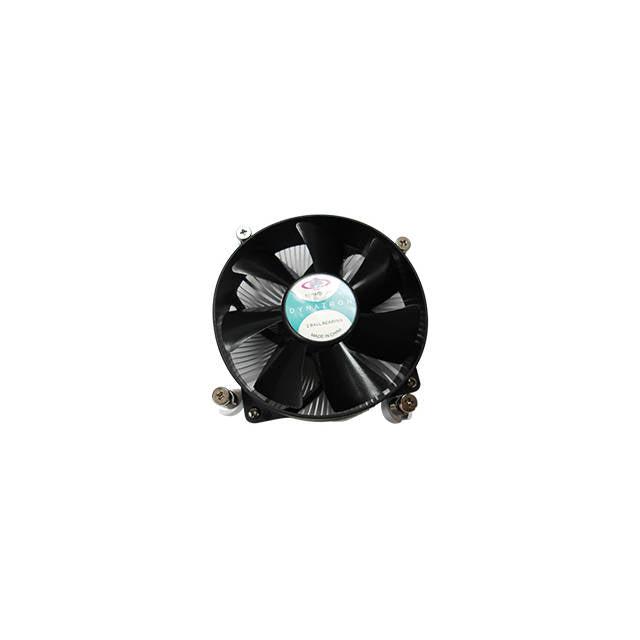

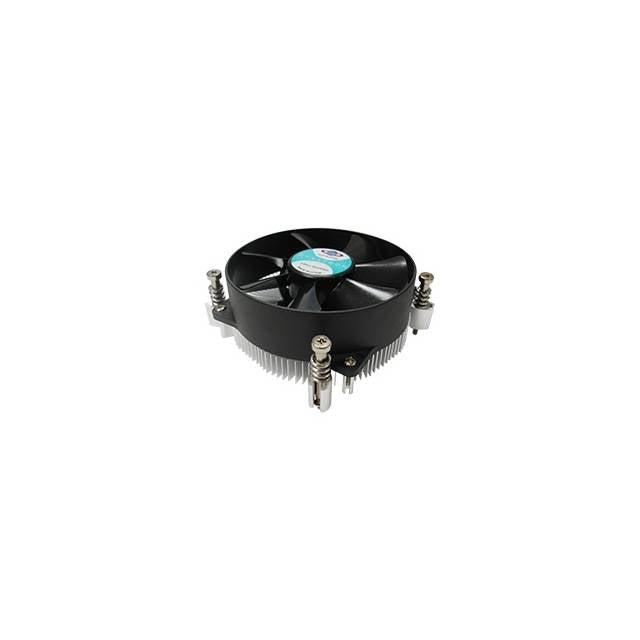

Name: Dynatron K5 1.5U&Up Server Cpu Fan For Intel Lga1155/1156/1150
Brand: Dynatron
SKU: K5
Price: 42.00 CAD
Availability: InStock

Dynatron K5 1.5U&Up Server Cpu Fan For Intel Lga1155/1156/1150

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Mfr Part Number: K5
Socket Type: LGA 1150/ 1155/ 1156
CPU Application: LGA1155 Supports Intel 3rd Generation Core i3/ i5/ i7 Desktop Processors, LGA1156 Supports Previous Generation Core i3/ i5/ i7 Desktop Processors
Material: Aluminum 6063-T5 extruded radial fin heatsink
Fan:
- Rated Speed:
  - At Duty Cycle 20%: 1000 RPM
  - At Duty Cycle 50%: 1800 RPM
  - At Duty Cycle 100%: 2500 RPM
- Bearing: Double-Ball
- Rated Voltage: 12V
- Power:
  - At Duty Cycle 20%: 0.72 W
  - At Duty Cycle 50%: 1.80 W
  - At Duty Cycle 100%: 3.60 W
- Air Flow:
  - At Duty Cycle 20%: 14.98 CFM
  - At Duty Cycle 50%: 33.80 CFM
  - At Duty Cycle 100%: 46.96 CFM
- Noise Level:
  - At Duty Cycle 20%: 14.7 dBA
  - At Duty Cycle 50%: 22.7 dBA
  - At Duty Cycle 100%: 29.8 dBA
- Air Pressure:
  - At Duty Cycle 20%: 0.290 mm-H₂O
  - At Duty Cycle 50%: 1.544 mm-H₂O
  - At Duty Cycle 100%: 2.98 mm-H₂O
- Lead Wire Pin Out:
  - Pin1 - Black (-)
  - Pin2 - Yellow (+)
  - Pin3 - Green (Techometer / Signal Output)
  - Pin4 - Blue (PWM)
Dimensions:
- Fan: 92.0 x 25.0 mm
- Overall: 92.0 x 41.0 mm
Weight: 200.0 g
RoHS Compliant

General Information

Manufacturer	Designed Security, Inc
Manufacturer Part Number	K5
Manufacturer Website Address	http://www.dsigo.com
Brand Name	DSI
Product Model	K5
Product Name	K5 Blank Key
Product Type	Blank Key
UPC	855700010121
