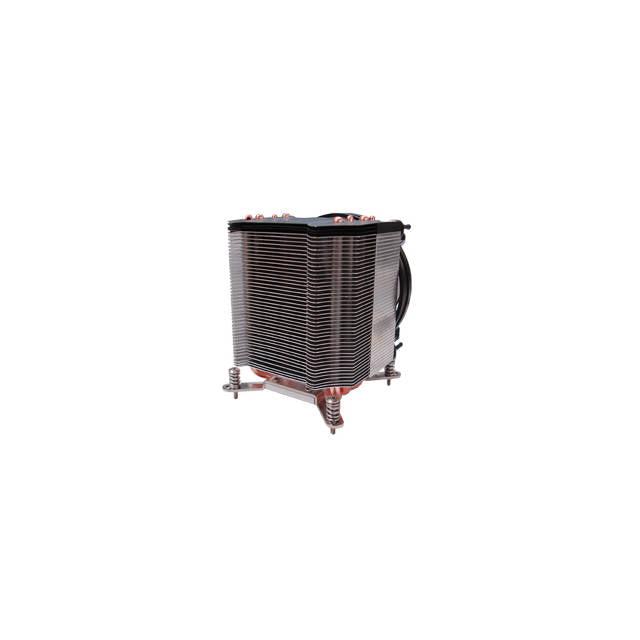

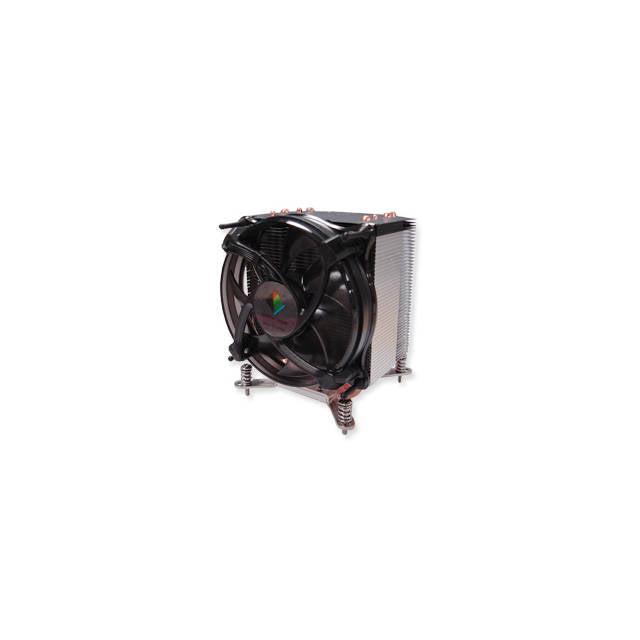

Name: Dynatron K17 3U&Up&Workstation Server Cpu Fan For Intel Lga1155/1156/1150
Brand: Dynatron
SKU: K17
Price: 79.00 CAD
Availability: InStock

Dynatron K17 3U&Up&Workstation Server Cpu Fan For Intel Lga1155/1156/1150

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Mfr Part Number: K17
Socket Type: LGA 1150/ 1155/ 1156;
CPU Application: Supports Intel Xeon Server Processor E3 Series, Intel Core i7 Desktop Processor 2600, 2600K, 880, 875K, 870, 870S, 860, 860S, Intel Core i5 Desktop Processor 2500, 2400, 2310, 2300, 760, 750, 750S, 680, 670, 661, 660, 655K, 650, Intel Core i3 Desktop Processor 2100, 560, 550, 540, 530, Pentium Desktop Processor G850, G840, G6960, G6950, G620, G620T
Material: Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
Fan:
- Rated Speed:
  - At Duty Cycle 20%: 1000 RPM
  - At Duty Cycle 50%:1800 RPM
  - At Duty Cycle 100%: 2500 RPM
- Bearing:Double-Ball
- Rated Voltage: 12V
- Rated Input Power:
  - At Duty Cycle 20%: 0.96W
  - At Duty Cycle 50%: 1.44W
  - At Duty Cycle 100%:3.00 W
- Rated Airflow:
  - At Duty Cycle 20%:17.34 CFM
  - At Duty Cycle 50%:31.21 CFM
  - At Duty Cycle 100%: 43.36CFM
- Rated AcousticalLevel:
  - At Duty Cycle 20%:17.0 dBA
  - At Duty Cycle 50%:24.78 dBA
  - At Duty Cycle 100%:31.92 dBA
- Rated StaticPressure:
  - At Duty Cycle 20%:0.48 mm-H₂O
  - At Duty Cycle 50%:1.55 mm-H₂O
  - At Duty Cycle 100%:3.00 mm-H₂O
- Lead Wire Pin Out:
  - Pin1 - (-)
  - Pin2 - (+)
  - Pin3 - (Techometer /Signal Output)
  - Pin4 - (PWM)
Dimensions:
- Fan:92.0 x 25.0 mm
- Overall:91.0 x91.0 x 110.0 mm
Weight:530.0 5.0 g
RoHS Compliant

General Information

Manufacturer	Dynatron Corporation
Manufacturer Part Number	K17
Manufacturer Website Address	http://www.dynatron-corp.com
Brand Name	Dynatron
Product Model	K17
Product Name	K17 Cooling Fan/Heatsink
Product Type	Cooling Fan/Heatsink
UPC	855700010220

Height	4.3"
Width	3.6"
Depth	3.6"
Weight (Approximate)	2.17 lb

Environmentally Friendly	Yes
Environmental Certification	RoHS

Dynatron K17 3U&Up&Workstation Server Cpu Fan For Intel Lga1155/1156/1150

Description

Dynatron K17 3U&Up&Workstation Server Cpu Fan For Intel Lga1155/1156/1150
