✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

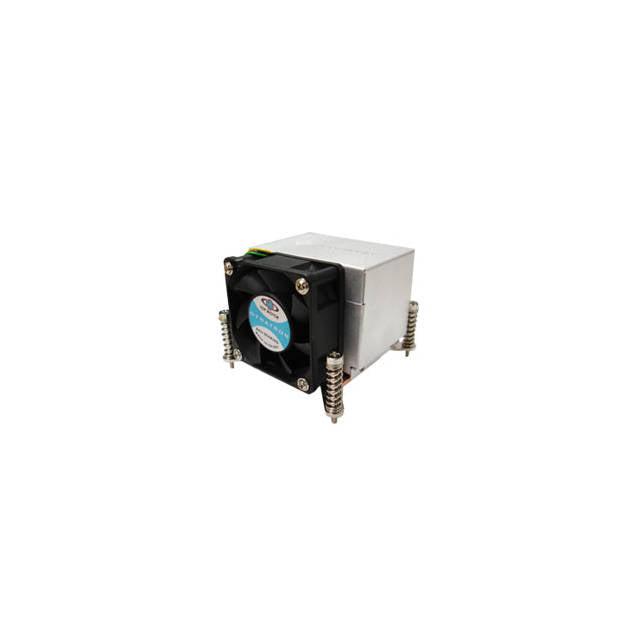

- Mfr Part Number: G666
- CPU Application: Intel Xeon 5500 Series Nehalem EP Processor Socket 1366 for 2U Server & Up
- Heat Sink Material: Copper Base & Aluminum Fins with Heatpipes embeded
- Fan:
- Speed: 1600 ~ 8000 rpm
- Bearing: Double Ball Bearing
- Rated Voltage: 12 V
- Power: 0.6 ~ 7.2 W
- Air Flow: 8.75 ~ 43.75 cfm
- Noise Level: 16.85 ~ 51.0 dBA
- Air Pressure: 0.0279 ~ 0.6972 inch-H2O
- Lead Wire Pin Out: Pin1-Black (-); Pin2-Yellow (+); Pin3-Green (Techometer/Signal output); Pin4-Blue (PWM)
- Dimensions:
- Fan: 60 x 60 x 25 mm
- Overall: 90 x 90 x 64 mm
- Weight: 490 g
- Backplate is not included
