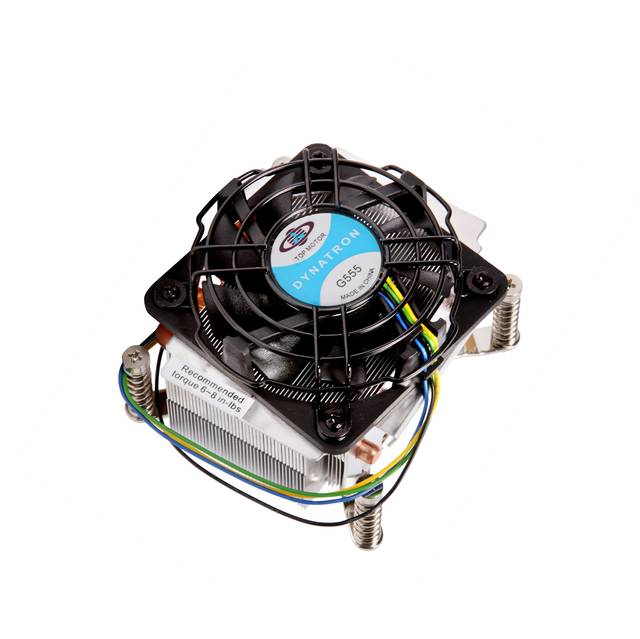

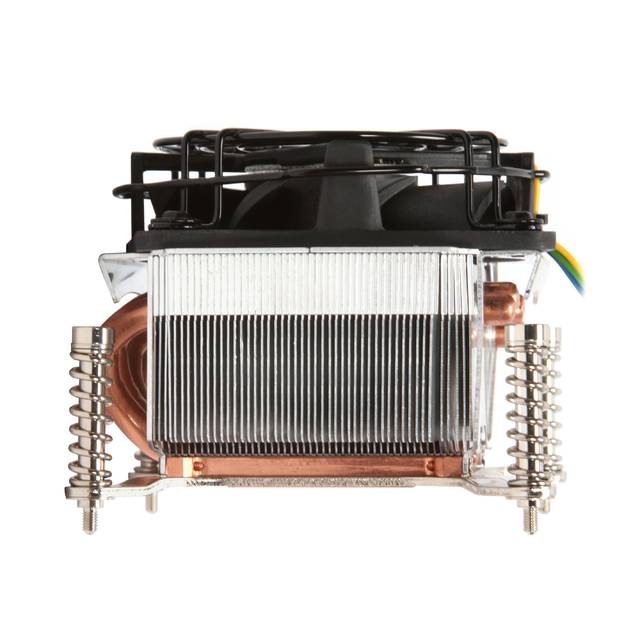

Name: Dynatron G555 77X77X20 2X Ball Bearing Case Fan
Brand: Dynatron
SKU: G555
Price: 85.00 CAD
Availability: OutOfStock

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Mfr Part Number: G555
Features:
- For Intel Nehalem EP processor Socket 1366
- Intel Power-on thermal solution for Tylersburg EP Platform Nehalem EP processpor
- Active cooler for 2U Servers
- RoHS compliant
Overall Specification:
- Dimension: 94.0mm x 89.5mm x 64.0mm
- Weight: 460g 5g

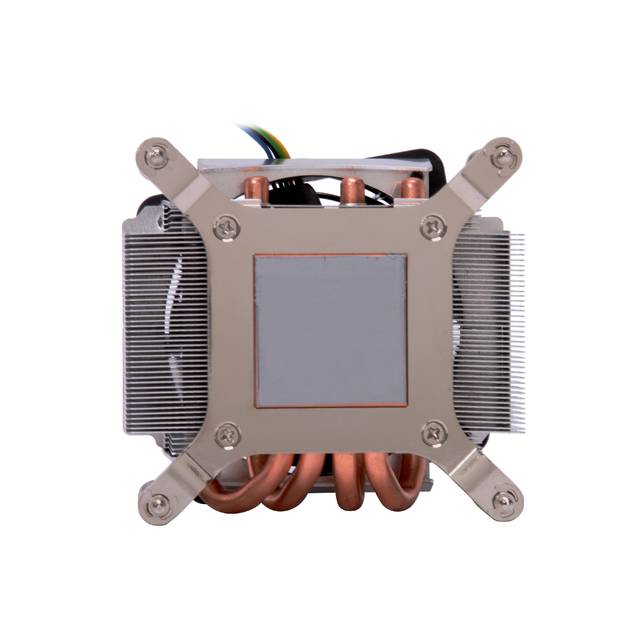

- Material: Copper Base & Aluminum Fins with heatpipes embedded
- Screw-on retention
- Backplate excluded
Rated Speed:
- At Duty Cycle 0%: 1000+ 10%RPM
- At Duty Cycle 20%: 1000+ 10%RPM
- At Duty Cycle 100%: 5500+ 10%RPM
Bearing: 2X Ball
Rated Voltage: 12V
Power:
- At Duty Cycle 0%: 0.54W
- At Duty Cycle 20%: 0.54W
- At Duty Cycle 100%: 9W
Maximum Airflow:
- At Duty Cycle 0%: 8.36 cfm
- At Duty Cycle 20%: 8.36 cfm
- At Duty Cycle 100%: 53.90 cfm
Acoustical Noise:
- At Duty Cycle 0%: 20.6 dBA
- At Duty Cycle 20%: 20.6 dBA
- At Duty Cycle 100%: 51.4dBA
Lead Wire Pin Out:
- Pin#1-Black(-)
- Pin#2- Yellow(+)
- Pin#3- Green( Tachometer/ Signal Output)
- Pin#4- Blue (PWM)
Dimensions: 77.0mm x 77.0mm x 20.0mm

General Information

Manufacturer	Gitzo
Manufacturer Part Number	G555
Manufacturer Website Address	http://www.gitzo.com
Brand Name	Gitzo
Product Model	G555
Product Name	00 G555 Microphone Boom Pole
Product Type	Boom
UPC	855700004014

Product Color	Black
Weight (Approximate)	11.20 oz

Dynatron G555 77X77X20 2X Ball Bearing Case Fan

Description
