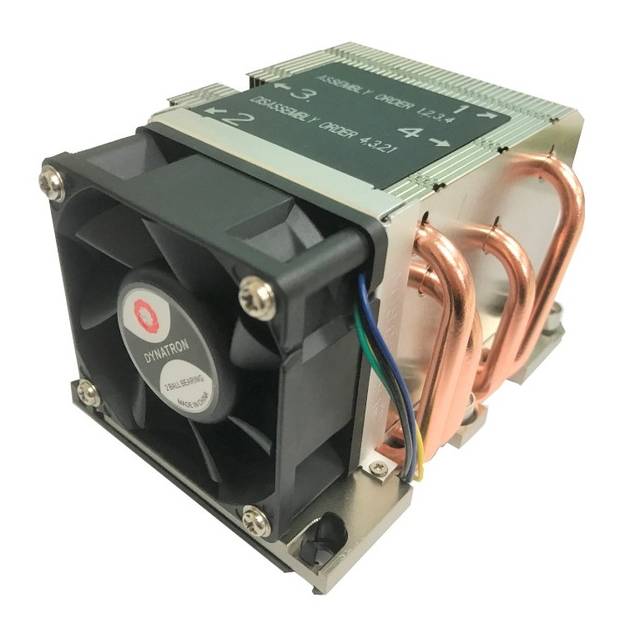

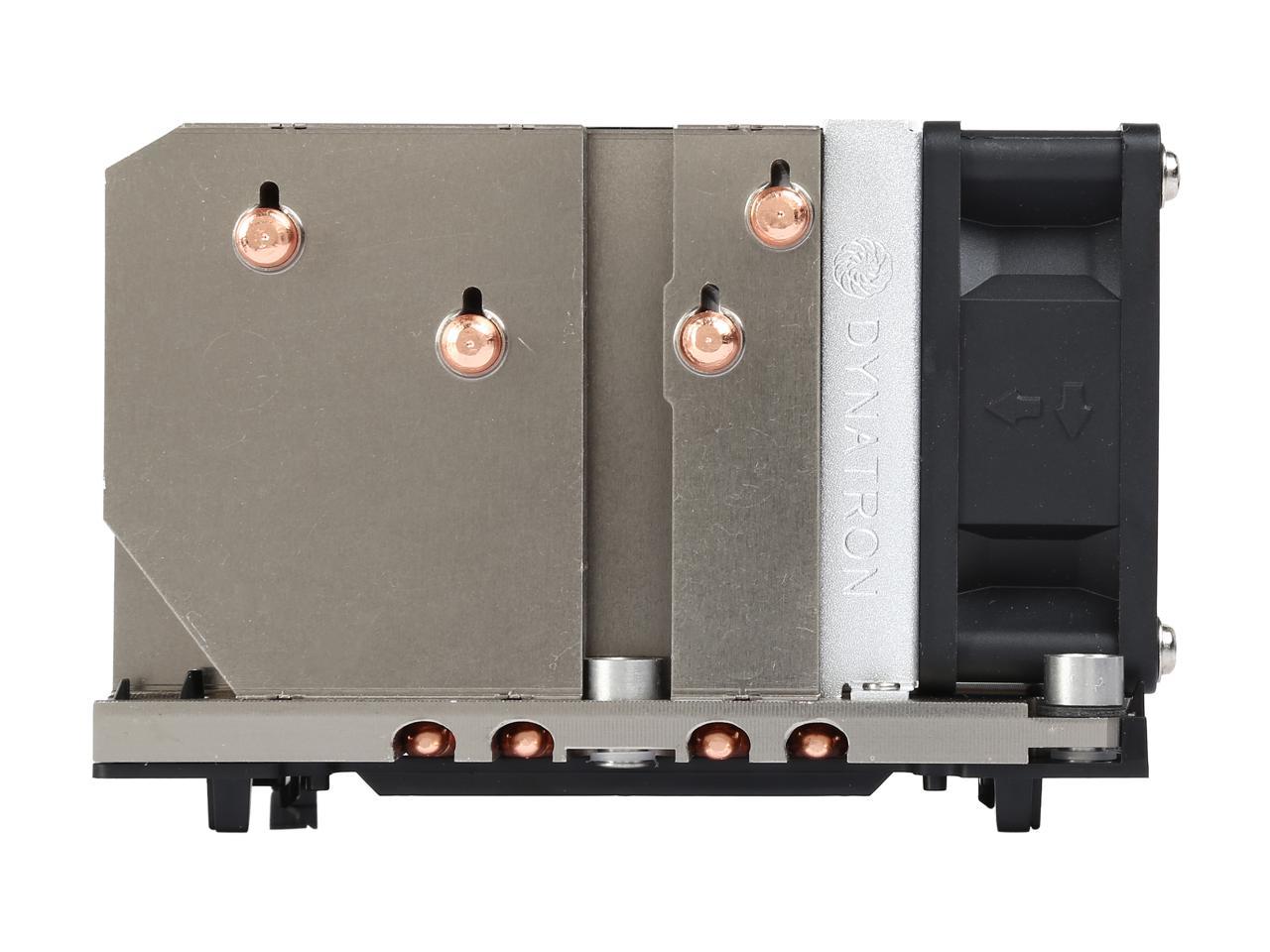

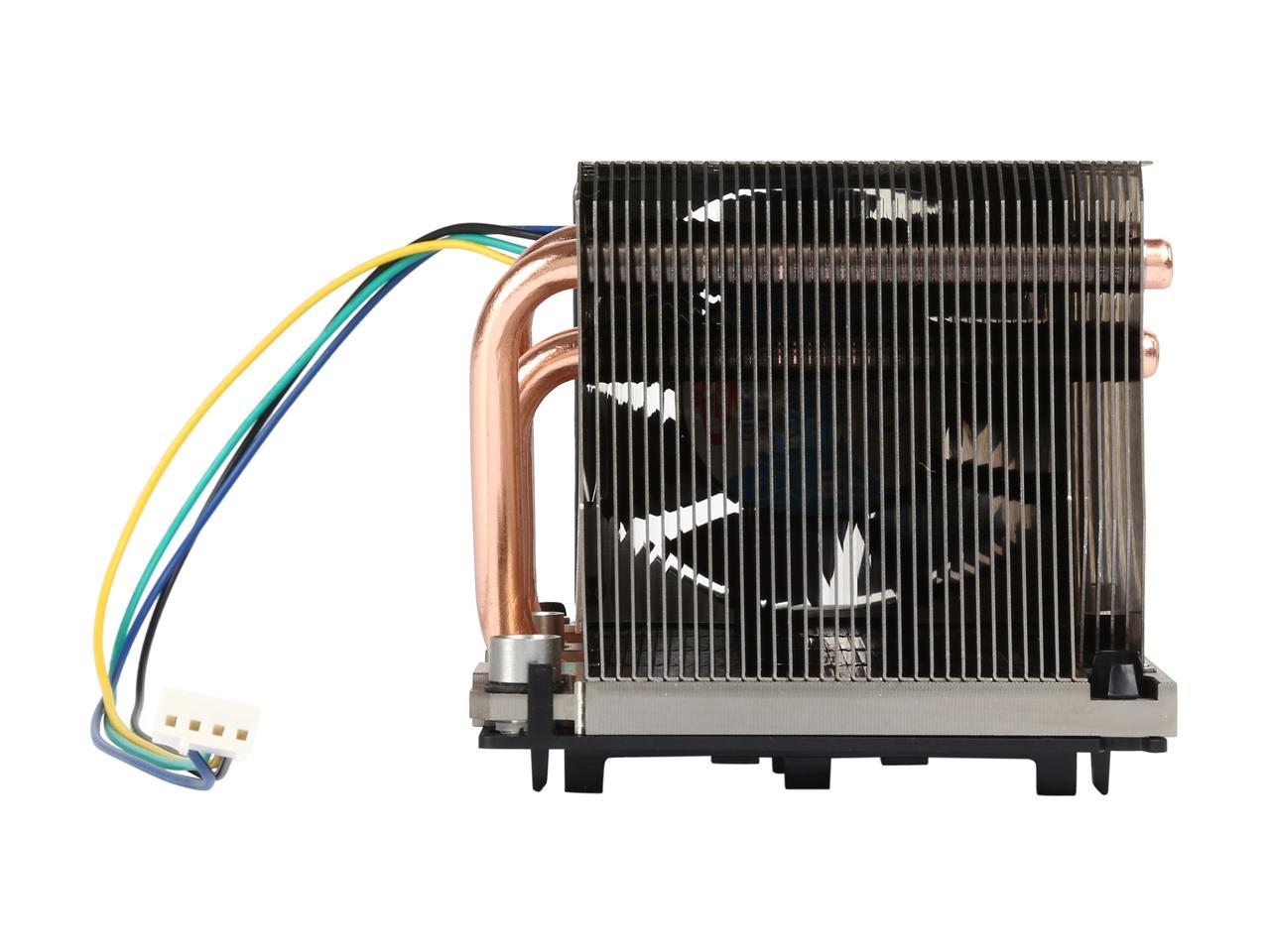

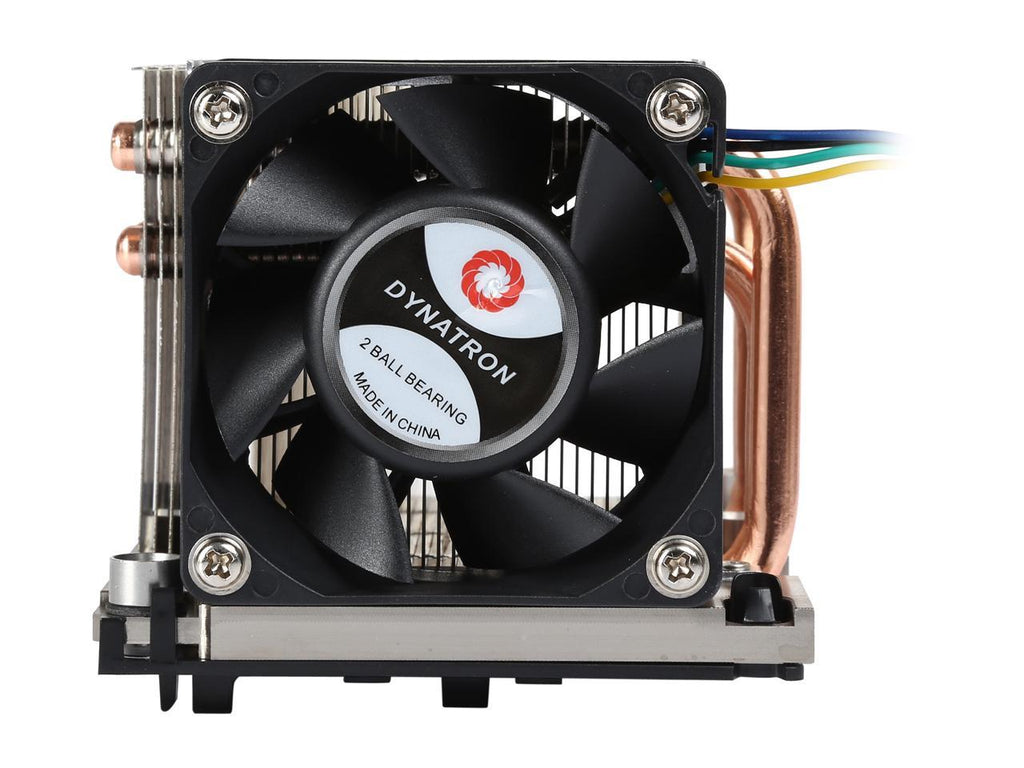

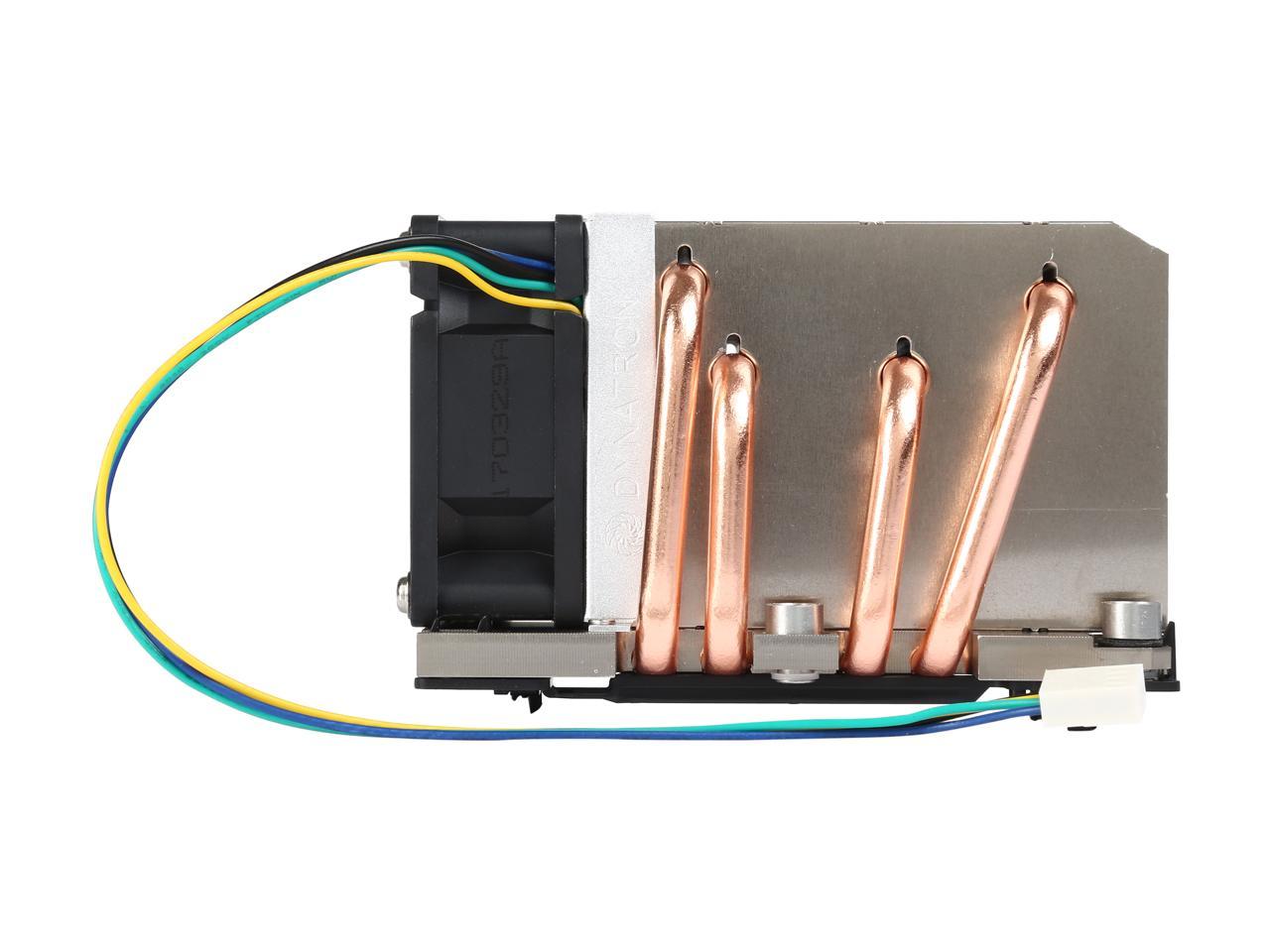

Name: Dynatron B5 2U Server Cpu Fan For Intel Fclga3647
Brand: Dynatron
SKU: B5
Price: 82.00 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Mfr Part Number: B5
CPU Socket: FCLGA3647
Solution: 2U Server and Up
Material: Aluminum Heatsink with Heatpipe Embedded
Fan:
- Speed:
  - At Duty Cycle 20%: 1400 200 RPM
  - At Duty Cycle 50%: 3400 10% RPM
  - At Duty Cycle 100%: 7000 10% RPM
- Bearing: 2 Ball Bearing
- Rated Voltage: 12 V
- Power:
  - At Duty Cycle 20%: 0.90 W
  - At Duty Cycle 50%: 2.04 W
  - At Duty Cycle 100%: 5.40 W
- Air Flow:
  - At Duty Cycle 20%: 8.12 CFM
  - At Duty Cycle 50%: 20.31 CFM
  - At Duty Cycle 100%: 40.60 CFM
- Noise Level:
  - At Duty Cycle 20%: 16 dBA
  - At Duty Cycle 50%: 35 dBA
  - At Duty Cycle 100%: 50 dBA
- Air Pressure:
  - At Duty Cycle 20%: 0.58mm-H2O
  - At Duty Cycle 50%: 3.65 mm-H2O
  - At Duty Cycle 100%: 14.58 mm-H2O
- Lead Wire Pin Out:
  - Pin1- (-)
  - Pin2- (+)
  - Pin3- (Techometer/Signal output)
  - Pin4- (PWM)
Dimensions:
- Fan: 60.0 x 60.0 x 25.0 mm
- Overall: 108.0 x 80.0 x 66.0 mm
Weight: 470.0 g
RoHS Compliant

General Information

UPC	855700016031

Dynatron B5 2U Server Cpu Fan For Intel Fclga3647
