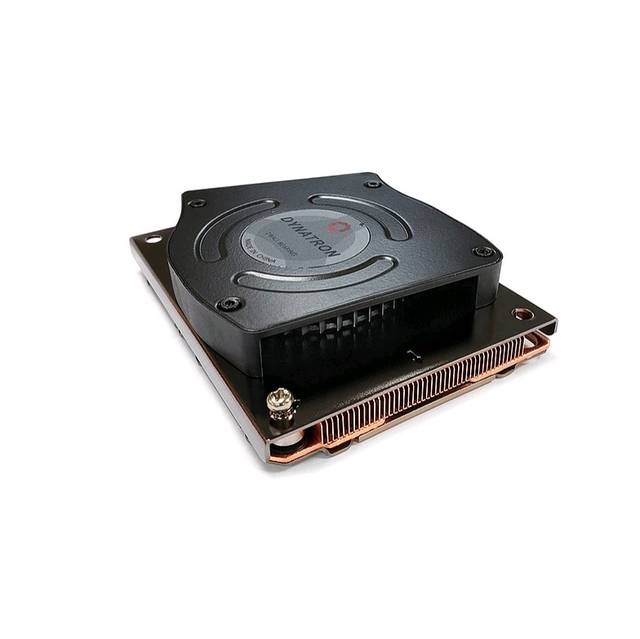

Mfr Part Number: B18
-
CPU Support: Intel Xeon Platinum/ Gold/ Silver/ Bronze Family Processor (formerly Cascade Lake, Skylake)
-
CPU Socket: FCLGA 3647 Narrow ILM
-
Solution: Blade Server and Up
-
Dimensions: 108 x 81.5 x 25 mm
-
Weight: 460 g
-

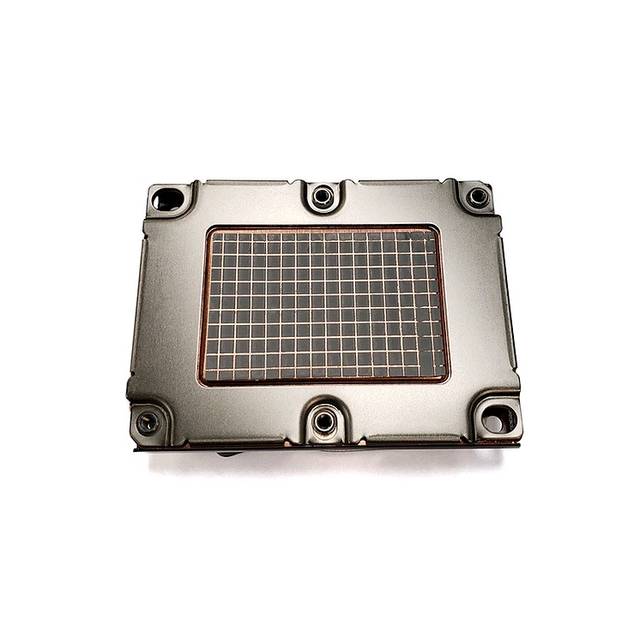

Material: Copper1100 Heatsink with Vapor Chamber Base
-
Fan Dimension: 80 x 13 mm
-
Speed:
-
At Duty Cycle 20%: 1500 200 RPM
-
At Duty Cycle 50%: 4000 10% RPM
-
At Duty Cycle 100%: 8000 10% RPM
-
Power:
-
Bearing: Ball Type, Double
-
Rated Voltage: 12V
-
Air Flow:
-
At Duty Cycle 20%: 4.3 CFM
-
At Duty Cycle 50%: 11.6 CFM
-
At Duty Cycle 100%: 22.8 CFM
-
Noise Level:
-
At Duty Cycle 20%: 25.6 dBA
-
At Duty Cycle 50%: 46.9 dBA
-
At Duty Cycle 100%: 62 dBA
-
Air Pressure:
-
At Duty Cycle 20%: 3.0 mm-H2O
-
At Duty Cycle 50%: 21.0 mm-H2O
-
At Duty Cycle 100%: 83.8 mm-H2O
-
Lead Wire Pin Out:
-
