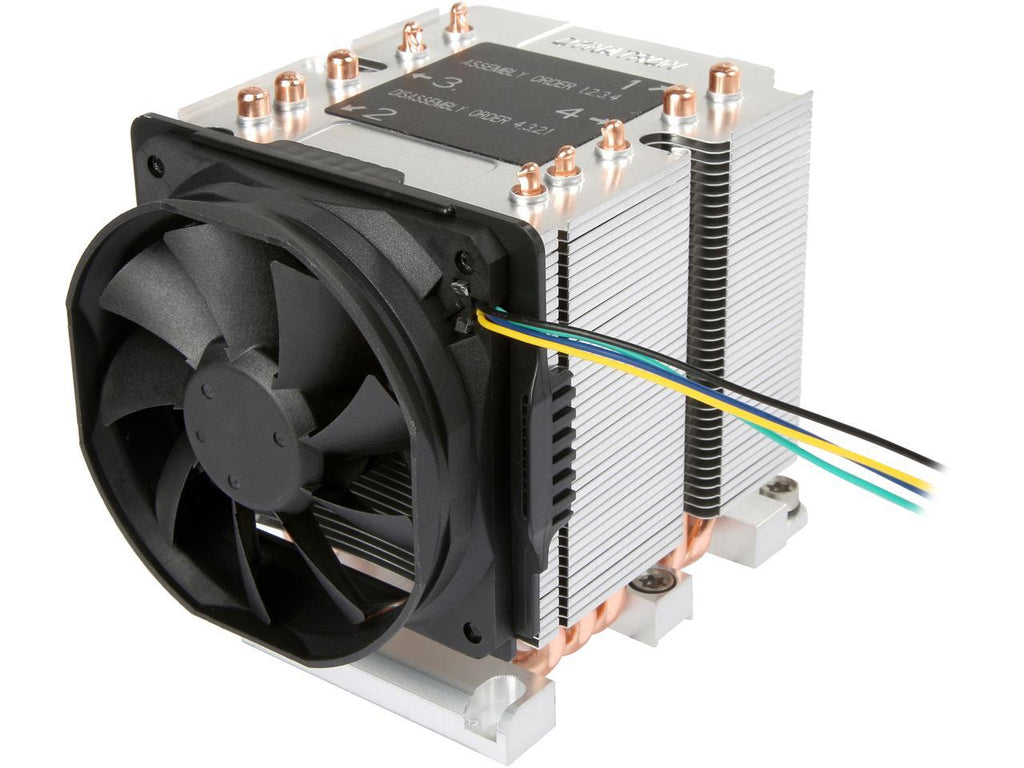

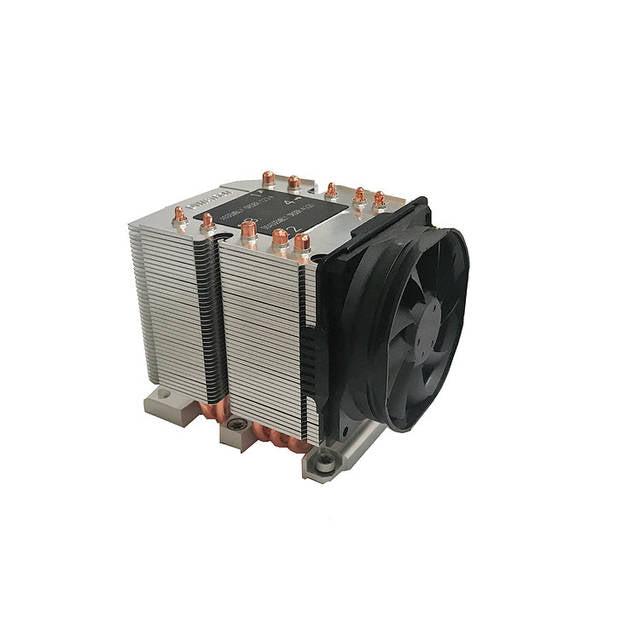

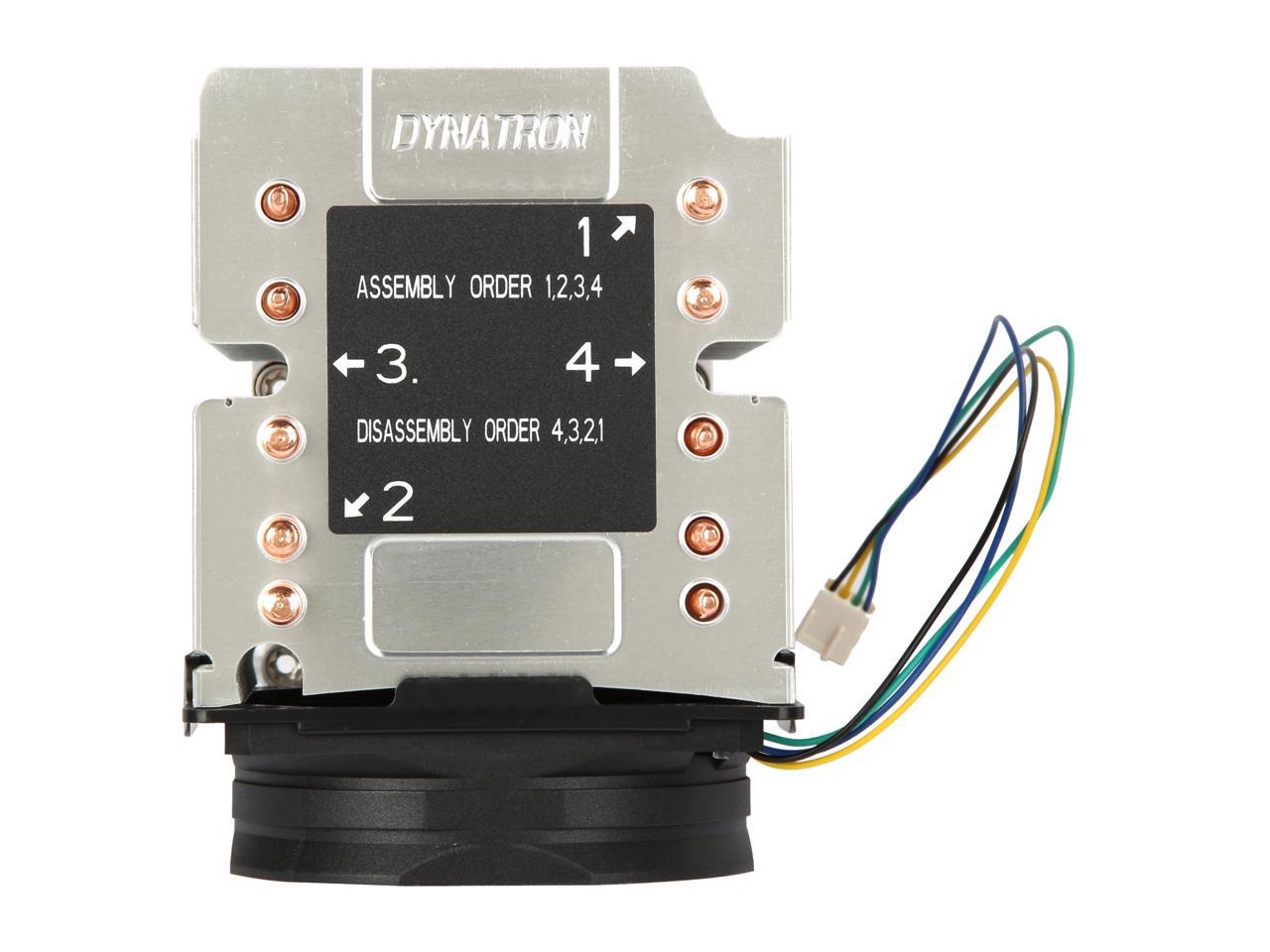

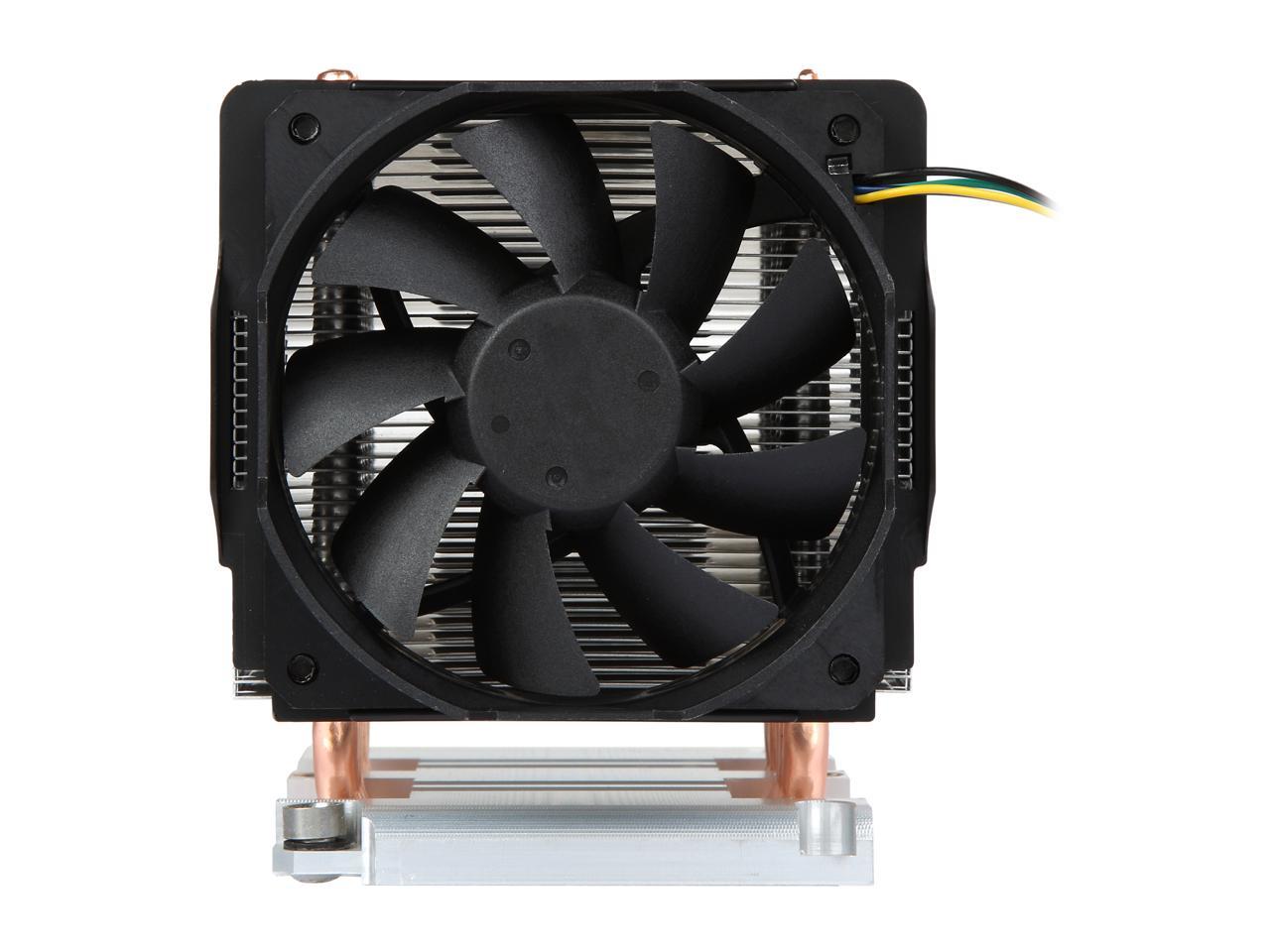

Name: Dynatron B11 3U Server Cpu Fan For Intel Fclga3647
Brand: Dynatron
SKU: B11
Price: 61.00 CAD
Availability: OutOfStock

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Mfr Part Number: B11
CPU Socket: FCLGA3647
Solution: 3U Server and Up
Material: Aluminum Heatsink with Heatpipe Embedded
Fan Dimension: 80.0 x 80.0 x 25.0 mm
Speed:
- At Duty Cycle 20%: 1300 200 RPM
- At Duty Cycle 50%: 2300 10% RPM
- At Duty Cycle 100%: 4000 10% RPM
Rated Voltage: 12V
Bearing: 2 Ball Bearing
Power:
- At Duty Cycle 20%: 0.96 W
- At Duty Cycle 50%: 1.44 W
- At Duty Cycle 100%: 4.80 W
Air Flow:
- At Duty Cycle 20%: 12.5 CFM
- At Duty Cycle 50%: 28.8 CFM
- At Duty Cycle 100%: 50.0 CFM
Noise Level:
- At Duty Cycle 20%: 16.0 dBA
- At Duty Cycle 50%: 30.2 dBA
- At Duty Cycle 100%: 42.2 dBA
Air Pressure:
- At Duty Cycle 20%: 0.5 mm-H2O
- At Duty Cycle 50%: 2.6 mm-H2O
- At Duty Cycle 100%: 7.8 mm-H2O
Lead Wire Pin Out:
- Lead Wire Pin Out
- Pin1- (-)
- Pin2- (+)
- Pin3- (Techometer/Signal output)
- Pin4- (PWM)
Thermal Grease: Shin-Etsu 7762 Pre-printed
Dimensions: 108.0 x 80.0 x 110.0 mm
Weight: 600.0 g
RoHS Compliant
