✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]
-
Mfr Part Number: A26
-

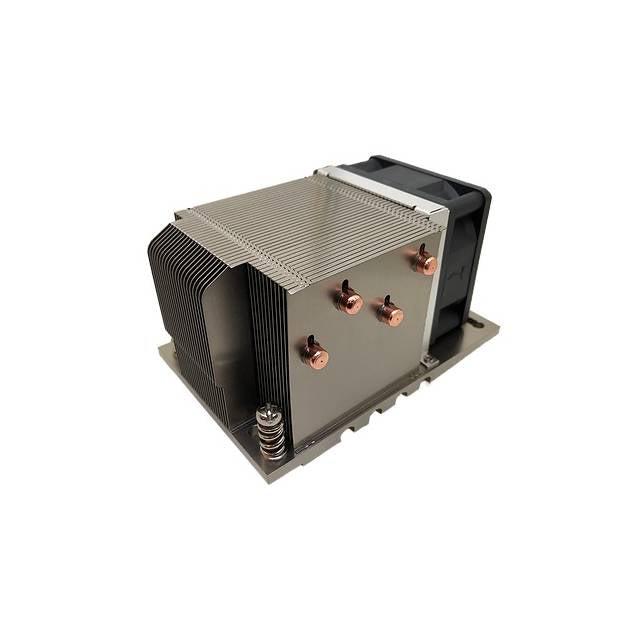

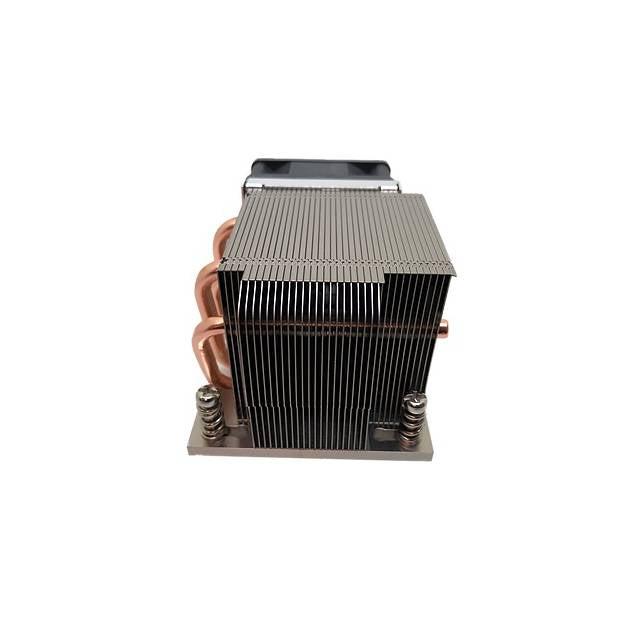

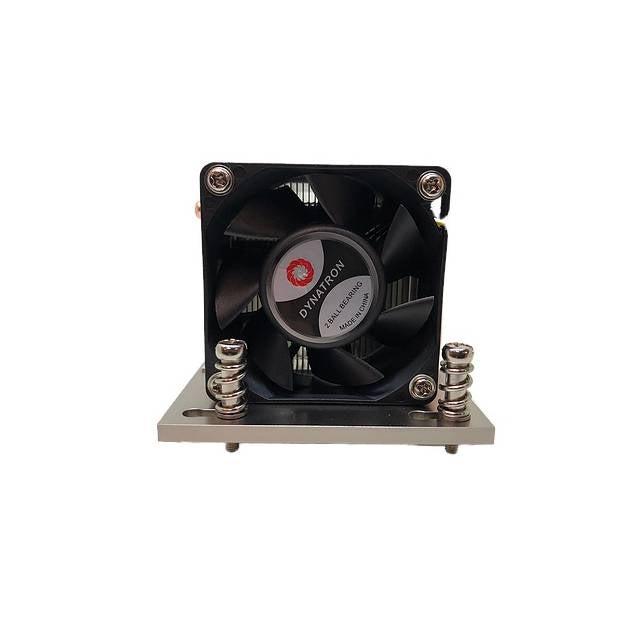

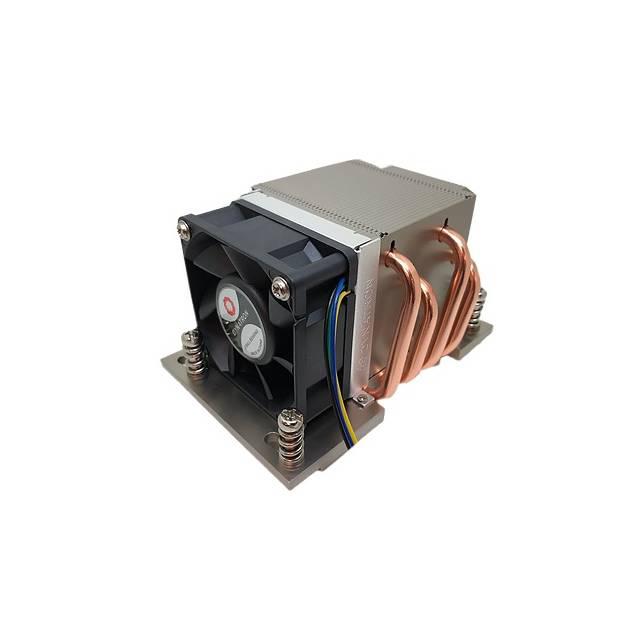

CPU Application: AMD Socket SP3 for 2U Server and up
-
Material: Aluminum Heatsink with Heatpipe Embedded
-
Fan Dimension: 60.0 x 60.0 x 25.0 mm
-
Speed:
-
At Duty Cycle 20%: 1600 200 RPM
-
At Duty Cycle 50%: 4000 10% RPM
-
At Duty Cycle 100%: 8000 10% RPM
-
Rated Voltage: 12V
-
Bearing: Ball Type, Double
-
Power:
-
At Duty Cycle 20%: 1.20 W
-
At Duty Cycle 50%: 2.28 W
-
At Duty Cycle 100%: 7.20 W
-
Air Flow:
-
At Duty Cycle 20%: 8.85 CFM
-
At Duty Cycle 50%: 21.88 CFM
-
At Duty Cycle 100%: 43.75 CFM
-
Noise Level:
-
At Duty Cycle 20%: 18.0 dBA
-
At Duty Cycle 50%: 37.9 dBA
-
At Duty Cycle 100%: 53.0 dBA
-
Air Pressure:
-
At Duty Cycle 20%: 0.76 mm-H2O
-
At Duty Cycle 50%: 4.76 mm-H2O
-
At Duty Cycle 100%: 19.04 mm-H2O
-
Lead Wire Pin Out:
- Pin1- (-)
- Pin2- (+)
- Pin3- (Techometer/Signal output)
- Pin4- (PWM)
-
Dimensions: 119.0 x 79.0 x 65.0 mm
-
Weight: 450.0 g
- RoHS Compliant
