Auto eARC Detection when using the TV's app or external devices
Supports dual HDMI audio interface (HDMI eARC and HDMI Audio)
Supports 4K@60 & HDR
Compatible with Dolby Atmos (via HDMI)
Supports Pixel clock rate up to 600 MHz
Supports S/PDIF, Stereo 3.5mm audio output
Supports DTS HD, Dolby TrueHD (via HDMI)
Supports HDMI 2.0 / 2.1(eARC)
HDCP 2.3 compliant

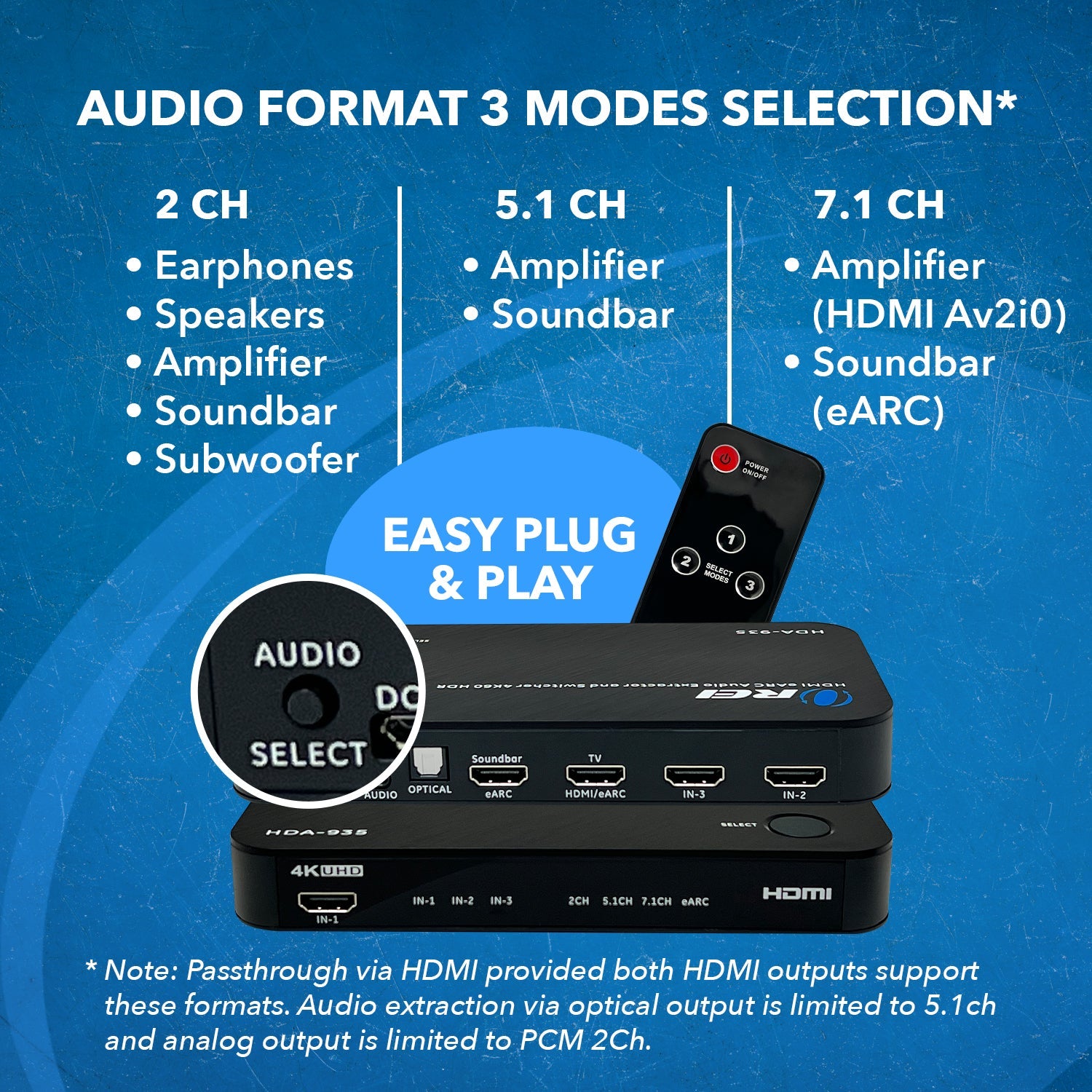

Three modes selection for audio format setting (2Ch/ 5.1Ch/ 7.1Ch)
Support CEC (Use the TV RC to adjust the Soundbar sound and CEC connecting the device to power ON/OFF)

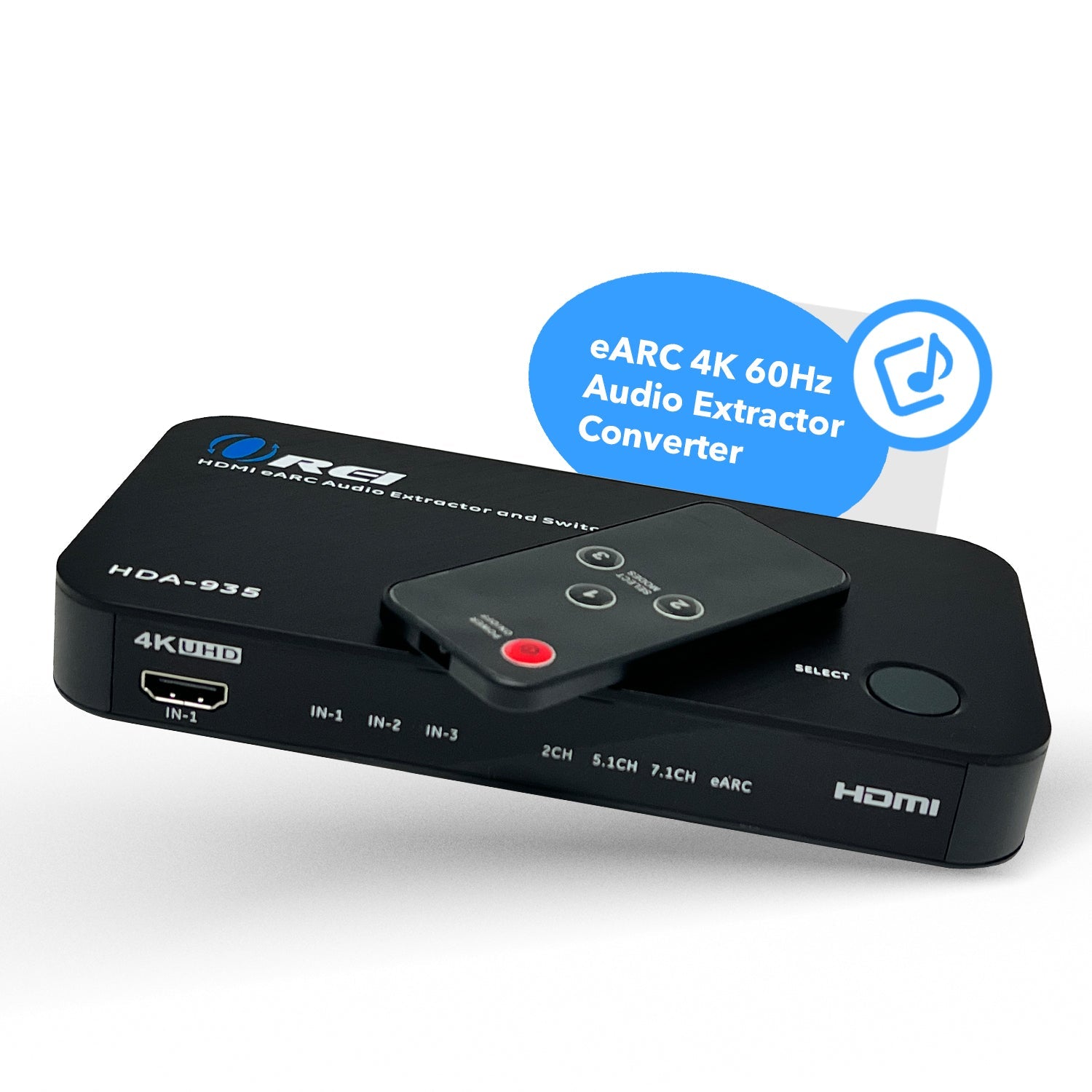

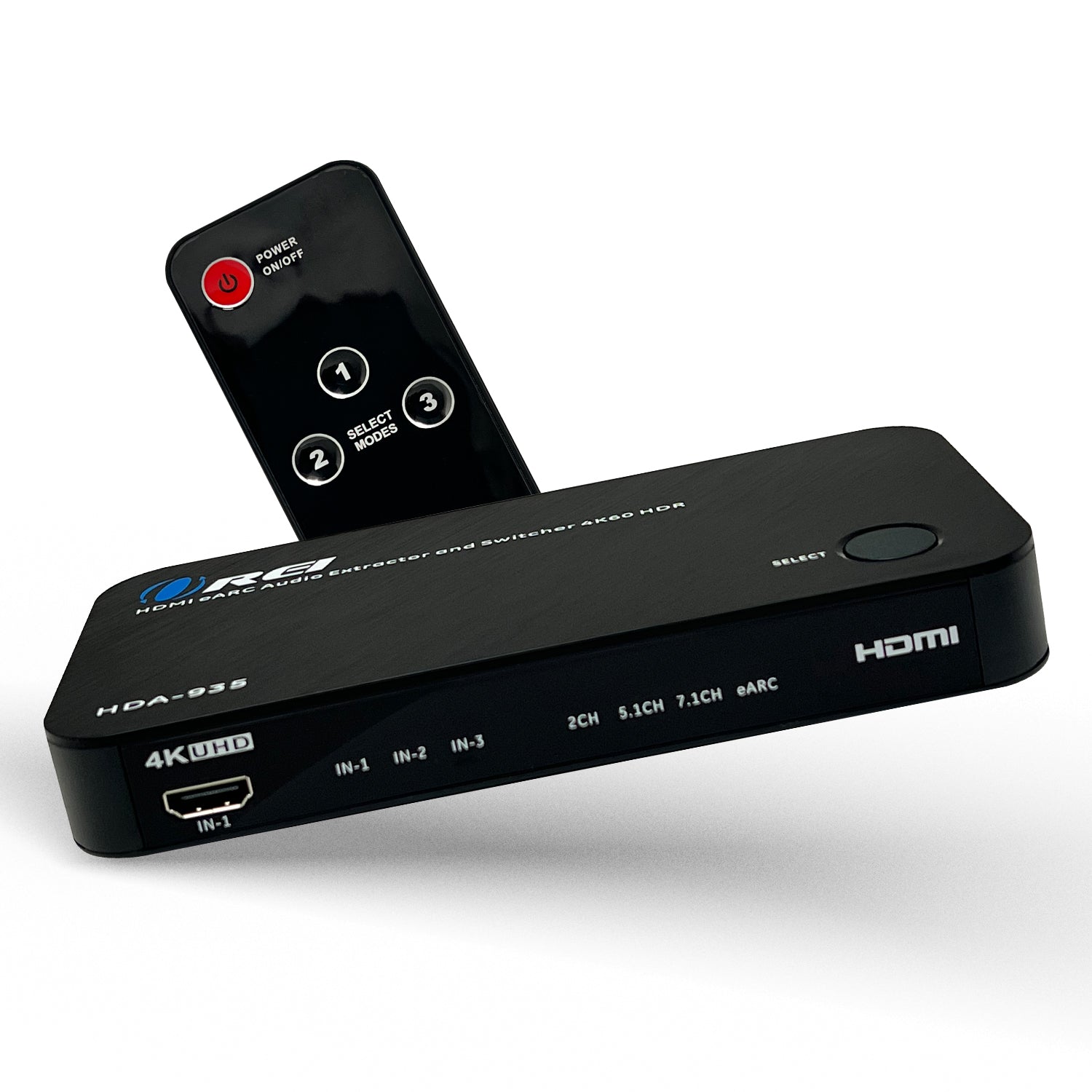

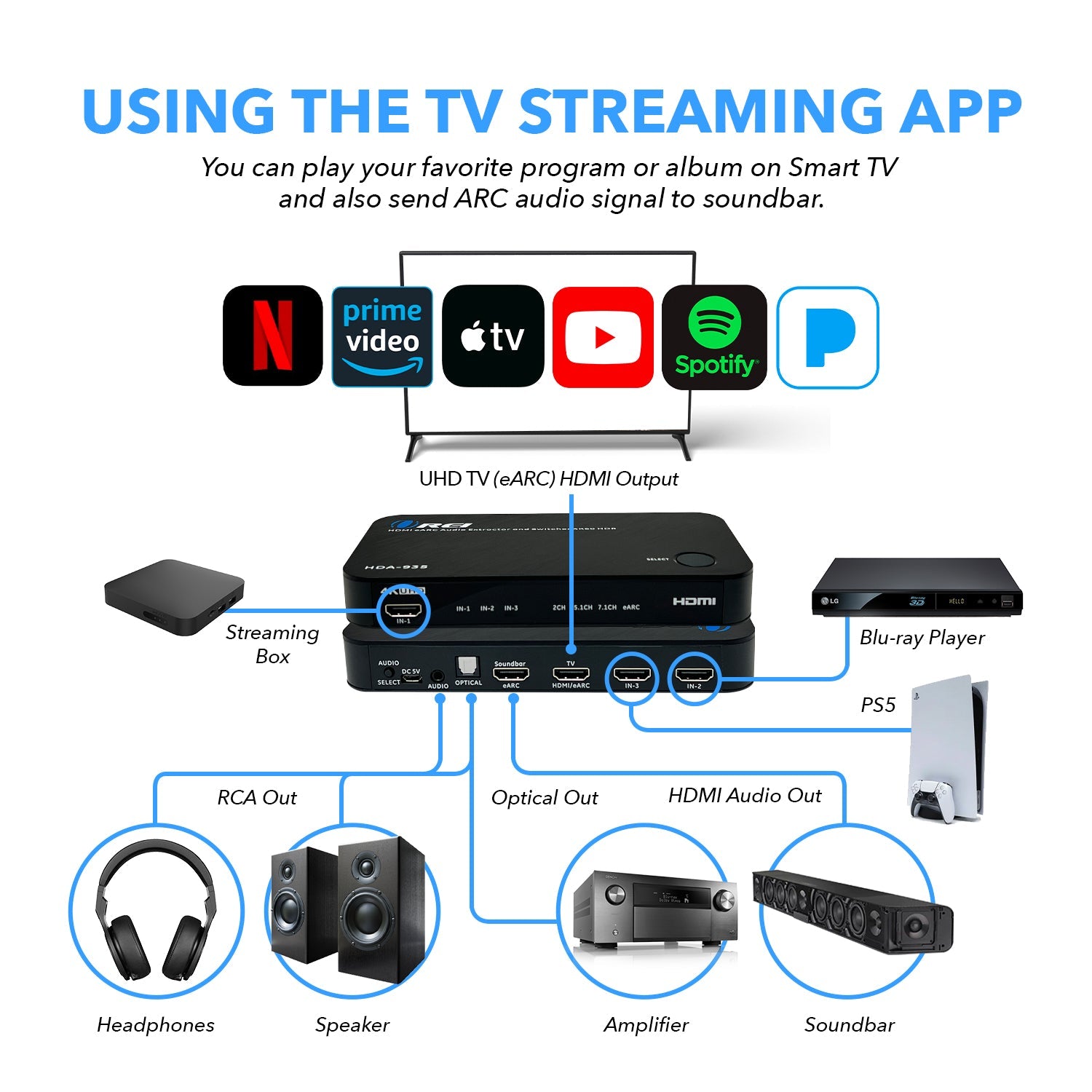

This audio extractor has two HDMI outputs, one for TV 4K@60Hz/HDR video and audio signals, one for eARC Soundbar. It also has S/PDIF(Optical) and analog 3.5mm stereo interface outputs.

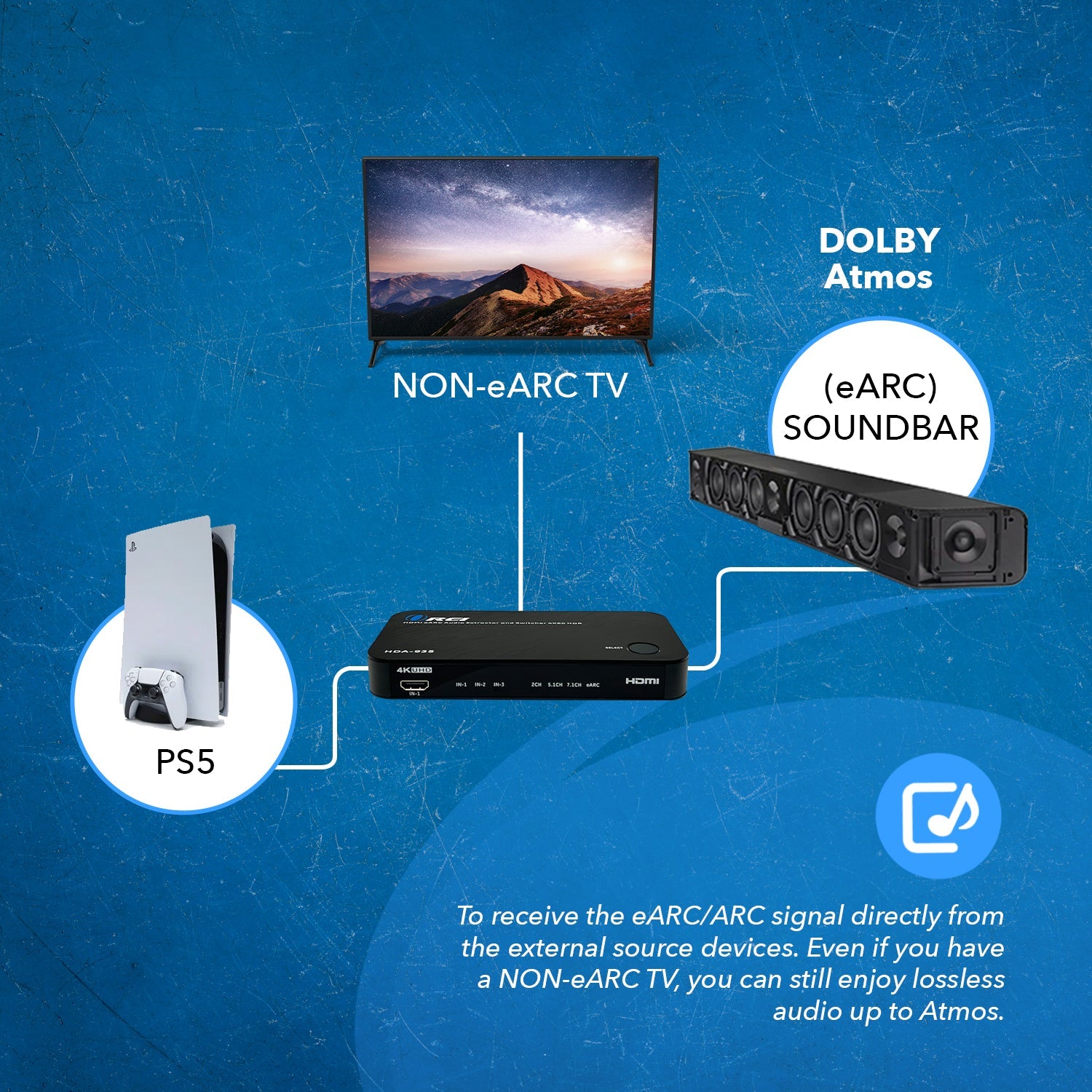

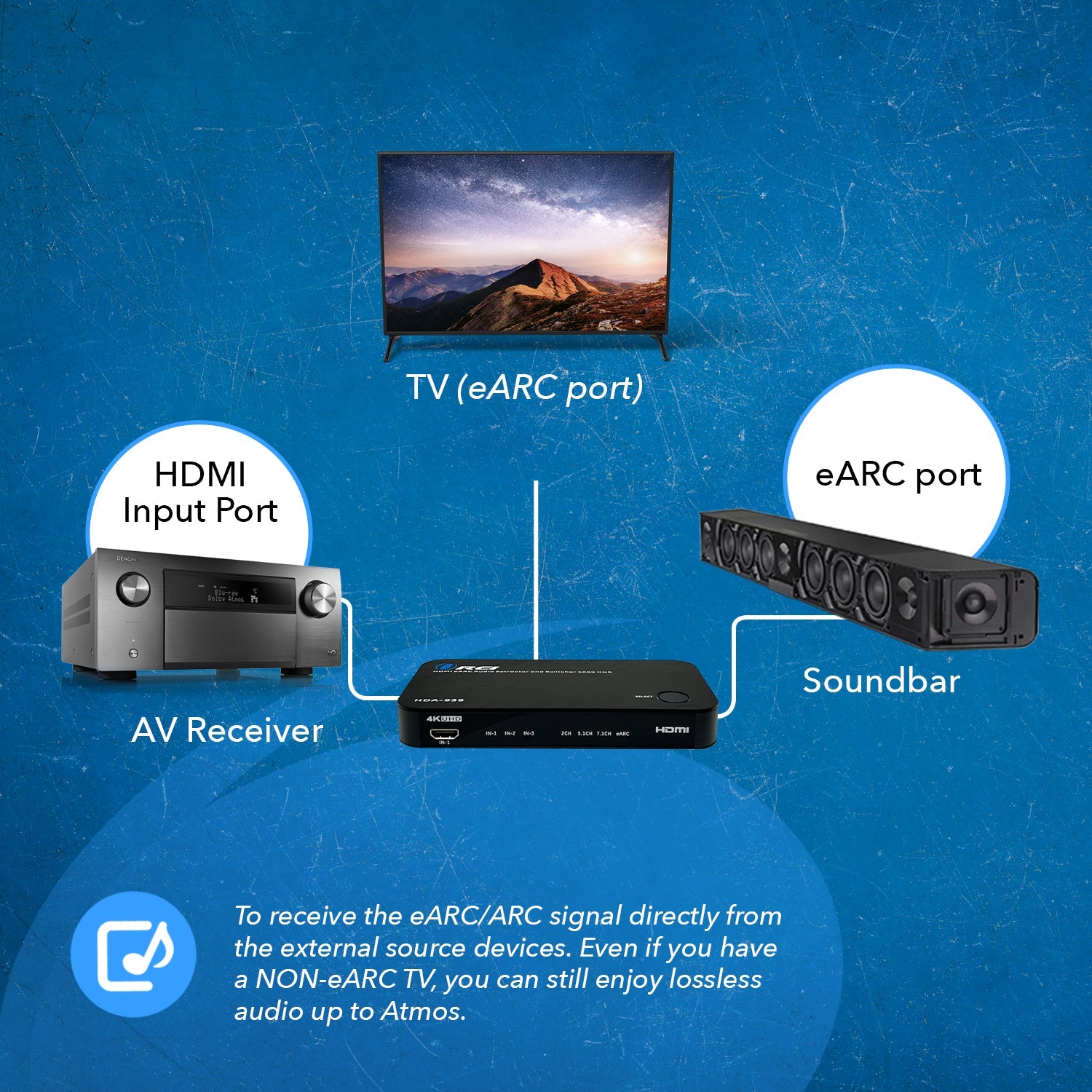

The TV signal can be transmitted back to Soundbar via eARC (enhanced Audio Return Channel) to play high-quality surround sound. Even Non-eARC TV can enjoy the high-quality of eARC audio return for lossless audio up to Atmos.
Build-in eARC automatically detect the source of the signal (TV or external signal).[shortdes]
2 HDMI Outputs (1 for Video, 1 for soundbar (having eARC/ARC port)
Supports S/PDIF, Stereo 3.5mm audio output
Supports CEC function between HDMI Ports
[/shortdes] [tab]
AUDIO AND VIDEO

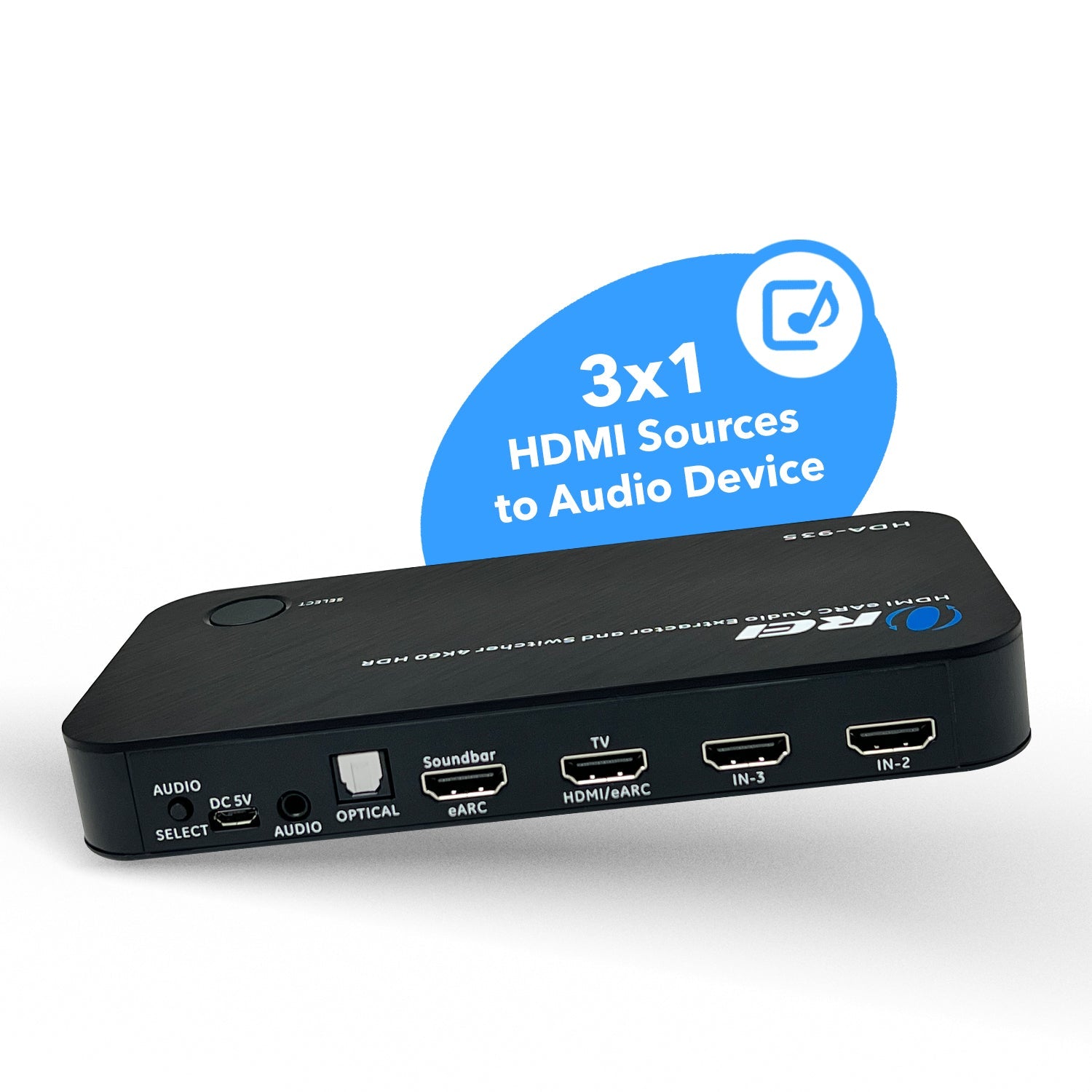

INPUT PORTS:
3x HDMI Type A [19-pin female]
OUTPUT PORTS:
2x HDMI Type A [19-pin female]
1x S/PDIF (Optical)
1x 3.5mm audio jack
COMPLIANCES
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4k@60Hz
Color Space:
RGB YUV 4:4:4 YUV 4:2:2 YUV 4:2:0
Color Depth:
12 bit
CEC & EARC SUPPORT
CEC:
Use the TV RC to adjust the Soundbar sound and CEC connecting device to power ON/OFF
eARC/ARC:
Yes
SWITCHES
EDID:
Build-in eARC automatically detects the source of the signal (TV or external signal), no need to switch on or off
Audio Select:
Select the audio formats from 2Ch, 5.1Ch, 7.1Ch
AUDIO OUTPUT
HDMI Audio Formats:
PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X

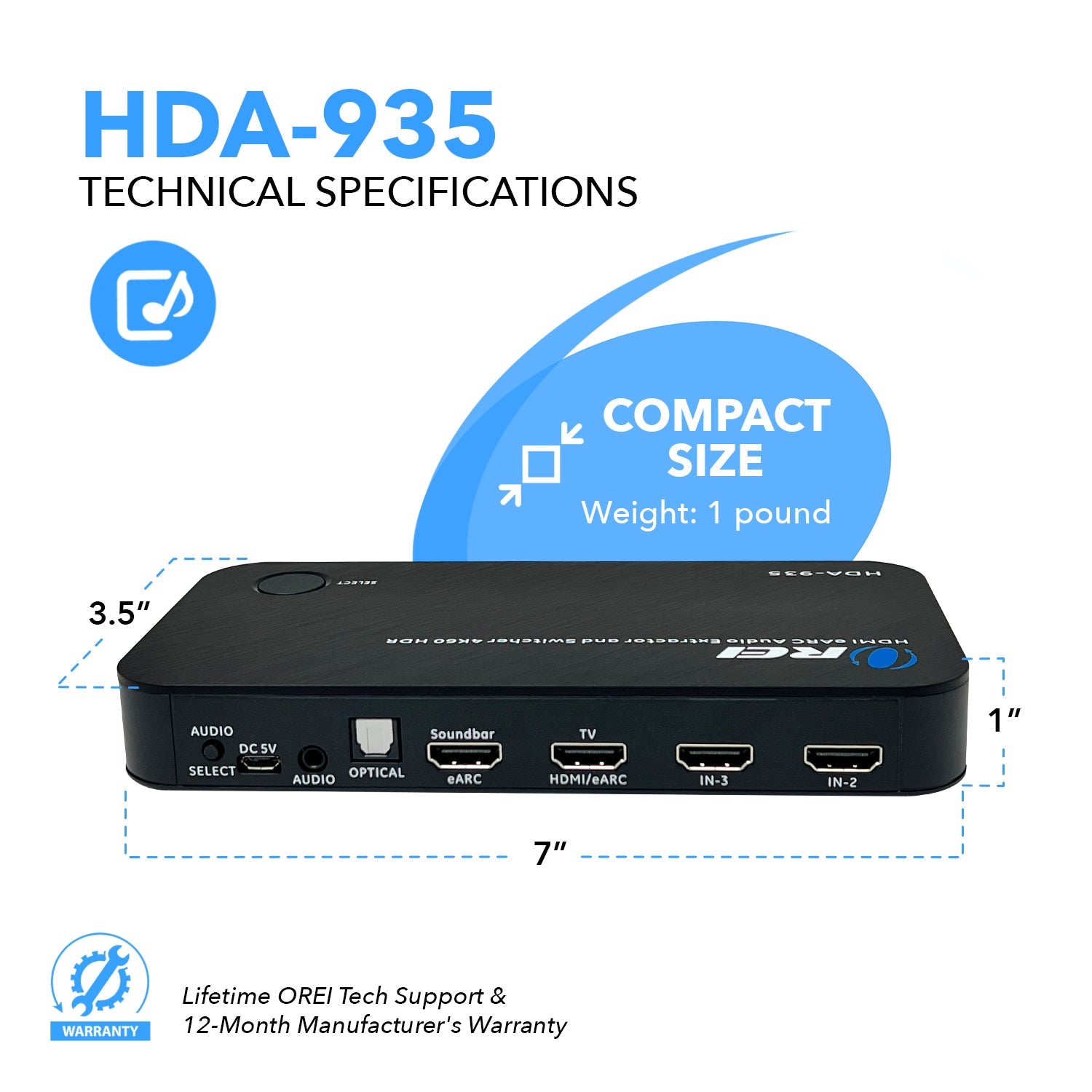

DIMENSIONS & WEIGHT
Height:
26.3mm
Width:
175mm
Depth:
86.6mm
Weight:
158g
PROTECTION
Operation Temperature:
0°C to 40°C (32°F to 104°F)
Storage temperature:
-20°C to 60°C (-4°F to 140°F)
Relative Humidity:
10~90 % RH
ESD Protection:
Contact discharge 4KV Air discharge 8KV
POWER
Power Consumption (Max):
5W(max)
Power Supply
5V/1A
PHYSICAL PROPERTIES
Color:
Black
Housing:
MABS+ABS
PACKAGE CONTENTS
1x HDMI Audio Extractor
1x DC 5V/1A power adaptor
1x 3.5mm to RL cable
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, either HDMI input port or HDMI ARC port is required to extract the sound with this product.
No, this product doesn't support the feature of downscaling or upscaling the audio signals. Whatever the audio signals that you're inputting, you will get that audio signal as an output.
[/tab1]
General Information
UPC
0850031132405
