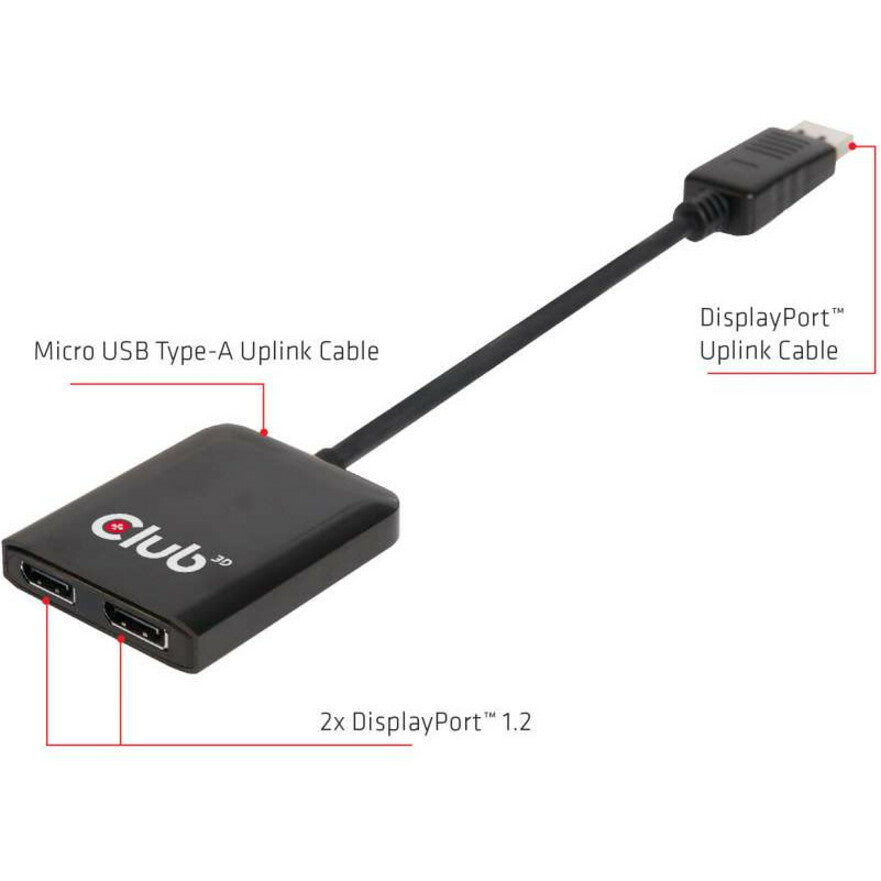

Club 3D Multi Stream Transport (MST) Hub DisplayPort 1.2 Dual Monitor USB Powered
Multi Stream Transport Hub DisplayPort 1.2 Dual Monitor
CSV-6200 - The Club3D SenseVision MST Hubs utilise Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming.
This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens. The CSV-6200 is Plug & Play and does not require any driver installation.
The Club3D MST Hubs do not increase the bandwidth of the DisplayPort™ 1.2 output of the source system, but it enables the optimal use of it.
Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.
- Compliant with: DisplayPort™ v1.2a, DisplayPort™ v1.1a, VESA DDM Standard, HDCP V2.0, Display Id,and EDID V1.4
- Supports main link rates of 5.4 Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source
- Input pixel dat a depth 6/8/10/12 bits and supports output pixel format RGB444
- Supports Advanced Wide Eye™ SerDes technology enables high Jitter performance
- Supports AMD Eyefinity™
- Compatible with Microsoft Surface Pro and Intel NUC platforms
- Works with AMD, Nvidia and Intel Graphics solutions
Product Type: Signal Splitter
Brand Name: Club 3D
Length: 2.4"
Manufacturer: Club 3D
Product Model: CSV-6200
Product Name: Multi Stream Transport (MST) Hub DisplayPort 1.2 Dual Monitor USB Powered
Product Line: SenseVision
Manufacturer Part Number: CSV-6200
Manufacturer Website Address: http://www.club-3d.nl
Package Contents:
- Multi Stream Transport (MST) Hub DisplayPort 1.2 Dual Monitor USB Powered
- USB to Micro USB Cable for Power
- Quick Install Guide
Weight (Approximate): 1.90 oz
