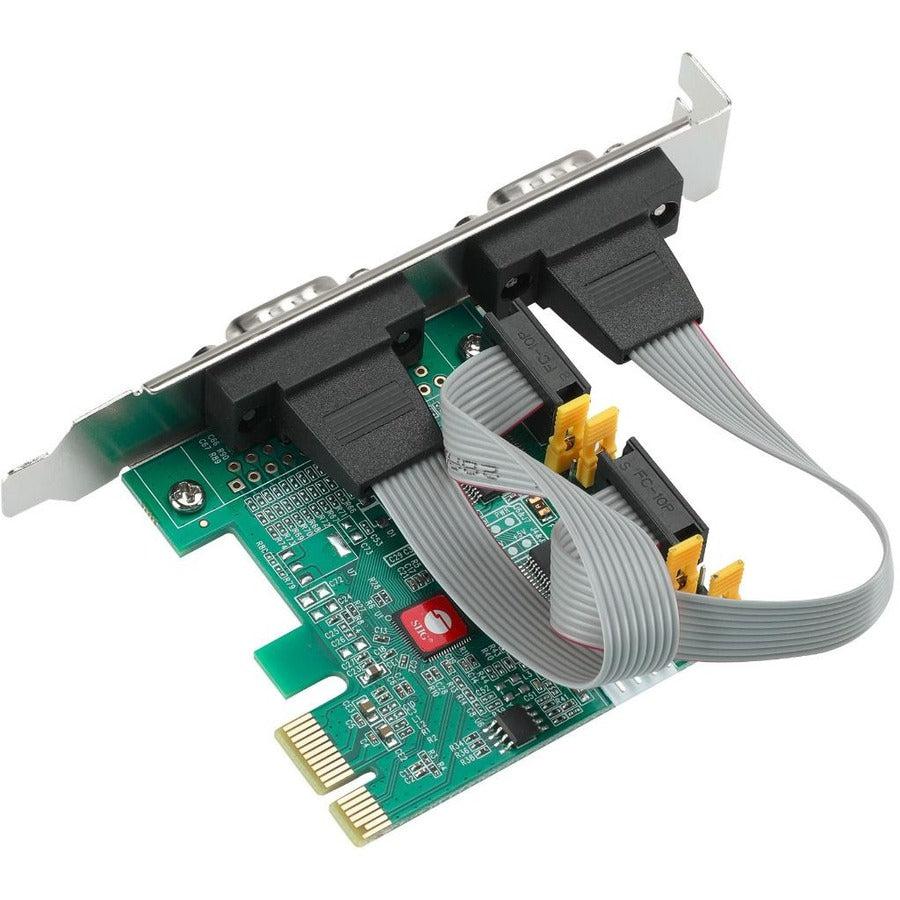

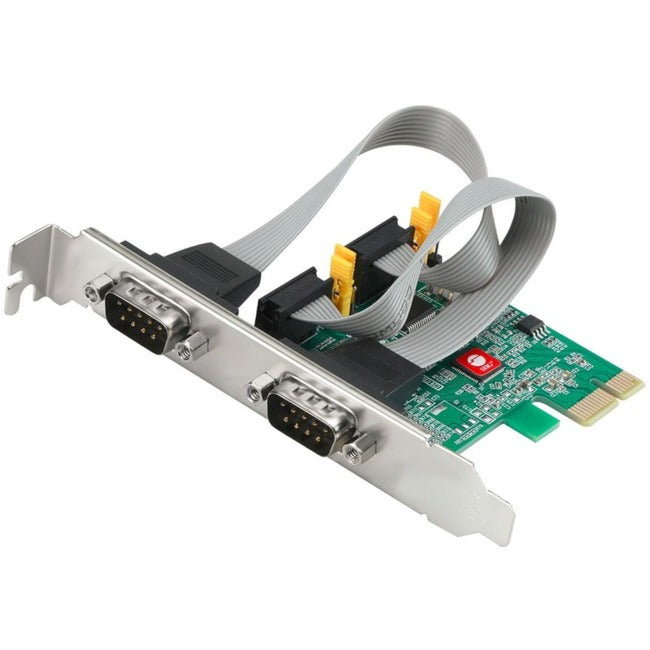

SIIG 2 Port DP Cyber RS-232 2S PCIe Card - 250Kbps
Add two 16650 RS232 ports to your PCI Express system
Features
- Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
- Two 16C650 UART serial ports support data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2

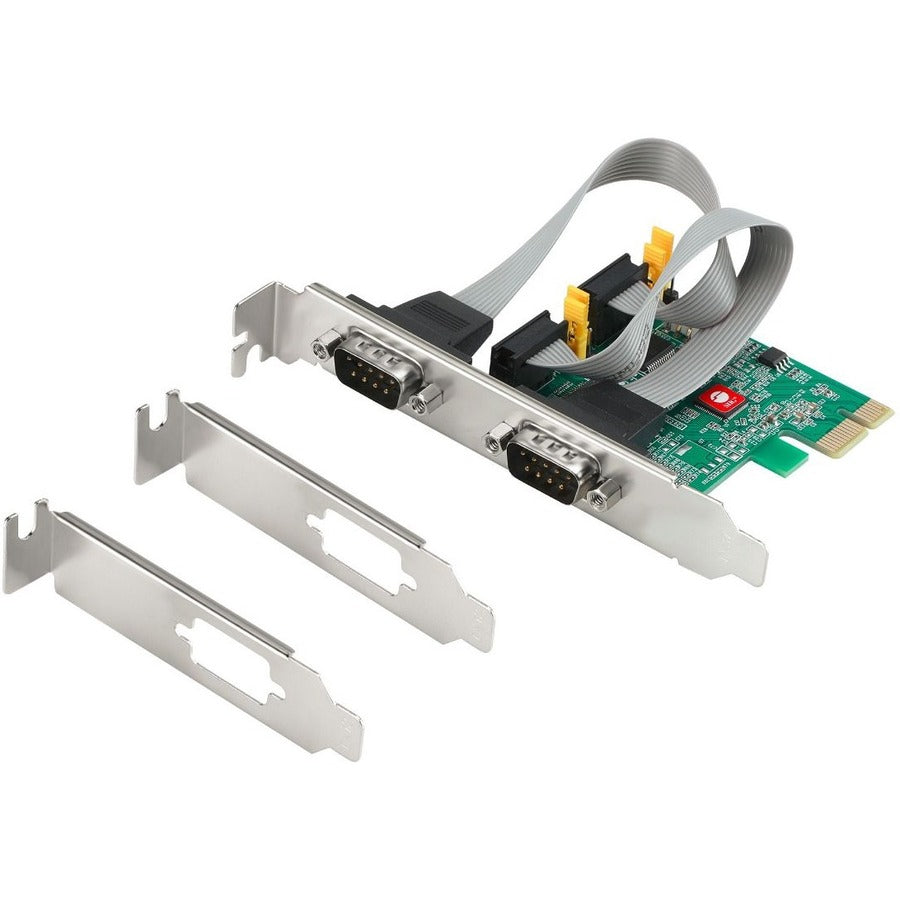

- Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
- Installs into any PCI Express slot of any lane width
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
- Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
- Two 16C650 UART serial ports support data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated
- Full serial modem control with hardware and software flow control
- Supports 5, 6, 7, 8 and 9-bit serial formats
- Supports Even, Odd, None, Space and Mark parity
- On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2
Product Type: Serial Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Card Height: Full-height/Low-profile
Brand Name: SIIG
Form Factor: Plug-in Card
Manufacturer: SIIG, Inc
Product Name: DP Cyber 2S PCIe Card
Manufacturer Part Number: JJ-E20711-S1
Manufacturer Website Address: http://www.siig.com

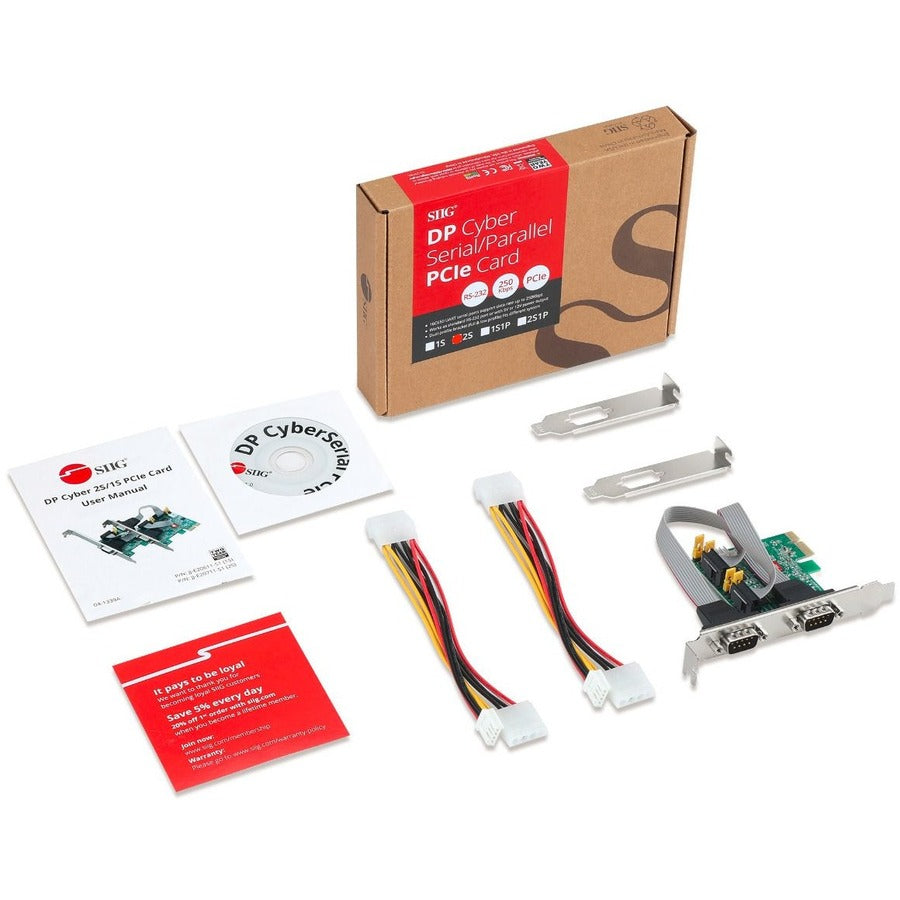

Package Contents:
- DP Cyber 2S PCIe Card
- Full Height Bracket
- 2 x Low Profile Bracket
- 1 x Y-Split Power Cable
- 4 x Voltage Jumper
- Software CD
- User Manual
Limited Warranty: 2 Year
Weight (Approximate): 1.92 oz
