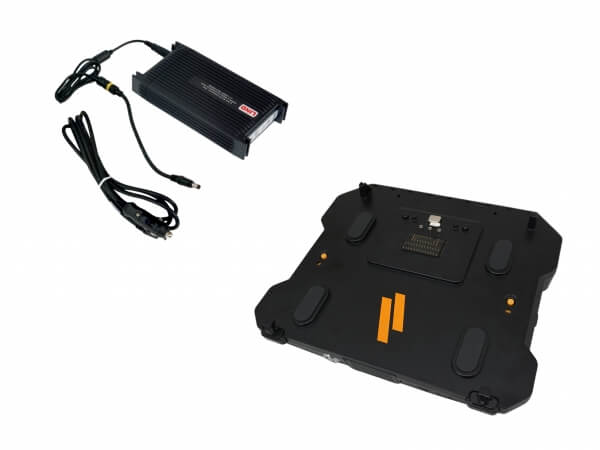

Docking Station For Dell 5430, 7330, 5420, 5424 & 7424 Notebooks With Standard Port Replication, Triple Pass-Thru Antenna Connections & LIND Power Supply
DS-DELL-426-3
FEATURES
- Includes DS-DELL-425-3 docking station & LIND LPS-137 power supply
- Supports Dell's 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
- Adjustable & lockable front arms accommodate new and legacy notebooks
- One-handed docking & undocking (patent pending)
- Spring-loaded connector head
- Compact & lightweight
- U-style mounting bracket with seating notch for easy installation
- Rounded corners and edges for safety
- Access to all notebook buttons and ports when docked
- Standard port replication with integrated cable management system
- Also compatible with 5414, 7214, 5404 & 7204 notebooks
- Keyed lock
- Compatible with screen support (DS-DA-412, sold separately)
- Made in USA
Manufacturer: Havis
Manufacturer Part Number: DS-DELL-426-3
SPECIFICATIONS
PRODUCT SPECIFICATIONS:
| Compatible devices: |
Dell Rugged Notebooks 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204 |
| Certifications: |
UL safety (pending); Vibration Testing: MIL-STD 810H 514.8, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational (-20 C to 60 C) & sto |
| Connectivity includes: |
fully-powered USB 3.0 (3), USB: fully-powered USB 2.0 (1, front facing), Ethernet: RJ45 jack, gigabit lan 10/100/1000 mb/s. (1), speaker & mic: (1 each, front facing), input voltage: 19.5V DC, antenna connections: triple pass-throug |
| Dimensions: |
height 10.33" (26.23 cm) with arms collapsed or 10.60" (26.91 cm) with arms extended, width 12.40" (31.48 cm), depth 2.73" (6.94 cm) |
| Product weight (dock only): |
3.30 lbs (1.50 kg) without mounting bracket, 4.75 lbs (2.15 kg) with mounting bracket |
| Gross weight: |
7 lbs |
