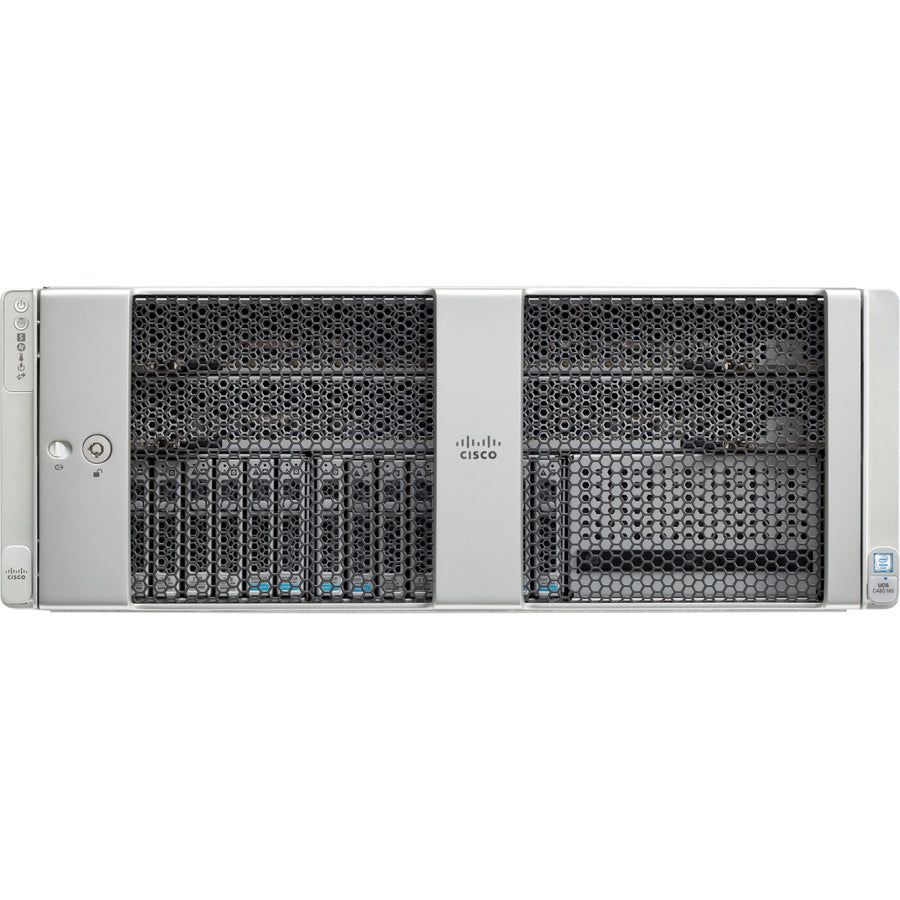

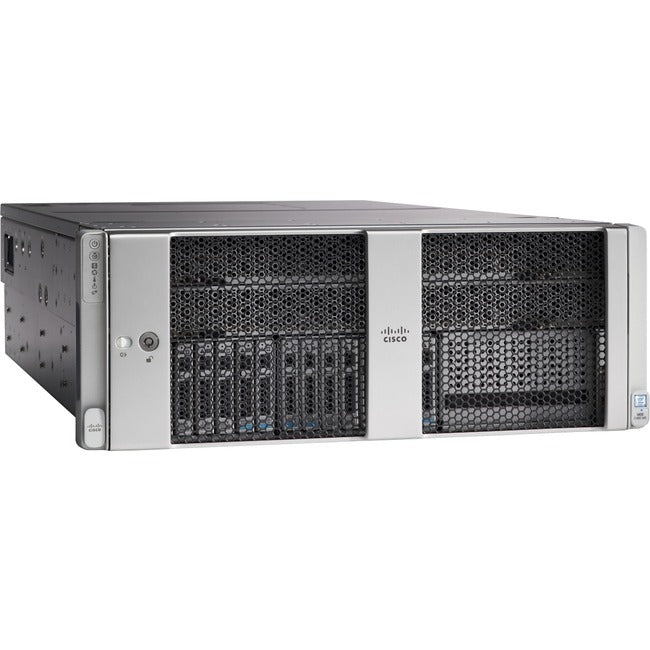

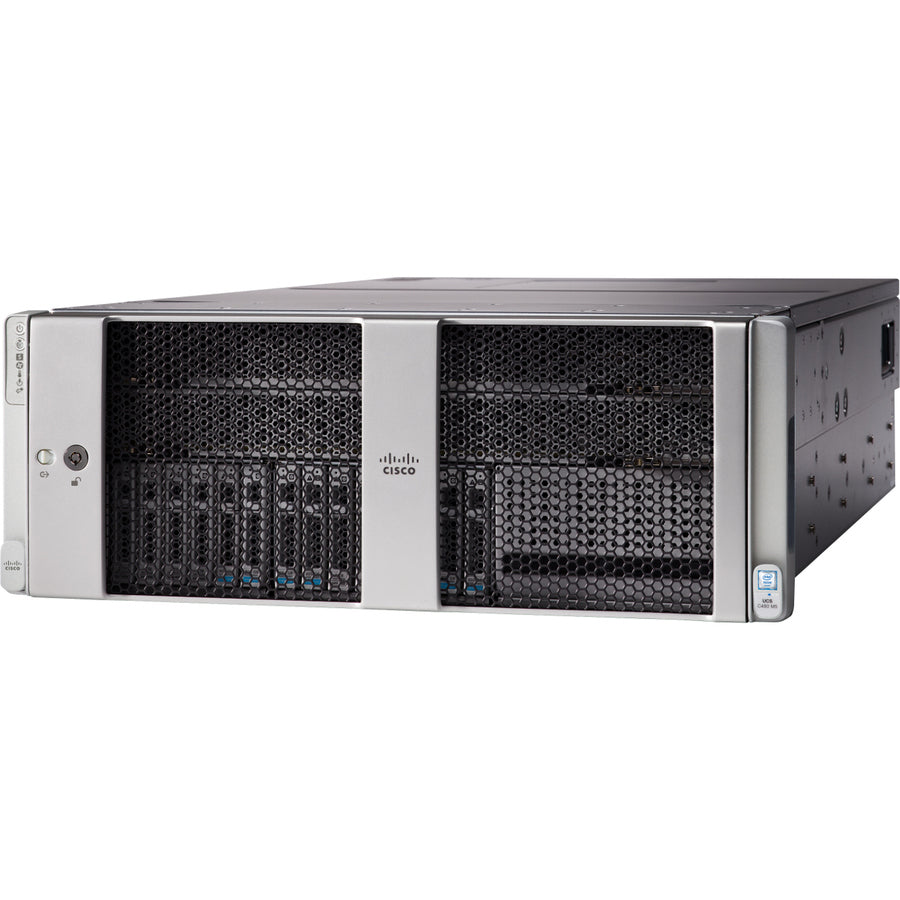

Cisco Barebone System - 4U Rack-mountable - 4 x Processor Support
The Cisco UCS C480 M5 High-Performance Rack Server is a four-rack-unit (4RU) server supporting the Intel® Xeon® processor scalable family CPUs, with up to 6 terabytes (TB) of double-data-rate 4 (DDR4) memory in 48 slots, and up to 32 small form factor (SFF), hot-swappable SAS/SATA/PCIe NVMe disk drives.
The latest update includes support for 2933 MHz DDR4 memory that is used with the latest 2nd Generation Intel® Xeon® Scalable Processors. With this combination and the new 512GB Intel® OptaneTM DC Persistent Memory (DCPMM - Data Center Persistent Memory Module), up to 18 TB of memory is possible (24x256GB DDR4 DIMMs and 24x512GB DCPMMs).

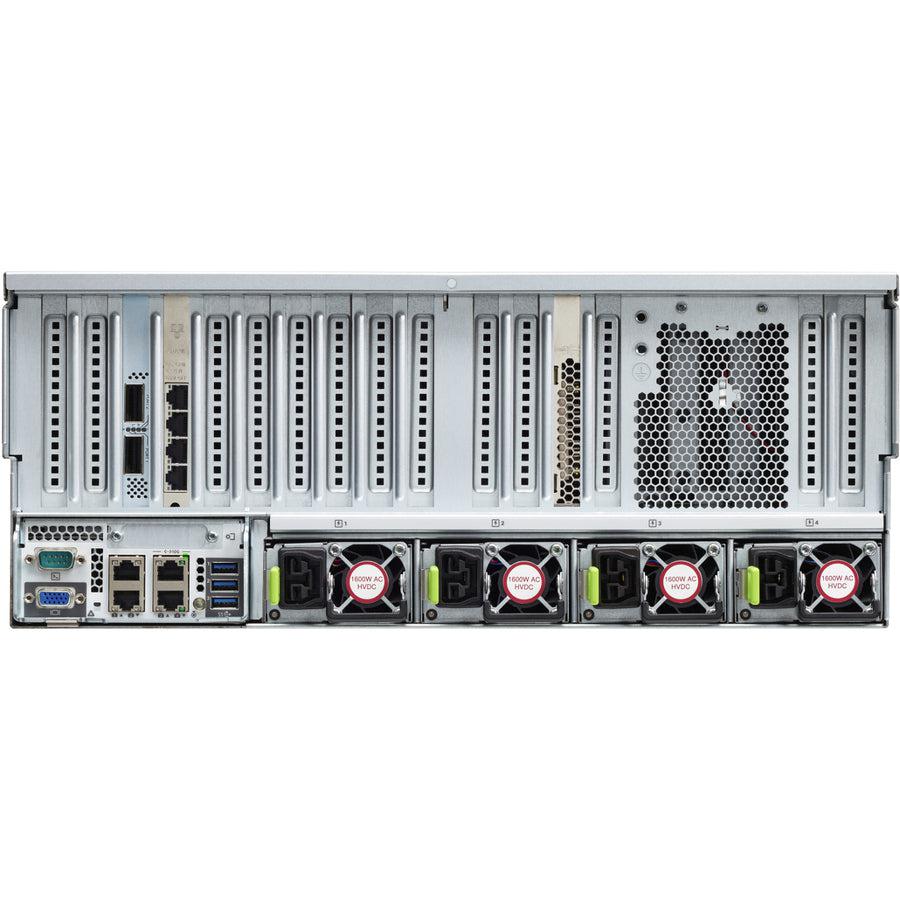

12 PCI Express (PCIe) expansion slots support Cisco UCS C-Series network adapters storage controllers, and up to 6 GPUs, with additional I/O provided by two 10GBase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card.
- Compatible Xeon Gold processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Provides 4 USB ports for responsive and expanded device connections
- 12Gb/s SAS interface for high speed and reliability
Product Type: Barebone System
Product Series: C480 M5
Rack Height: 4U
Brand Name: Cisco
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Name: UCS C480 M5 Barebone System
Manufacturer Part Number: UCSC-C480-M5-CH
Manufacturer Website Address: http://www.cisco.com
Weight (Approximate): 146.17 lb
