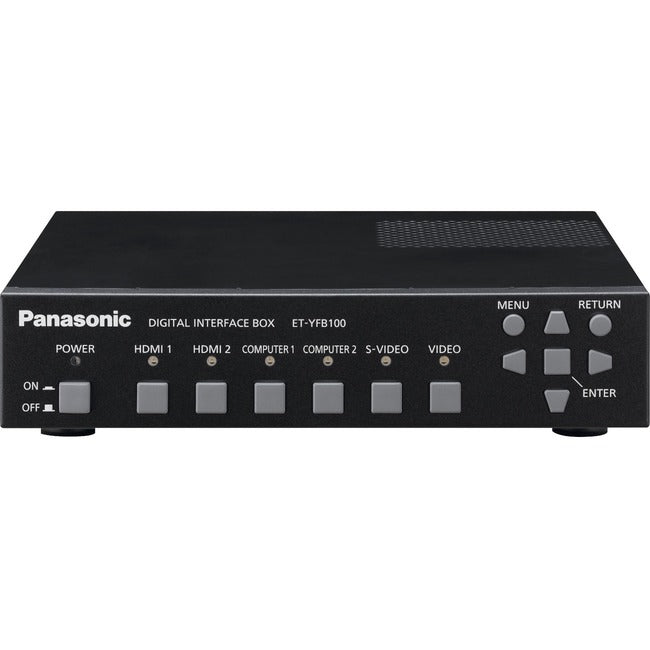

Panasonic Digital Interface Box - Simple AV Transmission System
By combining the ET-YFB100G with a DIGITAL LINK-ready device, video, audio and control signals can be transmitted over a single cable.
By combining the ET-YFB100G with a DIGITAL LINK-ready projector, video, audio and control signals can be transmitted over a single cable. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Transmits Digital Signals with a Single Cable
Equipped with a DIGITAL LINK output terminal. Allows transmission of HDMI, uncompressed HD digital video,
audio and control signals (Ethernet, RS-232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher.
Abundant input terminals, including two sets of HDMI and RGB inputs.
A separate audio output enables sound to be output when the projector power is turned off.
ET-YFB100G input can be selected with the remote control of a Panasonic projector with DIGITAL LINK compatibility.
Outputting High-Quality Images in Their Optimal Form
Digital transmission allows clear image and sound quality without any degradation even over long distances.
Digital Cinema Reality converts interlaced motion image signals into beautifully smooth progressive images.
PC signals are automatically resized and output in the optimal resolution to match the projector panel resolution.
The Auto Setup function automatically distinguishes the input signal and adjusts it to output the optimal angle of view.
3D video format transmission is supported (Pass Through mode only)
- ET-YFB100G input can be selected with the remote control of a Panasonic display with DIGITAL LINK compatibility.
- A separate audio output enables sound to be output when the display power is turned off.
- Abundant input terminals, including two sets of HDMI and RGB inputs.
- Transmission up to 100m
- Simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.
Product Type: Video Extender Transmitter
Transmitter Height: 1.73"
Transmitter Width: 8.27"
Transmitter Depth: 98.43"
Transmitter Weight (Approximate): 2.54 lb
Brand Name: Panasonic
Manufacturer: Panasonic
Product Model: ET-YFB100G
Product Name: Digital Interface Box - Simple AV Transmission System
Manufacturer Part Number: ET-YFB100G
Manufacturer Website Address: http://www.panasonic.com
Package Contents:
- Digital Interface Box - Simple AV Transmission System
- 1 x AC Adapter
- 3 x Power Cord 2m
- 1 x AC Power Cord Holder
- 2 x Mounting Brackets for Rack or Countertop Installation
- 1 x Mounting Bracket for Rack Installation
- 6 x Countersunk Screws
- 4 x Legs
- 4 x Screws for Installing Legs
