Support one-way POC function. The transmitter is powered on by the receiver through the CAT cable
Easily Extracts and Splits Audio Signals
Simultaneously use Coaxial and Optical outputs at the Receiver end. However, only 1 input source can be used at the Transmitter end
HDMI 2.0, HDCP 2.2 Compliant
Includes 100-240 50/60 Hz auto-switching power supply for use anywhere in the world
Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty

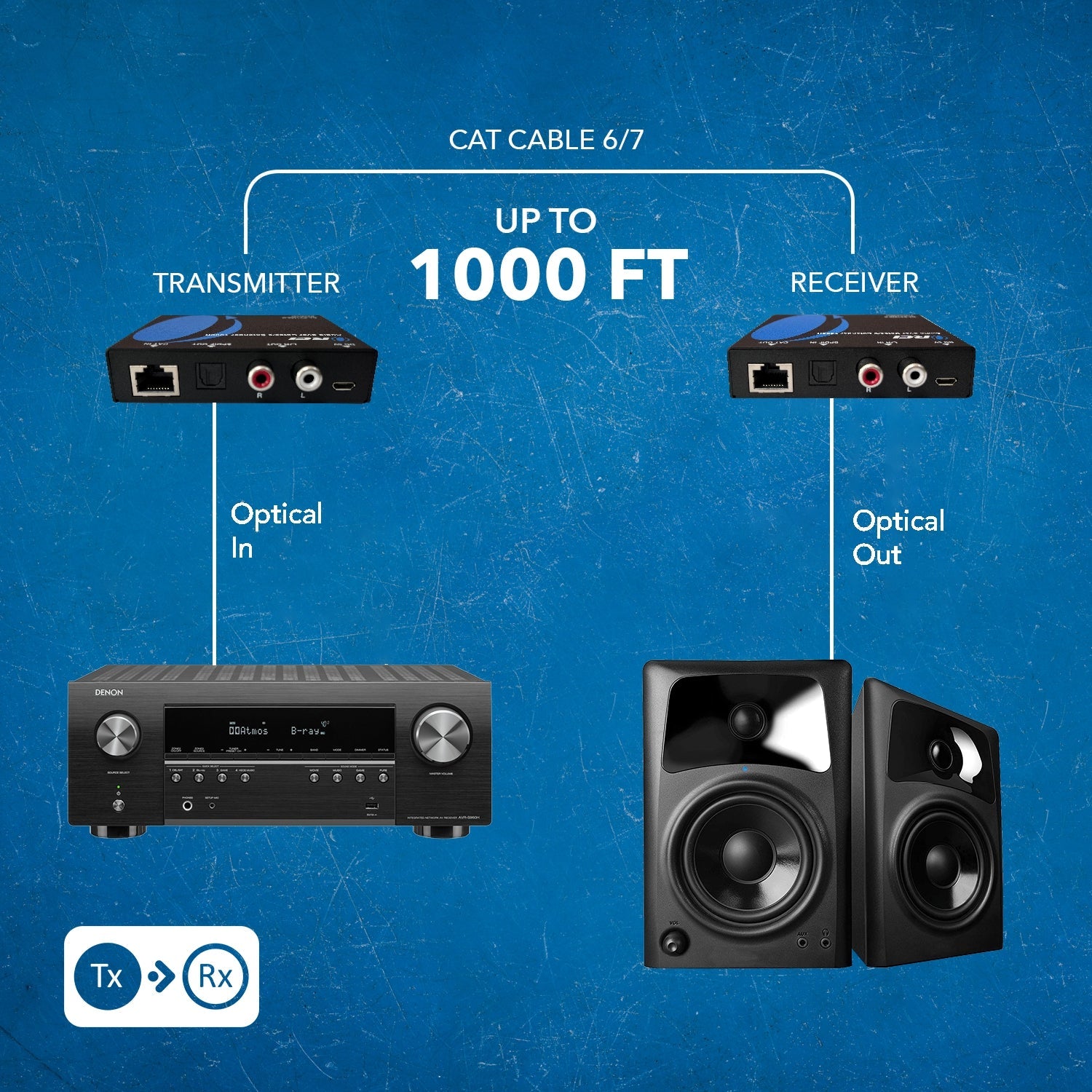

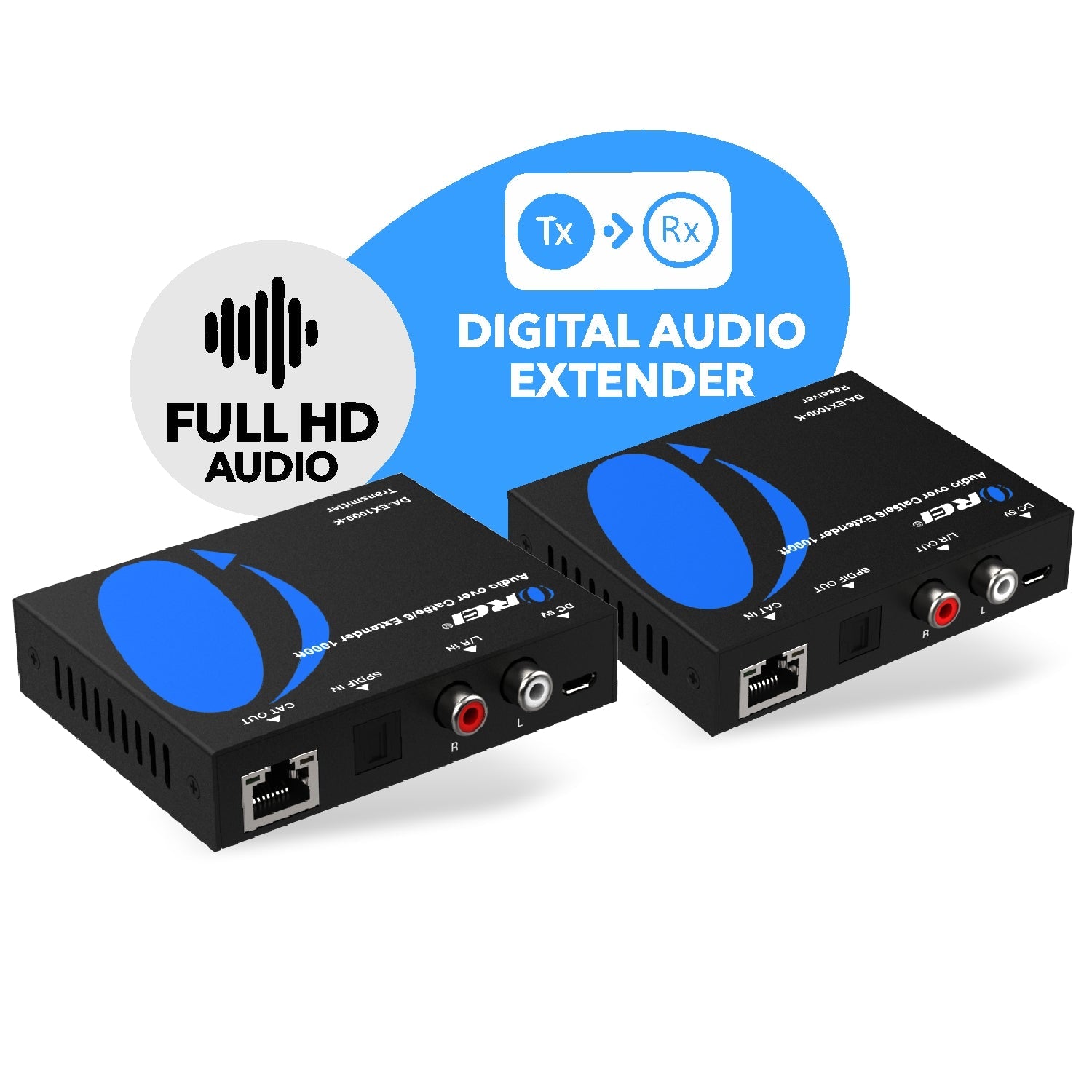

The OREI DA-EX1000-K Digital Audio Extender box allows you to transmit up to 192K audio signal up to 330 feet, 96K up to 500 feet and 48K up to 1000 feet. This will allow you to keep your media devices in your media closet and still be able to listen to great audio through your home theater or spears remotely.
Perfect for Home Theater Rooms, Living Room, Family Room and other Media Centers. Supports coaxial and optical Toslink digital audio 5.1, Dolby Digital 5.1, DTS-HD 5.1, DTS-HD, and PCM (NOTE: DOES NOT support DTS-HD Mater or Dolby TrueHD 7.1 Audio formats)
[summary]
Optical/Coxial Digital Audio Extender
Supports SPDIF Optical Toslink Digital Audio and Coxial 5.1 Channel

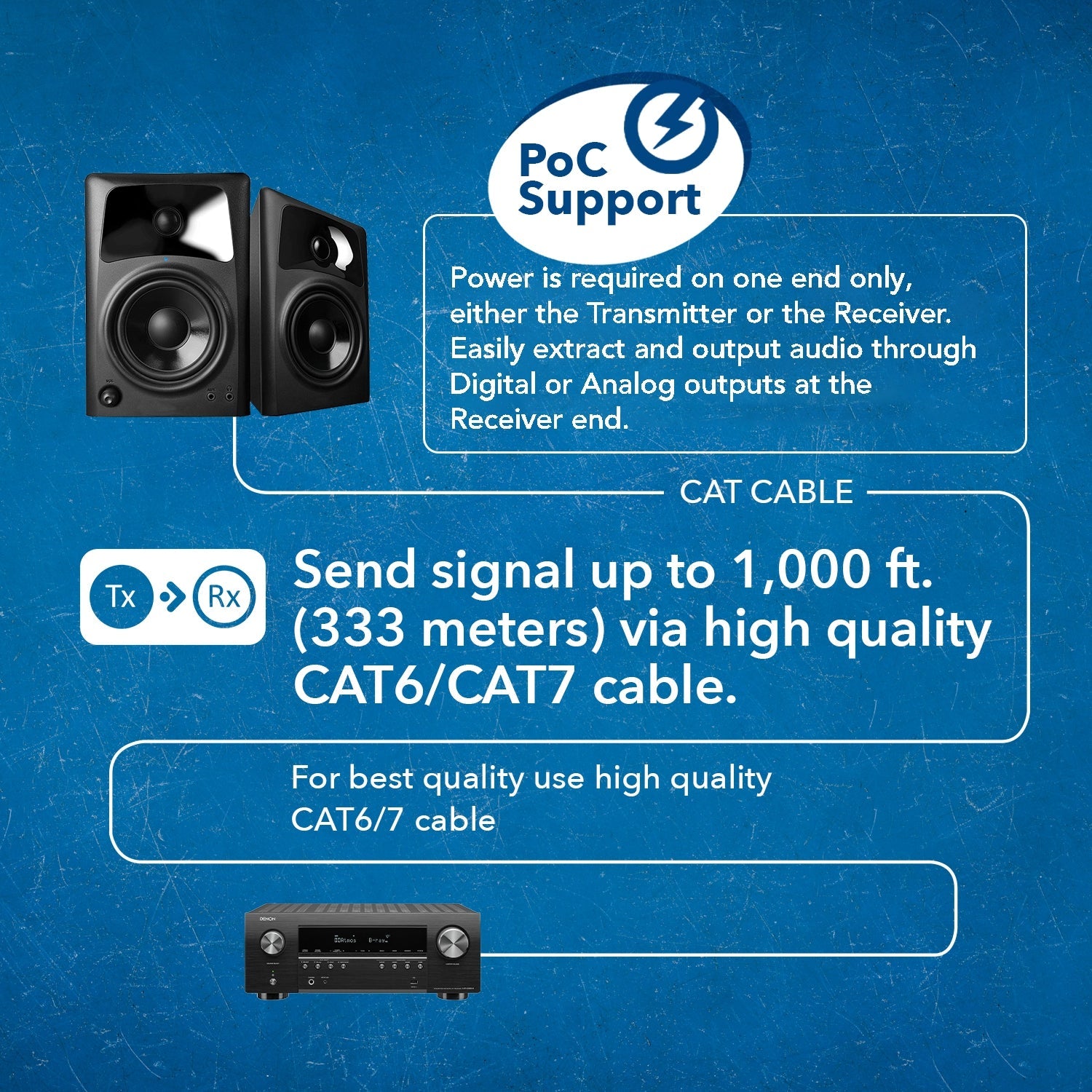

One-Way Power Over Cable (PoC)
[/summary]
[tab]
AUDIO AND VIDEO

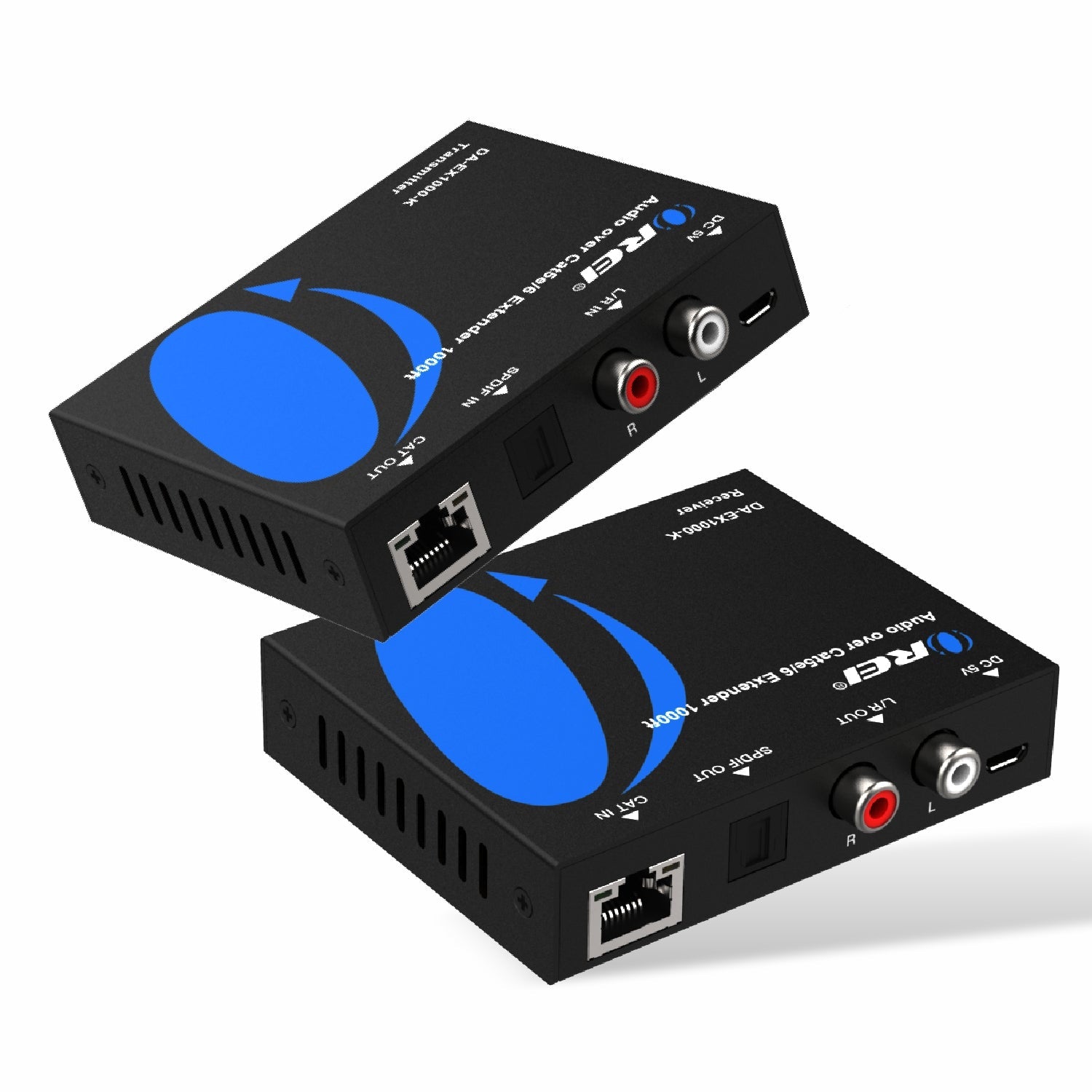

Transmitter:
INPUT PORTS:
1x Optical (Toslink)
1x Coaxial SPDIF RCA
OUTPUT PORTS:
1x RJ45
Receiver:
INPUT PORTS:
1x RJ45
OUTPUT PORTS:
1 × Optical (Toslink)
1x Coaxial SPDIF RCA
1x Analog Stereo 3.5mm Audio Jack
EXTENDING DISTANCE
1000 Feet
AUDIO OUTPUT
Supported Audio Formats:
LPCM, DTS, Dolby Digital and Dolby Digital Plus when used as a straight digital in/digital out extender
Sample Rates:
32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 1000 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
[/tab1]
[shortdes]
Optical/Coxial Digital Audio Extender

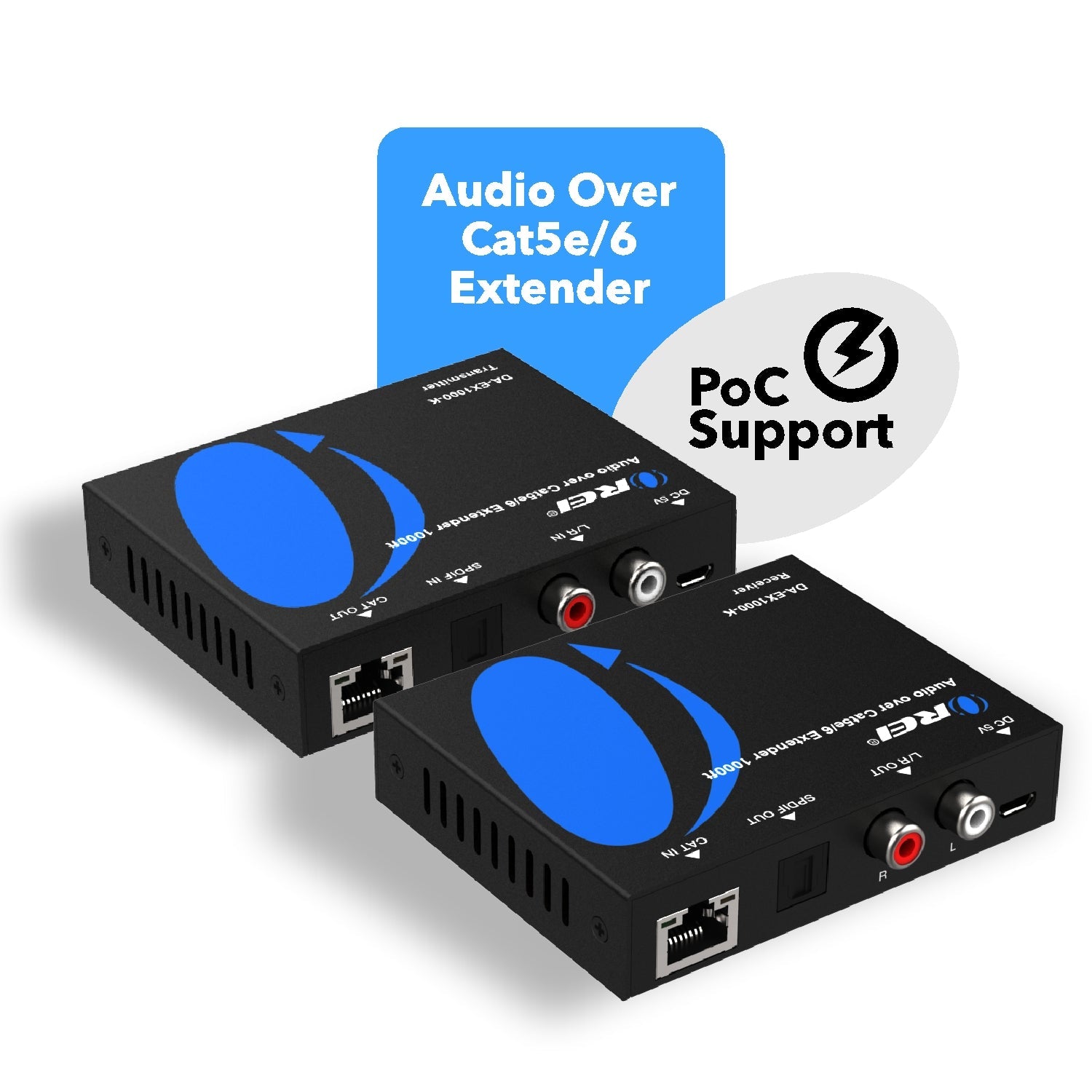

Supports one-way PoC function (from receiver to transmitter)
Supports SPDIF Optical Toslink Digital Audio and Coxial 5.1 Channel
[/shortdes]
General Information
UPC
850008956874
