Ethernet/Cellular (LTE), Serial (RS-232/RS-422/RS-485), VPN tunnels, Encryption, Antennas

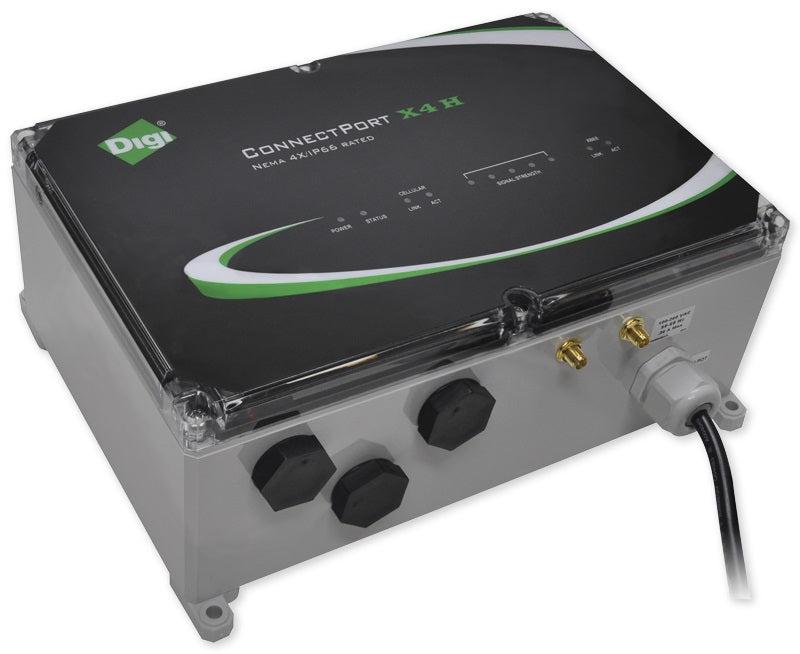

Digi X4H-Z1U-L301-US. Device type: Cellular network gateway. Ethernet LAN data rates: 10,100 Mbit/s. Data network: 2G, 3G, GSM bands supported: 800,1900 MHz, UMTS bands supported: 850,1700,2100 MHz. Serial interface type: RS-232. Safety: UL 60950, CSA 22.2 No. 60950, EN60950, Certification: CE, FCC, AS/NZS CISPR 22, EN55024, EN55022
Remote M2M networking gateways designed for commercial grade and rugged outdoor applications
ConnectPort X4 customizable cellular M2M gateways offer a variety of LAN/WAN interface options for end-toend networking of remote devices. The gateways include comprehensive IP protocols and IPSec VPN support for highend routing and security. The easy DIA/Python development environment enables custom applications to run locally while interfacing across cellular networks for WAN connectivity to a centralized server.
ConnectPort X4 gateways feature a compact commercial grade enclosure or an optional outdoors IP66/NEMA 4X enclosure. Interface options include Ethernet, serial and ZigBee/RF for flexible connectivity to virtually any remote device.
All ConnectPort X4 gateways feature an end-to-end development environment using comprehensive Digi ESP™ IDE and DIA/Python programming languages. Digi Remote Manager® add secure, scalable cloud based management and web services integration for a complete remote asset platform.
General Information
UPC
663072963149
