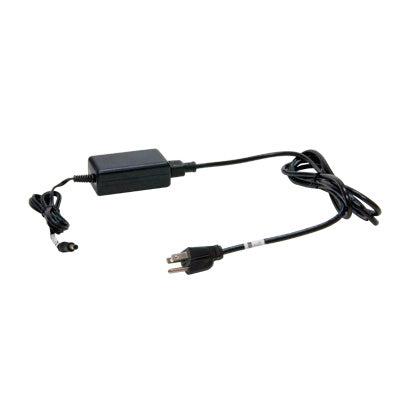

AC Power Supply - 12VDC, Extended Temp. NA input plug. Compatibility: WR41(v2)
Digi 76000752. Output power: 12 W, Output voltage: 12 V, Output current: 1 A. Product colour: Black. Cable length: 3.05 m, Width: 57 mm, Depth: 93 mm
Input Specifications:
- Rated input voltage rating: 100VAC to 240VAC;
- Input frequency: 47Hz to 63Hz;
- Rated input current: 0.4A (rms) max. for 115VAC, 0.2 A (rms) max. for 230VAC;
- Max. in-rush current: 25A MAX. @ 115VAC, 50A max. @ 230Vac at 25℃ ambient cold start;
- Input Plug Type: NEMA 5-15P (NA);
- Leakage current: 1.0mA max @230Vac.
Output Specifications:
- Output Voltage: 12VDC;
- Load current: 1.0A;
- Output Plug: 9.5 x 5.5 x 2.1mm locking barrel plug;
- Max. output power: 12 watts continuous.
