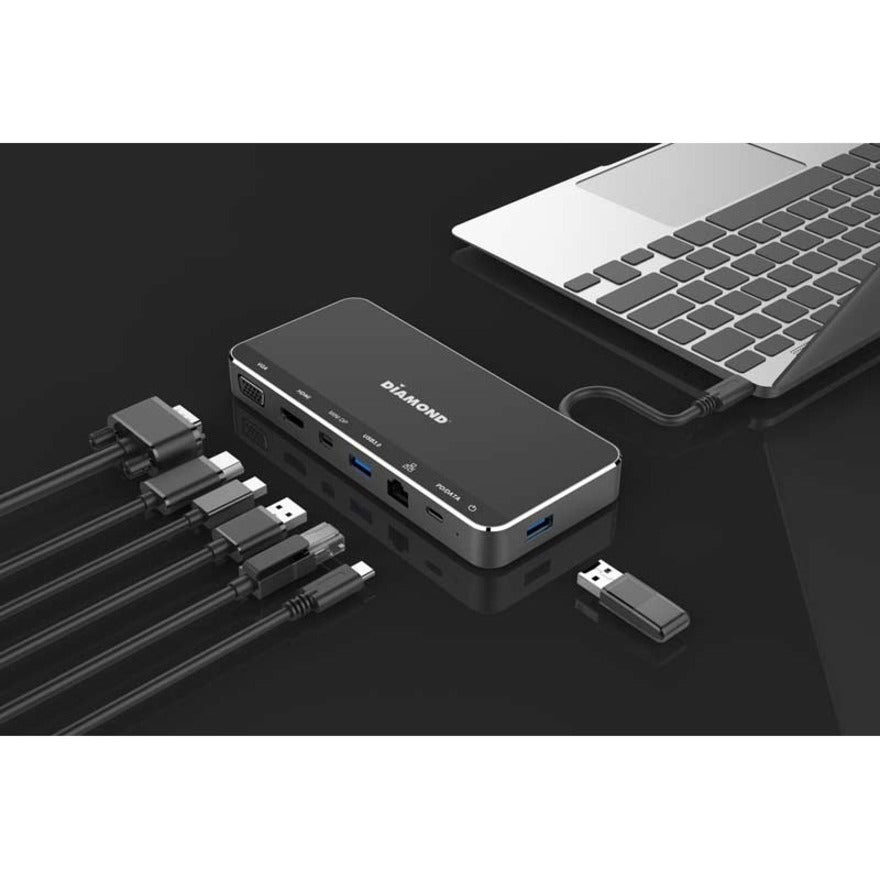

DIAMOND Multimedia USB C Triple Display Mini MST Dock (UD300C)
Thunderbolt 3 Docking Station
Diamond USB C Triple Display Mini MST Dock, Mini DP, HDMI, VGA, USB 3.02, Gigabit Ethernet Charge your laptop with Power Delivery USB type C port, up to 20V 3A. Mirror/Extend display support. Connects multiple devices to your laptop through one connection. Compact Design, built in USB C cable for easy travel. Compatible with Mac, Windows, laptops with USB C ports UD300C
In addition, the Diamond TB3MDS is compatible with Thunderbolt 3-Certified Mac and Windows laptops equipped with a Thunderbolt 3 port. It's compact design makes it travel friendly, use at home and at the office.
Diamond Triple Display Mini MST Dock - Thunderbolt 3 Docking Station Universal Connectivity
The Diamond UD300C Triple Display Dock is compatible with USB Type C 3.1 and Thunderbolt 3 type C ports for Mac and Windows laptops equipped w h a USB 3.1 Type C port. Its compact design makes it travel friendly, use at home and at the office.

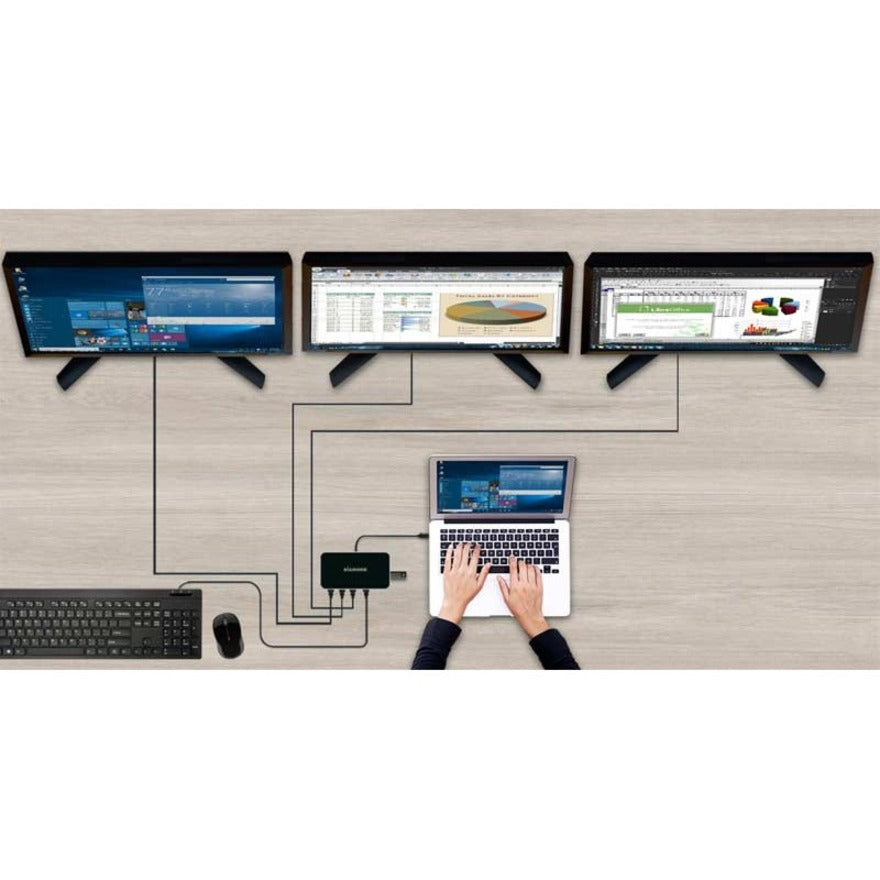

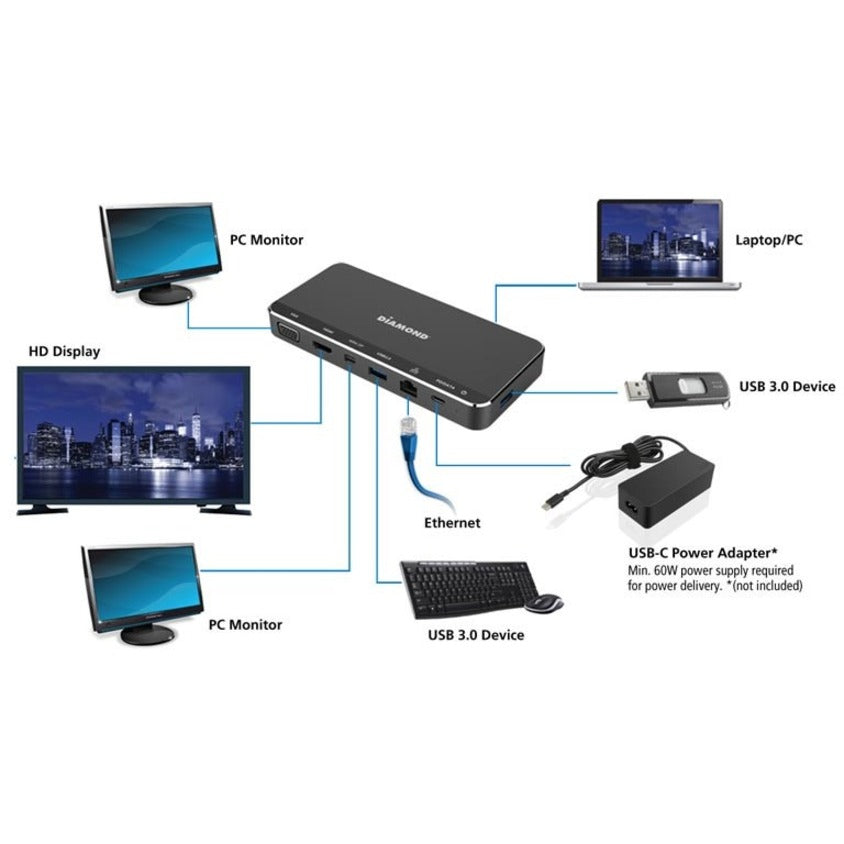

- Connect multiple devices to your laptop through one connection, including dual 4K Monitor support, USB sticks, USB Mouse/Keyboards, Wired Ethernet Internet Connection, External Hard Drives and more. Supports Mini DP, HDMI and VGA video out.
- This dock supports power deliver and can power your laptop by connecting your existing Power Supply to the dock (Your existing Power Supply must support a min. of 60W). Contact your PC manufacture if you need to upgrade your existing Power Supply.
- 2 x USB3.1 Gen1 Type-A port, data transfer speed up to 5Gbps 1 x USB 3.1 Gen1 Type-C port, data transfer speed up to 5Gbps and support USB Power Delivery, allow you to charge your computer while using the hub simultaneously. Compatible with USB Power Delivery, maximum power output up to 20V3A min 60W Power supply required not included
- 1 x Mini DP 1.2 port, supports 4K 30Hz resolution, 1 x HDMI 1.4 port, supports 4K 30Hz resolution 1 x VGA port, supports 1920*1080P resolution MST supports 3 displays in extended mode simultaneously, SST mode supports 1 extended and 2 mirrored simultaneously.
- Gigabit Ethernet provides a fast and stable internet connection Supports IPv4 / IPv6 network, Wake-On-LAN, Full Duplex and power management
Triple Display Mini MST Dock Features:
- 2 x USB3.1 Gen1 Type-A port, data transfer speed up to 5Gbps
- 1 x USB 3.1 Gen1 Type-C port, data transfer speed up to 5Gbps and support USB Power Delivery, allow you to charge your computer while using the hub simultaneously. Compatible with USB Power Delivery, maximum power output up to 20V3A min 60W Power supply required not included.
- 1 x Mini DP 1.2 port, supports 4K 30Hz resolution
- 1 x HDMI 1.4 port, supports 4K 30Hz resolution
- 1 x VGA port, supports 1920*1080P resolution
- Support Multi-Stream Transport (MST) function, provide DisplayPort / HDMI/ VGA Port connect 3 monitors for extend display mode or mirror display mode
- Gigabit Ethernet provides a fast and stable internet connection Supports IPv4 / IPv6 network, Wake-On-LAN, Full Duplex and power management
Product Type: Docking Station
Brand Name: DIAMOND
Manufacturer: Diamond Multimedia, USA
Product Model: UD300C
Product Name: Multimedia USB C Triple Display Mini MST Dock (UD300C)
Manufacturer Part Number: UD300C
Manufacturer Website Address: http://www.diamondmm.com
Package Contents:
- Multimedia USB C Triple Display Mini MST Dock (UD300C)
- User Guide
Limited Warranty: 2 Year
Weight (Approximate): 8 oz
