dbx 12x6 Digital Zone Processor
The ZonePRO 1261m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus.

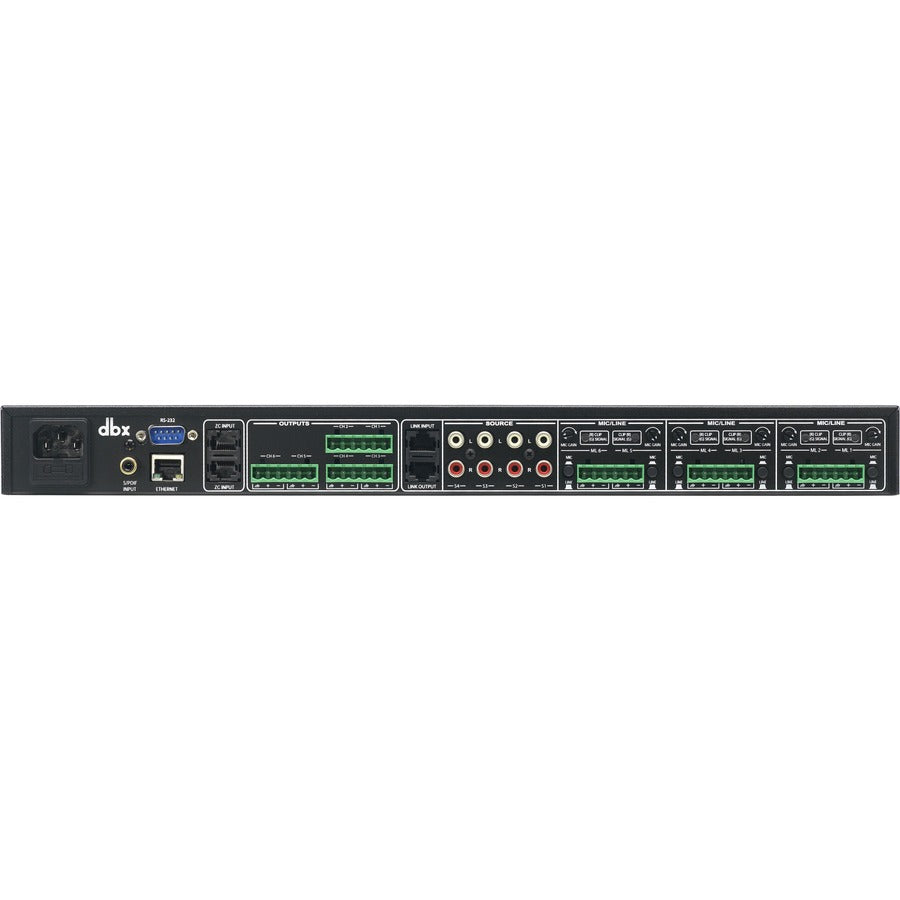

The 1261m features a total of 12 inputs and six outputs. Inputs include six balanced mic/line switchable terminal block inputs, four mono-summed pairs of unbalanced RCA inputs and one S/PDIF input for up to two digital channels. Hardware-controlled microphone gain allows adjustment of microphone gain per channel.
The 1261m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth®, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.
A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required.
The front panel of the 1261m features a power status LED, a network traffic LED, and an RS-232 control port.
Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control.
- 12 Inputs / 6 Outputs
- 6 Balanced Mic/Line Inputs
- 4 Unbalanced, Mono-Summed RCA Input Pairs
- S/PDIF Input
- Microphone Gain per Channel
- Pre-Configured Architecture
- Two Configurable Input Insert Positions
- One Configurable Output Insert Position
- AutoWarmth® per Output Zone
- Link Bus
- Optional ZC Controllers
- Ethernet Control
- Serial Control
- Third Party Control
- Wizard-Driven Configuration
Product Type: Audio Processor
Brand Name: dbx
Form Factor: Wall Mountable
Manufacturer: Harman International Industries, Inc
Product Model: 1261m
Product Name: 12x6 Digital Zone Processor
Product Line: ZonePRO
Manufacturer Part Number: DBX-1261MVVM
Manufacturer Website Address: http://www.harman.com
Weight (Approximate): 6.20 lb
