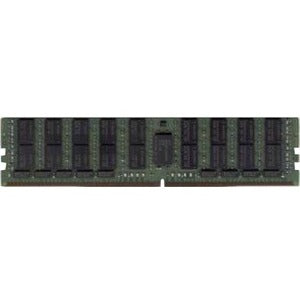

Dataram Value Memory 64GB DDR4 SDRAM Memory Module
DVM24L4T4/64GB is a load-reduced 8Gx72 memory module, which conforms to JEDEC's DDR4-2400, PC4-2400 standard. The assembly is Quad-Rank. Each rank is comprised of nine 4Gbx4 DDR4-2400 SDRAMs.
One EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- 288-pin JEDEC-compliant DIMM, 133.35 mm wide by 31.25 mm high
- Operating Voltage: VDD/VDDQ = 1.2V (1.14V to 1.26V)
- VPP = 2.5V (2.375V to 2.75V)
- VDDSPD = 2.25V to 2.75V
- I/O Type: 1.2 V signaling
- On-board I2C temperature sensor with integrated Serial Presence-Detect (SPD) EEPROM
- Data Transfer Rate: 19.2 Gigabytes/sec
- Data Bursts: 8 and burst chop 4 mode
- ZQ Calibration for Output Driver and On-Die Termination (ODT)
- Programmable ODT / Dynamic ODT during Writes
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: LRDIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: Value Memory 64GB DDR4 SDRAM Memory Module
Product Line: Value Memory
Manufacturer Part Number: DVM24L4T4/64GB
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Limited Warranty: Lifetime
