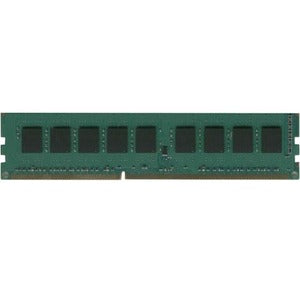

Dataram 8GB DDR3 SDRAM Memory Module
DVM16E2S8/8G is an unbuffered 1Gx72 memory module, which conforms to JEDEC's DDR3, PC3- 12800 standard. The assembly is Dual Rank. Each rank is comprised of nine 512Mx8 DDR3 SDRAMs.
One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- 8 GB memory allows you to have more programs open at a time
- DDR3 SDRAM interface synchronizes electrical and clock signals for an efficient data transfer rate
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 1.2"
Manufacturer: Dataram Corporation
Product Name: 8GB DDR3 SDRAM Memory Module
Manufacturer Part Number: DVM16E2S8/8G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 240-pin
