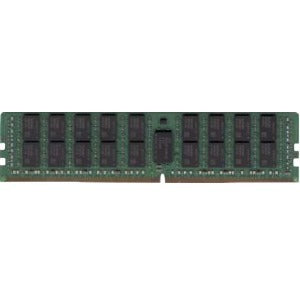

Dataram 64GB DDR4 SDRAM Memory Module
DVM29L4T4/64G is a load-reduced 8Gx72 memory module, which conforms to JEDEC's DDR4-2933, PC4-2933 standard. The assembly is Quad-Rank. Each rank is comprised of nine 4Gbx4 DDR4-2933 SDRAMs.
One EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- 64 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- DDR4-2933/PC4-23400 operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
- Up to 2933 MHz speed for smooth computer performance
Product Type: RAM Module
Brand Name: Dataram
Form Factor: LRDIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 64GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DVM29L4T4/64G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
