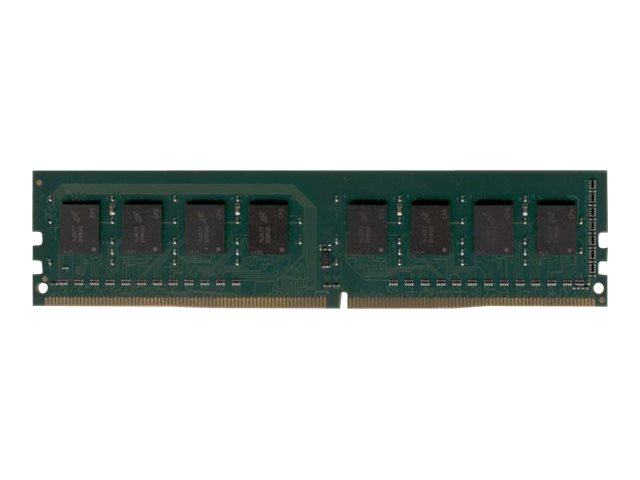

Dataram 4GB DDR4 SDRAM Memory Module DTM68103-H

Dataram 4GB DDR4 SDRAM Memory Module - 4 GB (1 x 4GB) - DDR4-2133/PC4-17000 DDR4 SDRAM - 2133 MHz - CL15 - 1.20 V - Non-ECC - Unbuffered - 288-pin - DIMM

DTM68103-H is an unbuffered 512Mx64 memory module, which conforms to JEDEC's DDR4-2133, PC4-2133 standard. The assembly is Single-Rank containing eight Hynix 512Mx8 DDR4-2133 SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
