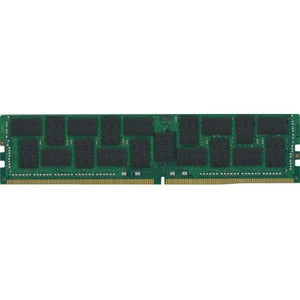

Dataram 32GB DDR4 SDRAM Memory Module
DTM68307-H is a load reduced 4Gx72 memory module, which conforms to JEDEC's DDR4-2666, PC4-2666 standard. The assembly is Dual-Rank containing - eighteen SKHynix 2Gbx4 DDR4-2666 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- Whether you are playing games, using heavy loaded OS or video editing software, the LRDIMM 32 GB of memory will make them run in a flash
- DDR4 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
- Up to 2666 MHz speed with CL19 latency for playing the latest games and using heavy software
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Dataram
Form Factor: LRDIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 32GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTM68307-H
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Limited Warranty: Lifetime
Thickness: 156.7 mil
