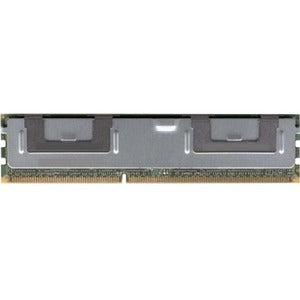

Dataram 32GB DDR3 SDRAM Memory Module
DVM16L4L4/32G is a load reduced 4Gx72 memory module, which conforms to JEDEC's DDR3L, PC3L-12800L standard. The assembly is Quad Rank. The ranks are distributed across thirtysix 2Gbx4 DDP (Dual Die Pack) DDR3 SDRAMs.
One EEPROM is used for Serial Presence Detect and a an Isolation Memory Buffer, which enables higher system memory bandwidth at DDR3 speeds up to 1600 MT/s. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- 32 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
- DDR3 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: LRDIMM
Length: 1.2"
Manufacturer: Dataram Corporation
Product Name: 32GB DDR3 SDRAM Memory Module
Manufacturer Part Number: DVM16L4L4/32G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 240-pin
