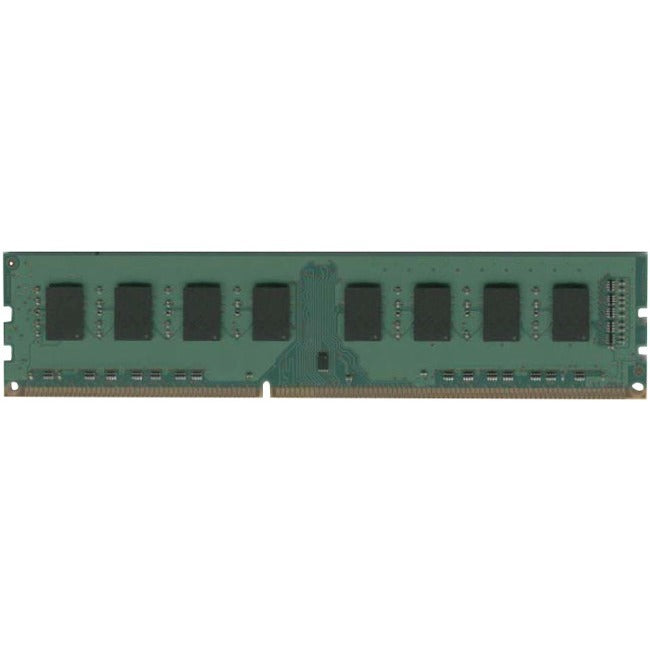

Dataram 2GB DDR3 SDRAM Memory Module
DVM16U1S8/2G is an Unbuffered 256Mx64 memory module, which conforms to JEDEC's DDR3, PC3-12800 standard. The assembly is single Rank. The rank is comprised of eight 256Mx8 DDR3 SDRAMs.
One EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
- 2 GB of memory to refine your computer's performance
- 240-pin-pin DDR3-1600/PC3-12800 interface synchronizes electrical and clock signals for an efficient data transfer rate
- No matter how heavy and numerous the applications that you are using, 1600 MHz memory speed with Unbuffered signal and CL11 latency will run them smoothly
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: REACH
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 2GB DDR3 SDRAM Memory Module
Manufacturer Part Number: DVM16U1S8/2G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 240-pin
Limited Warranty: Lifetime
Thickness: 157.5 mil
