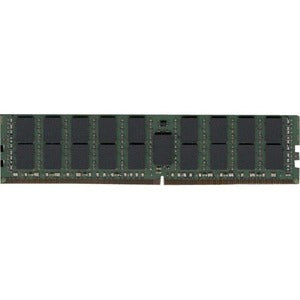

Dataram 16GB DDR4 SDRAM Memory Module
These HPE compatible memory options are registered memory which conform to JEDEC's DDR4-3200, PC4- 3200AA standard.
One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 85C.
- 288-pin JEDEC-compliant DIMMs
- 133.35 mm wide by 31.25 mm high (5.25" x 1.23")
- Data Transfer Rate: 25.6 Gigabytes/sec
- Operating Voltage: 1.2V (1.14V~1.26V)
- Fully RoHS Compliant
- Thermal Sensor
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR4 SDRAM Memory Module
Manufacturer Part Number: P07640-H21-DR
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Packaged Quantity: 1
Thickness: 156.7 mil
