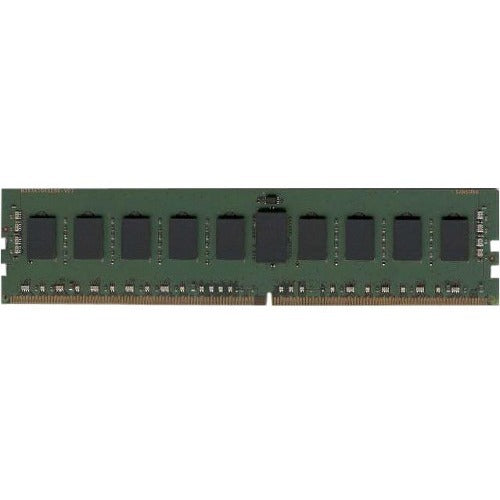

Dataram 16GB DDR4 SDRAM Memory Module
DVM32R1T4/16G is a registered 2Gx72 memory module, which conforms to JEDEC's DDR4- 3200AA, PC4-25600 standard. The assembly is Single-Rank, comprised of eighteen 2Gbx4 DDR4- 3200 SDRAMs.
One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- 16 GB capacity is enough to execute all memory hungry programs simultaneously
- 288-pin-pin DDR4-3200/PC4-25600 operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
- Up to 3200 MHz speed with Registered signal for smooth computer performance
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DVM32R1T4/16G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
