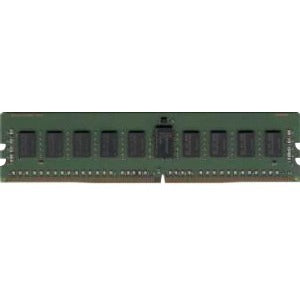

Dataram 16GB DDR4 SDRAM Memory Module
DVM26R2T8/16Gis a registered 2Gx72 memory module, which conforms to JEDEC's DDR4-2666, PC4-2666standard. The assembly is Dual-Rank. Each rank is comprised of nine 1 Gbx8 DDR4-2666 SDRAMs.
One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- DIMM 16 GB capacity is enough to execute all memory hungry programs simultaneously
- 288-pin-pin DDR4-2666/PC4-21300 interface synchronizes electrical and clock signals for an efficient data transfer rate
- No matter how heavy and numerous the applications that you are using, 2666 MHz memory speed with Registered signal and CL19 latency will run them smoothly
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 16GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DVM26R2T8/16G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 288-pin
Limited Warranty: Lifetime
