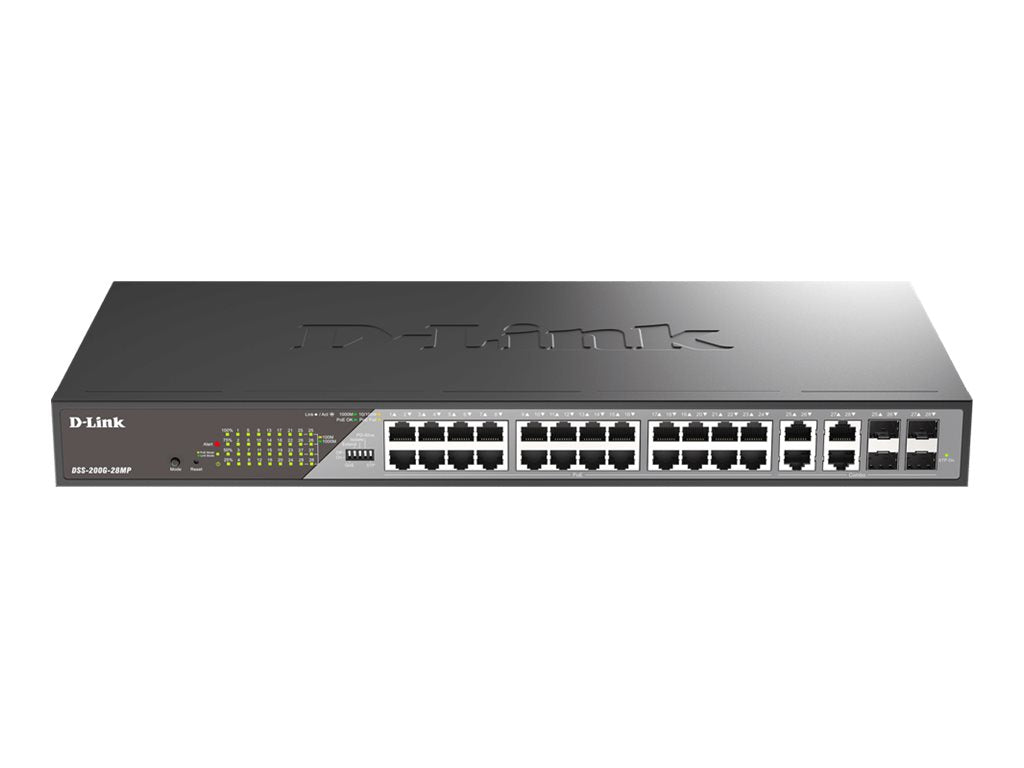

D-Link DSS 200G-28MP - Switch - managed - 24 x 10/100/1000 (PoE) + 4 x combo 1000Base-T - rack-mountable - PoE (370 W)
-
Easy to deploy
An interactive setup wizard removes the complexity from installing the switch for the first time. It allows you to choose the web interface mode (Standard or Surveillance), the IP address allocation method (static or DHCP), and the administrator username and password. This completes the initial setup of the switch and automatically configures features such as Loop Detection, SNMP and Surveillance VLAN. An informative quick start guide shows you how to use the network diagram, and a network overview is displayed on the next page. D-Link and 3rd party devices are automatically detected and shown on the network overview page for easy administration.
-
Surveillance traffic optimization
The DSS-200G series supports the automatic Surveillance VLAN feature. This automatically detects surveillance devices and puts them into the Surveillance VLAN, segmenting their traffic from the rest of the network. The feature enhances the security of the data and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware and reducing maintenance costs.
-
Intuitive web interface
A redesigned Surveillance interface makes surveillance features more accessible than ever. The choice between Standard and Surveillance modes can be made during switch setup, allowing the user to choose the interface that best suits their requirements. A network overview shows which devices are connected to which ports, and ONVIF device support allows the switch to recognize both D-Link and third party IP cameras and Network Video Recorders (NVRs). With monitoring, management, and troubleshooting tools built into a single interface, the DSS200G series provides everything you need to manage your surveillance network.
-
Easy troubleshooting
The DSS-200G series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops in the network, where multiple devices have been connected to each other and create a forwarding loop. The switch will identify the port causing the loop and shut the affected port down to avoid network instability. Cable Diagnostics can be used to remotely test the quality of copper cables, recognize the cable type, and detect cable errors.
-
PoE support
The DSS-200G series provides support for Power over Ethernet (PoE), reducing deployment time for IP cameras, VoIP phones, and access points. All switches in the DSS-200G series support IEEE 802.3af and 802.3at, providing up to 30 watts per port. This, combined with high power budgets, ensures all of your critical surveillance infrastructure can be powered from a single switch.
-
DIP switches for easy configuration
The DIP switches allow administrators to quickly deploy the switch for various application scenarios without having to apply the settings via the Web GUI. For example, the Extend setting on the DIP switch activates long-distance transmissions for connections up to 250 meters. The DIP switches are also easy access for personnel without IT knowledge to quickly adjust application settings.
The DSS-200G series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses. Support for high-powered Pan Tilt Zoom (PTZ) cameras, automatic Surveillance VLAN, and 6 kV surge protection make the DSS-200G series ideal for IP surveillance deployments. A redesigned interface, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your surveillance requirements.
- Easy to deploy
- Surveillance traffic optimization
- Intuitive web interface
- Easy troubleshooting
- PoE support
- DIP switches for easy configuration
