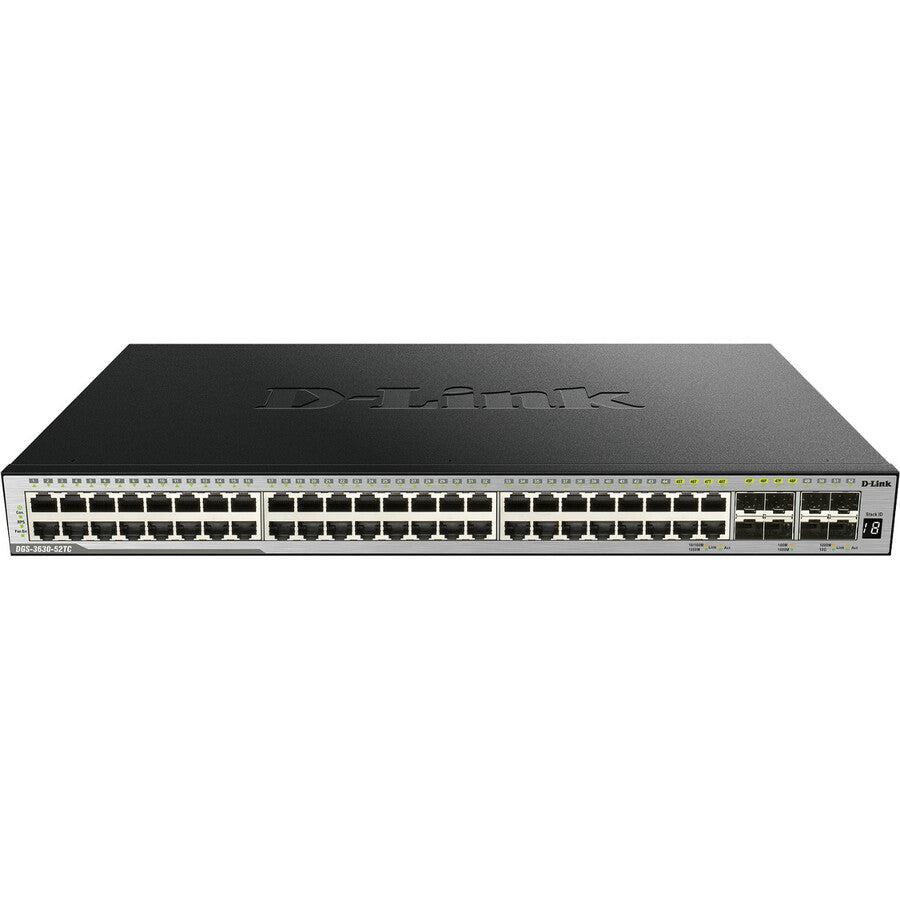

This Layer 3 Stackable Managed Gigabit PoE Switch is perfect for enterprise network administrators who need 52-port switching capacity with advanced power delivery capabilities. Our D-Link DGS-3630-52PC delivers:
-
48 port PoE switch functionality providing up to 740W total PoE+ budget
-
SDN-enabled architecture for software-defined networking flexibility
-
Server rack network switch design optimized for data center deployment
-
Stackable managed switching supporting up to 8 units for scalable growth
Key Features
-
Layer 3 routing protocols including OSPF, RIP, and static routing capabilities
-
Gigabit PoE+ delivery supporting IEEE 802.3at/af standards across 48 ports
- Advanced SDN-enabled features with OpenFlow 1.3 support
- Optimized for fiber ethernet switches connectivity via 4x 10GbE SFP+ ports
-
Stackable architecture with 80Gbps stacking bandwidth
-
Power over ethernet adapter functionality eliminating separate power supplies
- Enterprise-grade managed switches with comprehensive SNMP management
- Hot-swappable dual power supply support for mission-critical uptime
Technical Specifications
| Manufacturer |
D-Link |
| Model Number |
DGS-3630-52PC |
| Type |
Layer 3 Stackable Managed Gigabit PoE Switch |
| Port Configuration |
48 x 10/100/1000BASE-T PoE+ + 4 x 10GbE SFP+ |
| PoE Budget |
740W total PoE+ power (IEEE 802.3at/af) |
| Switching Capacity |
176 Gbps non-blocking |
| Layer 3 Features |
Static routing, RIP v1/v2, OSPF v2, IPv6 routing |
| SDN Support |
OpenFlow 1.3, REST API, JSON-RPC management |
| Stacking Technology |
Up to 8 units, 80Gbps bandwidth |
| Power Consumption |
98W (without PoE), 838W (maximum with PoE) |
| Form Factor |
1U rackmountable |
| Compatible Systems |
Enterprise networks, IP cameras, VoIP phones, wireless access points |
Frequently Asked Questions
Q: What makes this 48 port PoE switch ideal for enterprise deployments?
A: The DGS-3630-52PC provides 740W PoE+ budget across 48 ports, Layer 3 routing capabilities, and stackable design perfect for powering IP cameras, wireless access points, and VoIP phones in large-scale networks.
Q: How does SDN-enabled functionality benefit network management?
A: Yes, it's engineered with OpenFlow 1.3 support and REST API management. This enables software-defined networking capabilities, centralized control, and programmable network automation for modern enterprise environments.
Q: Can this Layer 3 stackable managed switch support fiber uplinks?
A: Four 10GbE SFP+ ports provide high-speed fiber connectivity — perfect for backbone connections and inter-switch linking with up to 40Gbps aggregate uplink capacity.
Q: What power over ethernet standards does this switch support?
A: Yes. The switch fully supports IEEE 802.3at (PoE+) and 802.3af (PoE) standards, delivering up to 30W per port for high-power devices like PTZ cameras and enterprise wireless access points.
