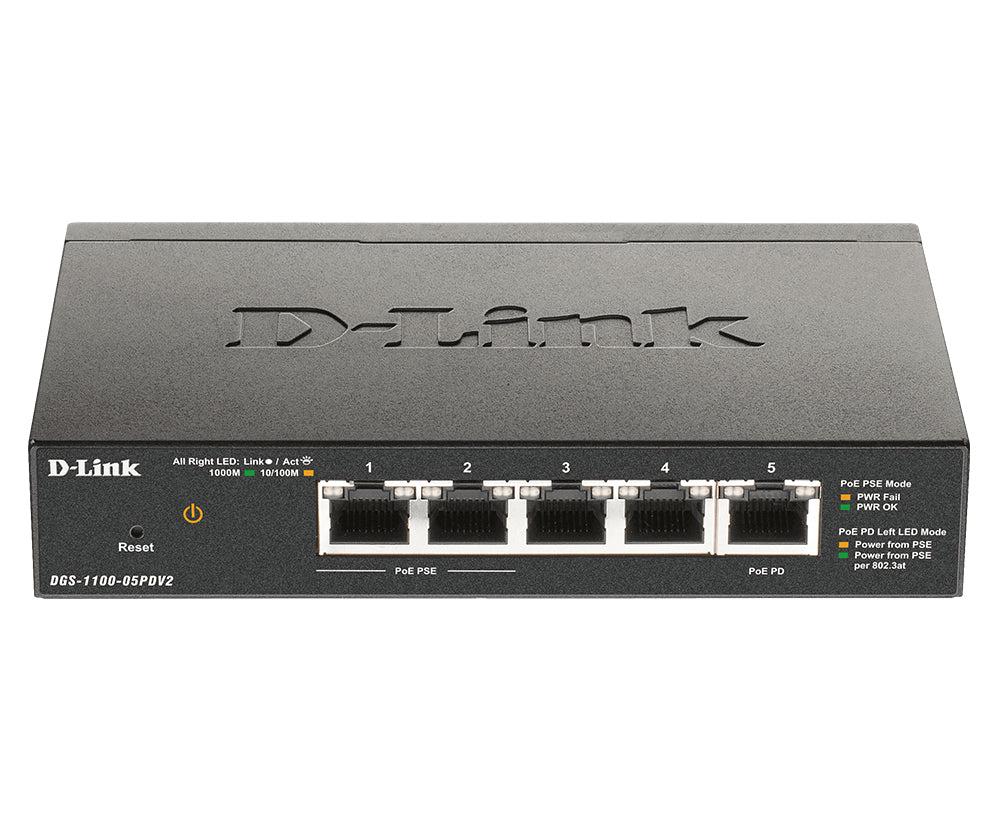

This D-Link DGS-1100-05PDV2 5-port gigabit PoE smart managed switch is perfect for small offices and home businesses that need intelligent network management with Power over Ethernet capabilities. Our solution delivers:
-
5 gigabit ethernet ports that provide high-speed connectivity for devices
-
Power over ethernet support for PoE-enabled devices like IP cameras and access points
-
Smart managed features optimization ensuring advanced network control
-
Compact desktop design for space-efficient deployment
Key Features
-
5 x 10/100/1000 Mbps ports to connect multiple devices
-
4 x PoE+ ports delivering up to 67W total power budget
-
Smart managed functionality with web-based configuration
-
VLAN support for network segmentation
-
Quality of Service features for traffic prioritization
-
Port mirroring capability for network monitoring
-
Energy-efficient design with IEEE 802.3az compliance
-
Fanless operation for silent desktop deployment
Technical Specifications
| Manufacturer |
D-Link |
| Model Number |
DGS-1100-05PDV2 |
| Type |
5-Port Gigabit PoE Smart Managed Switch |
| Port Configuration |
5 x 10/100/1000 Mbps (4 PoE+, 1 uplink) |
| PoE Standard |
IEEE 802.3at PoE+ (up to 30W per port) |
| Total PoE Budget |
67W |
| Switching Capacity |
10 Gbps |
| Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
8,000 entries |
| VLAN Support |
802.1Q VLAN (up to 32 static VLANs) |
| QoS |
4 hardware queues, traffic scheduling |
| Spanning Tree |
STP, RSTP, MSTP |
| Security |
802.1X authentication, ACL filtering |
| Management |
Web GUI, CLI, SNMP v1/v2c/v3 |
| Power Consumption |
Maximum 75W (with full PoE load) |
| Power Input |
External power adapter (100-240V) |
| Form Factor |
Desktop/wall-mountable |
| Dimensions |
6.1" x 3.9" x 1.0" (WxDxH) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Noise Level |
Fanless (0 dB) |
| Compatible Systems |
IP cameras, wireless access points, VoIP phones, small office networks |
Frequently Asked Questions
Q: What makes this switch ideal for small office deployments?
A: The D-Link DGS-1100-05PDV2 5-port gigabit switch combines smart managed features with PoE+ support in a compact desktop form factor, making it perfect for small offices that need to power IP cameras, wireless access points, and other PoE devices while maintaining advanced network management capabilities.
Q: How many PoE devices can this switch power simultaneously?
A: With 4 PoE+ ports and a 67W total power budget, this power over ethernet switch can power up to 4 devices simultaneously, with each port capable of delivering up to 30W for high-power devices like PTZ cameras or enterprise access points.
Q: What smart managed features are included?
A: This smart managed ethernet switch includes VLAN support for network segmentation, Quality of Service for traffic prioritization, port mirroring for monitoring, and 802.1X authentication for enhanced security, all configurable through an intuitive web interface.
Q: Can this switch function as a PoE extender?
A: Yes, the DGS-1100-05PDV2 can function as a PoE extender by receiving power and data through one port and extending PoE power to connected devices through the other ports, effectively extending the reach of PoE networks beyond the standard 100-meter cable limitation.
Q: How does the fanless design benefit office environments?
A: The fanless operation ensures silent operation at 0 dB, making this compact network switch ideal for deployment in quiet office environments, conference rooms, and other noise-sensitive locations without compromising performance.
Q: Is this switch suitable for IP camera installations?
A: Absolutely. The PoE+ support with 30W per port makes this switch perfect for powering IP cameras, including high-power PTZ models, while the VLAN capabilities allow for proper network segmentation to isolate camera traffic from other network data.
D-Link DGS-1100-05PDV2 5-port gigabit PoE smart managed switch featuring 67W power budget, VLAN support, fanless operation for small offices.
