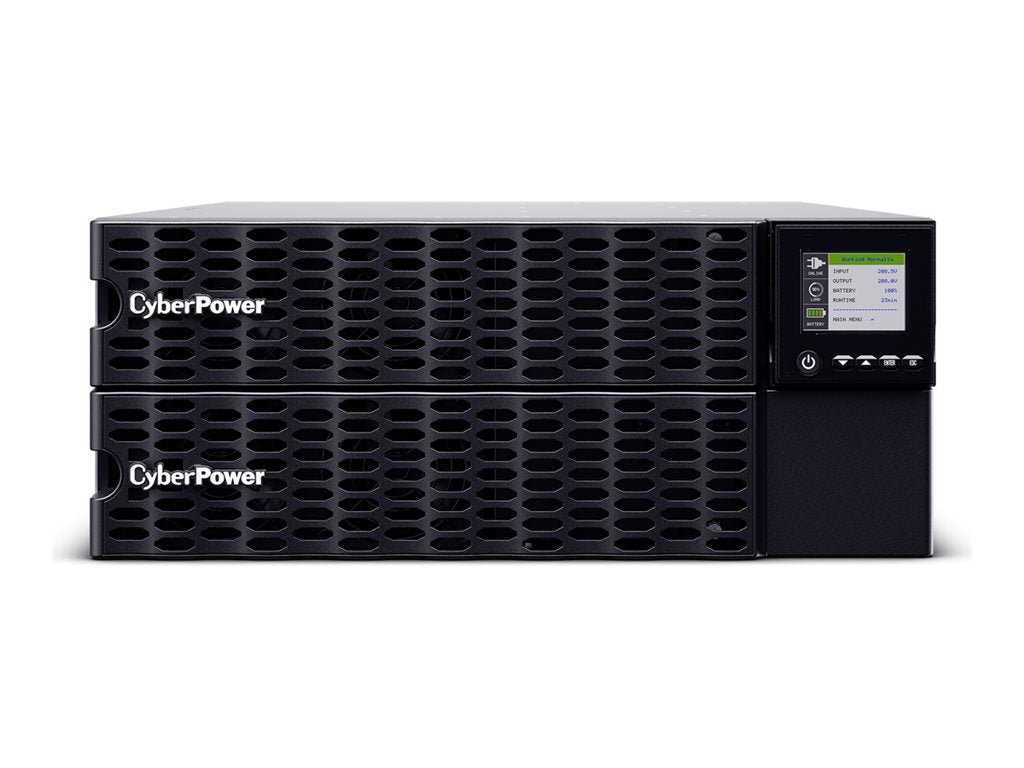

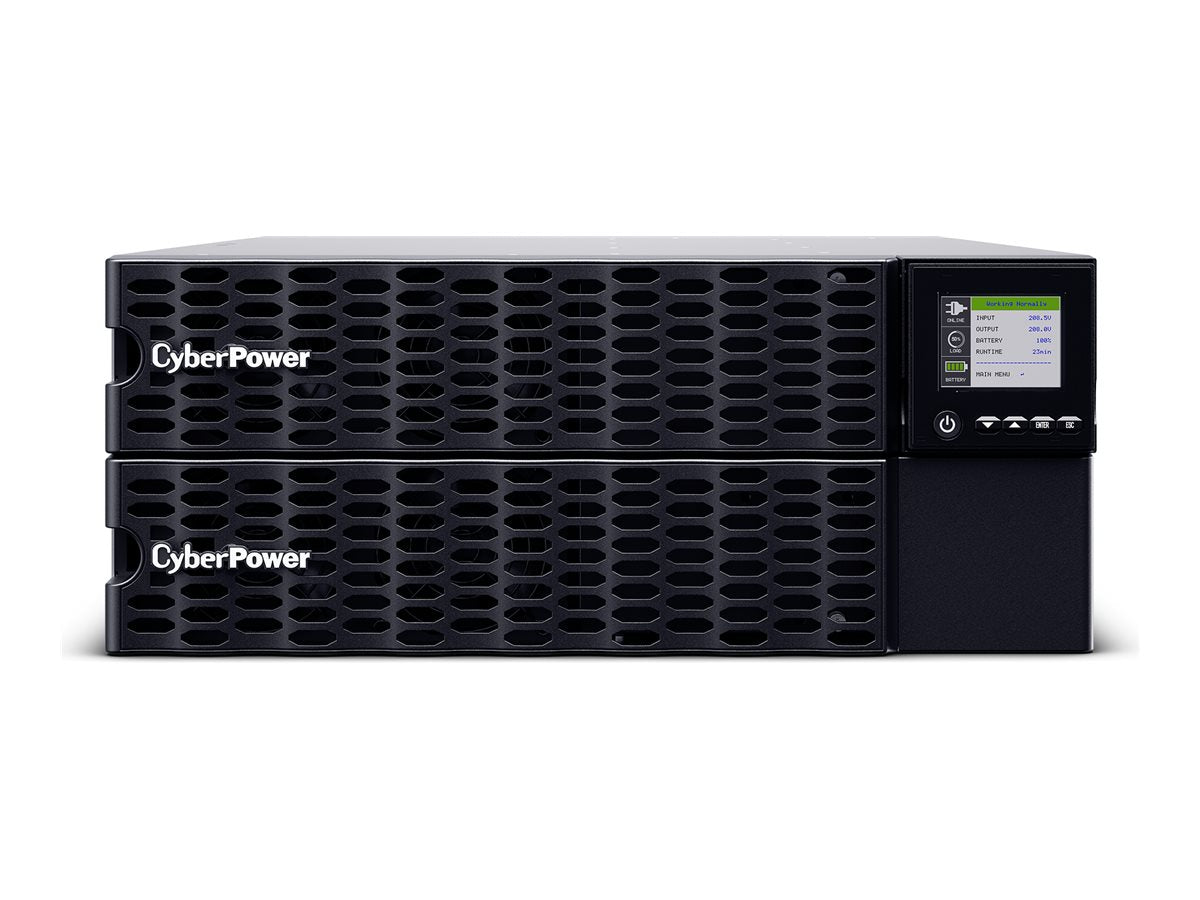

CyberPower Smart App Online OL10KRTHD - UPS (rack-mountable / external) - AC 200-240 V - 10000 Watt - 10000 VA - 9 Ah - 9 Ah - Ethernet, RS-232, USB - output connectors: 7 - 4U - unpainted, black
-
Double-conversion topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
-
Sine wave output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
-
Full matrix LCD control panel
Auto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.
-
Tool-less front panel
Tool-less front panel removal makes battery replacement easier.
-
Hot-swappable batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.
-
Smart Battery Management (SBM)
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
-
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
-
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs.
-
Hanging rack mount rail
Ensures easy installation and slides out safely with a safety catch.
-
Tamper-proof input circuit breaker
Ensures power is turned off using a tool to eliminate the risk of accidental powering off when not desired during service or maintenance.
-
EMI/RFI filters
Prevents electromagnetic and radio frequency interference to ensure clean power for connected equipment.
-
Energy Star certified and GreenPower UPS ECO Mode
Improves UPS efficiency > 98% reducing electrical and cooling costs.
-
Upgradeable UPS firmware
Keeps equipment running by eliminating downtime during UPS power maintenance.
-
Multiple language options
The LCD control panel can be configured in English, Spanish, French, and German for ease of use.
-
Critical and non-critical load banks
Maximizes the output of the UPS by scheduling non-critical loads to shut off allowing additional runtime for critical load outlets.
-
Emergency Power Off (EPO)
Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
-
Generator-compatible
Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
-
Converter mode
Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50 Hz or 60 Hz output on the LCD control panel.
-
USB and serial connectivity
Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
-
Audible alarms
Identifies when the UPS is running on battery power, overloaded, or has a low battery.
-

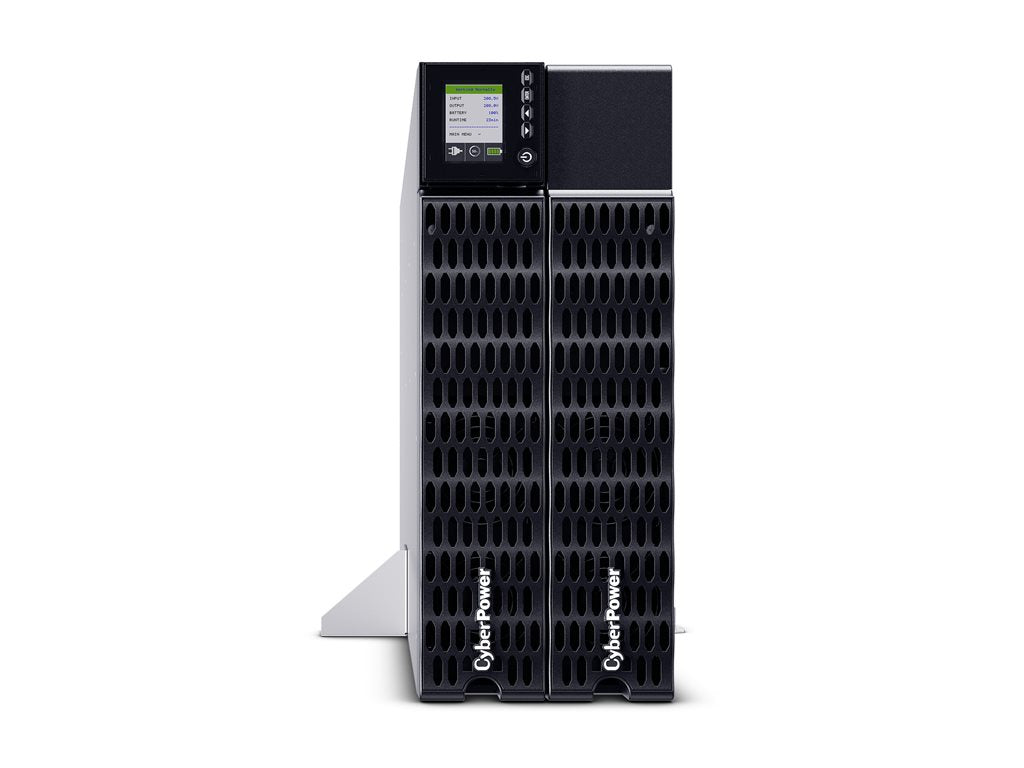

Rack/tower versatility
Allows for horizontal rack or vertical tower installation.
The CyberPower Smart App Online OL10KRTHD high-density design offers more
power in less space. In fact, it can be configured into 4U of rack space or
as a tower, compared to 6U for similar competitive UPS models –
giving you more room to grow. The OL10KRTHD features double-conversion
topology for seamless power protection and a pre-installed RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function,
color matrix LCD screen that is simple to set up and easy to use. The
color-coded alerts provide clear status of the UPS and the screen
orientation rotates automatically when placed into a tower configuration.
The OL10KRTHD ensures maximum efficiency and capacity output with a Power
Factor rating (PF) of 1. The energy-saving GreenPower UPS ECO Mode enables
> 98% efficiency while reducing power consumption and thermal
dissipation. The variable 7-speed fan provides automatic thermal
management, based on power load, to reduce noise.
The optional BP192VL2U01 Extended Battery Module (EBM) expands runtime and
up to ten EBMs can be connected in a daisy-chain to the UPS for more backup
power. Plus, it's all backed by a three-year warranty (including batteries)
and a $300,000 Connected Equipment Guarantee.
- Capacity: 10, 000 VA / 10, 000 W , High Density: 4U Size , Power Factor (PF): 1 , Topology: Double-Conversion , Waveform: Sine Wave
- Text | Double-Conversion TopologyProvides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
- Text | Sine Wave OutputKeeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
- Text | Full Matrix LCD Control PanelAuto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.
- Text | Toolless Front PanelTool-less front panel removal makes battery replacement easier.
- Text | Hot-Swappable BatteriesKeeps equipment running by eliminating downtime during UPS power maintenance.
- Text | Extended Battery Module (EBM)Extends runtime by adding up to 10 EBMs.
- Text | Smart Battery Management (SBM)Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle chargingprocess.
- Text | Battery Equalization TechnologyBattery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
- Text | Fast Charge TechnologyAllows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs.
What's in the Box:
- UPS System
- Installation and Operation Manual
- Quick Start Guide
- Registration Warranty Card
- PowerPanel Management Software Download Card
- Input/Output terminal block cover
- Rackmount Left Rail
- Rackmount Right Rail
- Left Hanging Bracket
- Right hanging bracket
- Serial Interface Cable (RS-232)
- USB Communication Cable
- (2) Rackmount Ears
- (8) M5 x 7L Flat head screws
- (12) M5 x 12L Pan head screws
- (6) M5 x 6L Pan head screws
- (8) Plastic Washers
- (18) Screw Hole Dust Covers
- (12) Rubber Pads
- (2) Stands
- Screwdriver
