8 x NEMA 5-15R Outlets, NEMA 5-15P In, 1500VA, 1125W, 10 ft Cord, 2U
CyberPower Smart App Intelligent LCD/AVR. Output power capacity: 1.5 kVA, Output power: 1125 W, Surge energy rating: 1840 J. AC outlet types: NEMA 5–15R, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 7 min, Typical backup time at half load: 18 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 431.8 mm, Depth: 477.5 mm, Height: 88.9 mm

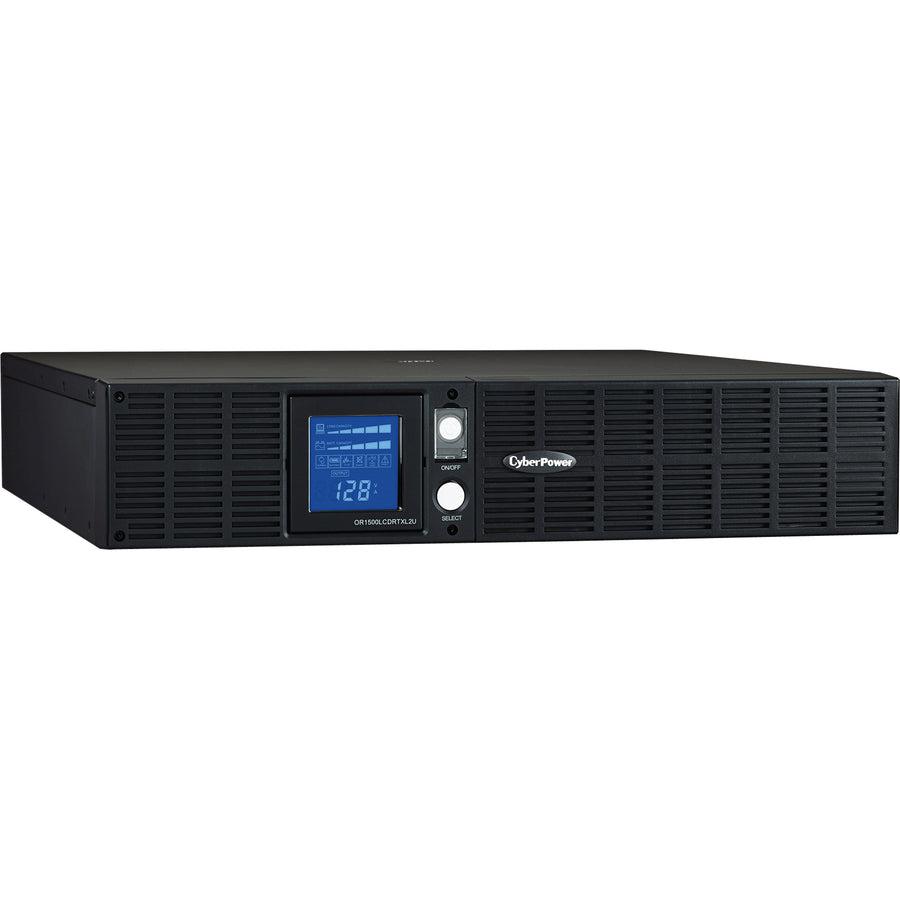

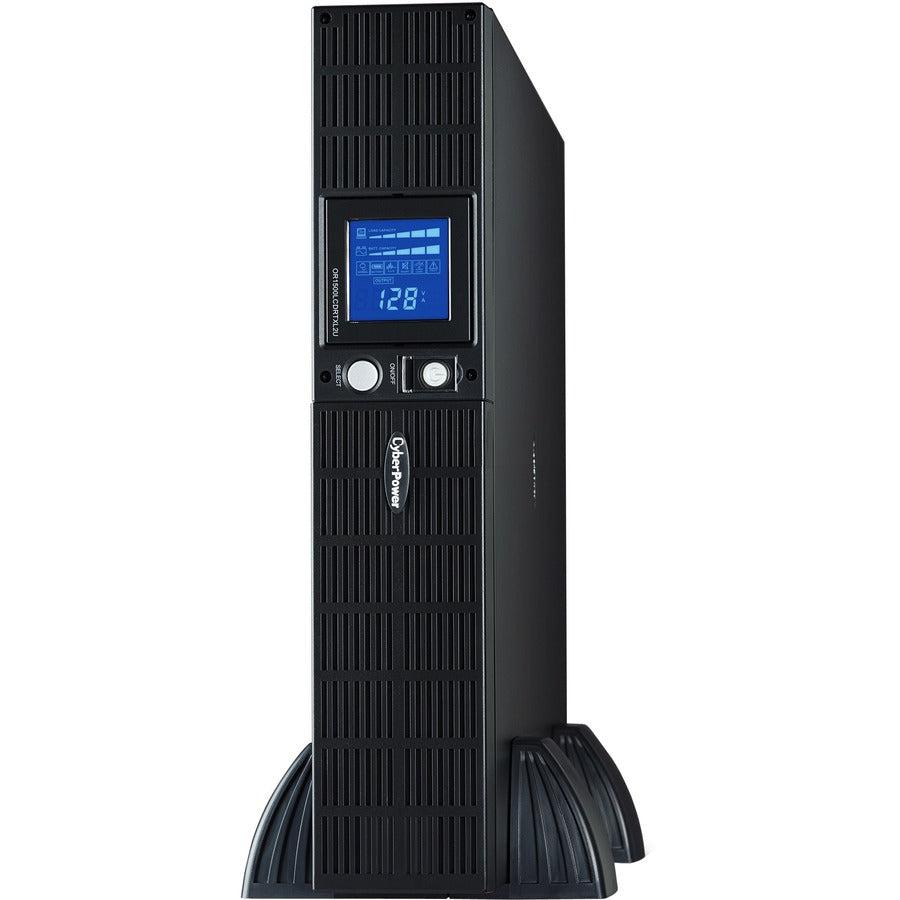

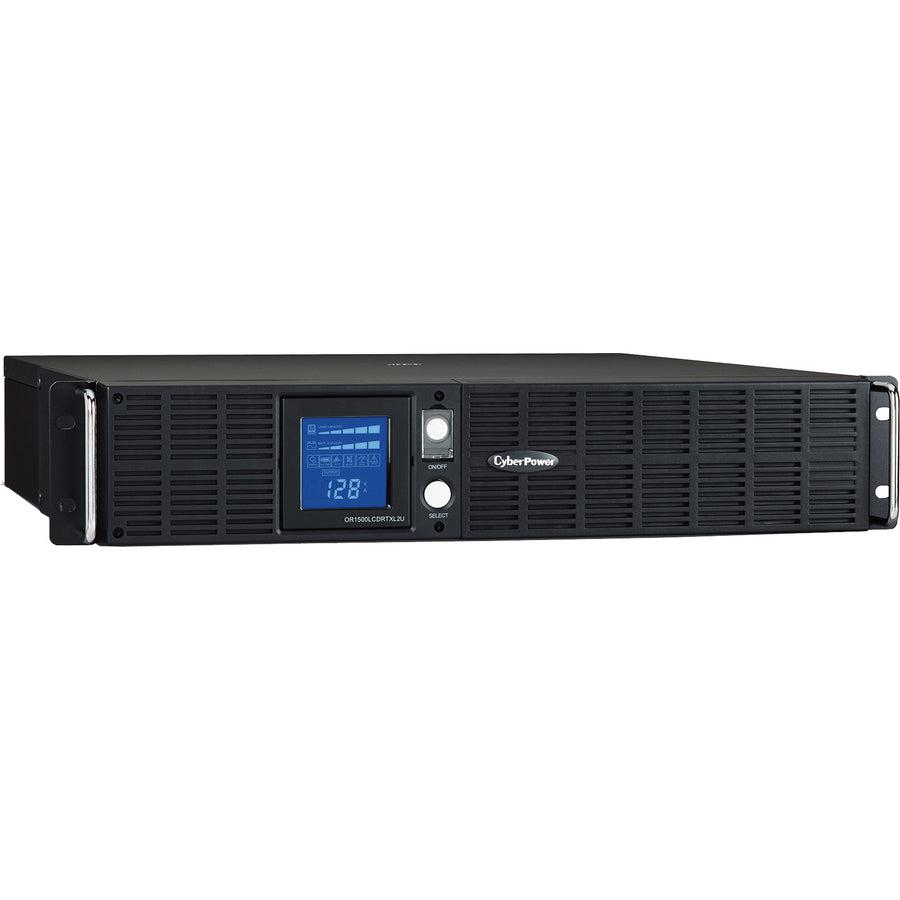

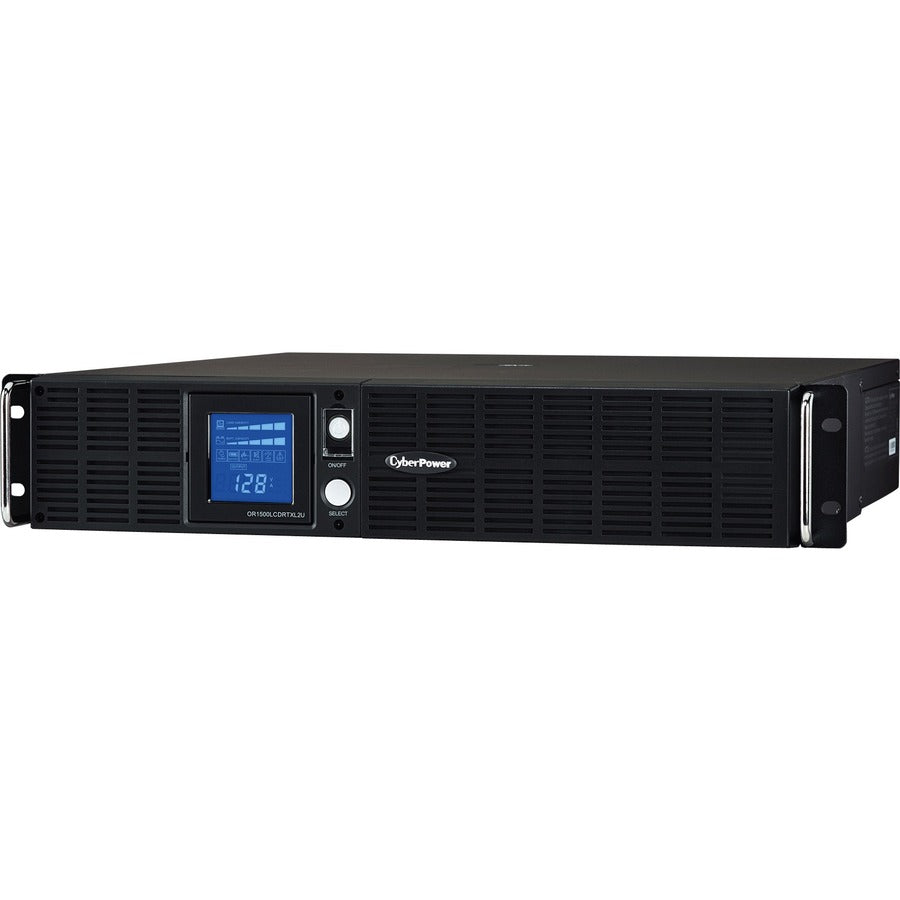

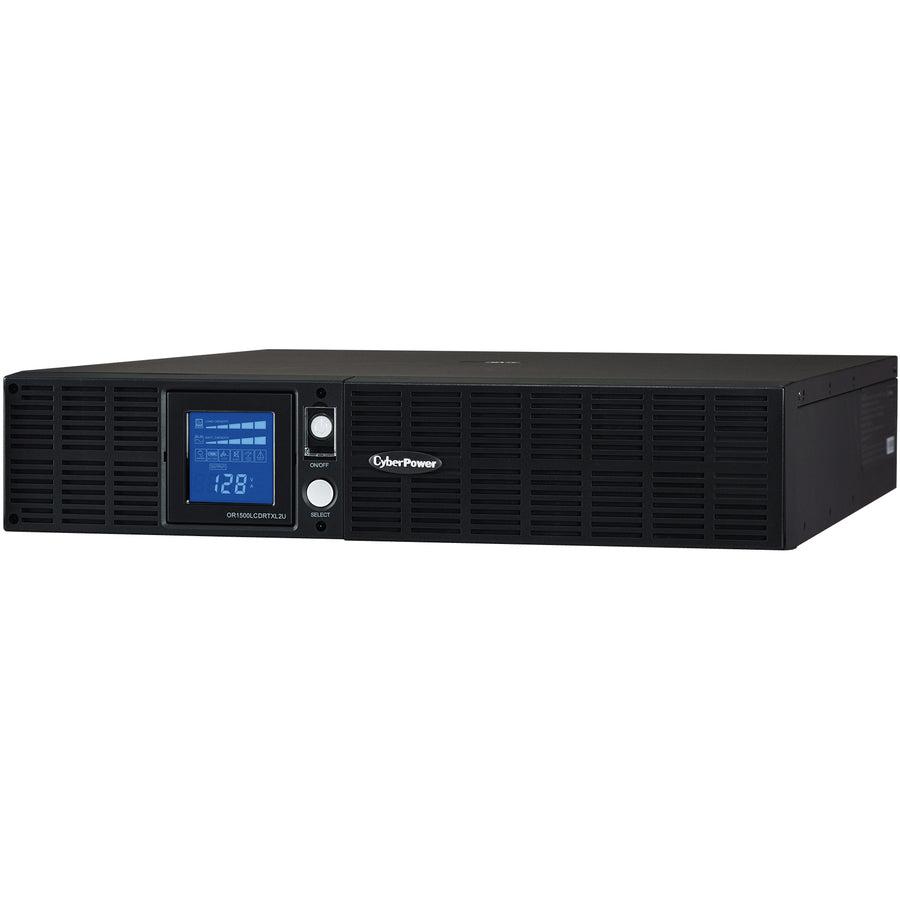

The CyberPower Smart App Intelligent LCD OR1500LCDRTXL2U uninterruptible power supply (UPS) safeguards internetworking hardware, telecom equipment, workstations and home entertainment systems that do not have active PFC power supplies. Its full automatic voltage regulation (AVR) boost/buck topology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. The Smart App Intelligent LCD Series UPS is designed to protect office servers, corporate and departmental networks, and network-based appliances.
The OR1500LCDRTXL2U unit has a capacity of 1500VA/1125Watts, eight (8) NEMA 5-15R receptacles and four (4) maintenance-free, user-replaceable 12V/7Ah batteries. The rotatable front LCD panel displays all major UPS vitals for ease of use. This unit offers connectivity via one (1) HID USB and two (2) DB9 serial ports. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the OR1500LCDRTXL2U through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.
The OR1500LCDRTXL2U allows for the addition of up to ten (10) BP48V75ART2U external battery packs to increase the runtime of the unit. The battery packs are easy to plug-in and can be "hot-swapped" to maintain system uptime during normal UPS maintenance.
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
OR1500LCDRTXL2U
Manufacturer Website Address
https://www.cyberpowersystems.com/
Brand Name
CyberPower
Product Series
Smart App LCD UPS
Product Model
OR1500LCDRTXL2U
Product Name
Smart App Intelligent LCD OR1500LCDRTXL2U 1500 VA Tower/Rack-mountable UPS
Product Type
Line-interactive UPS
UPC
649532015023
Battery Information
Battery Chemistry
Lead Acid
Height
3.5"
Width
17"
Depth
18.8"
Weight (Approximate)
59.50 lb
Miscellaneous
Package Contents
Smart App Intelligent LCD OR1500LCDRTXL2U 1500 VA Tower/Rack-mountable UPS
