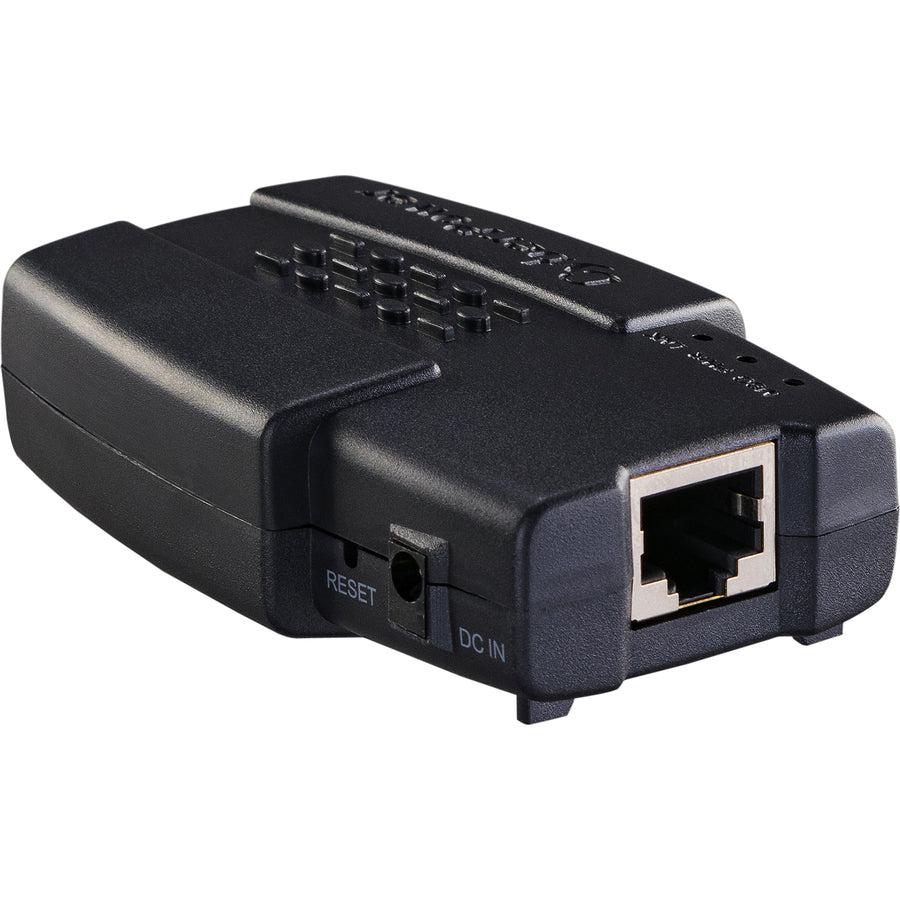

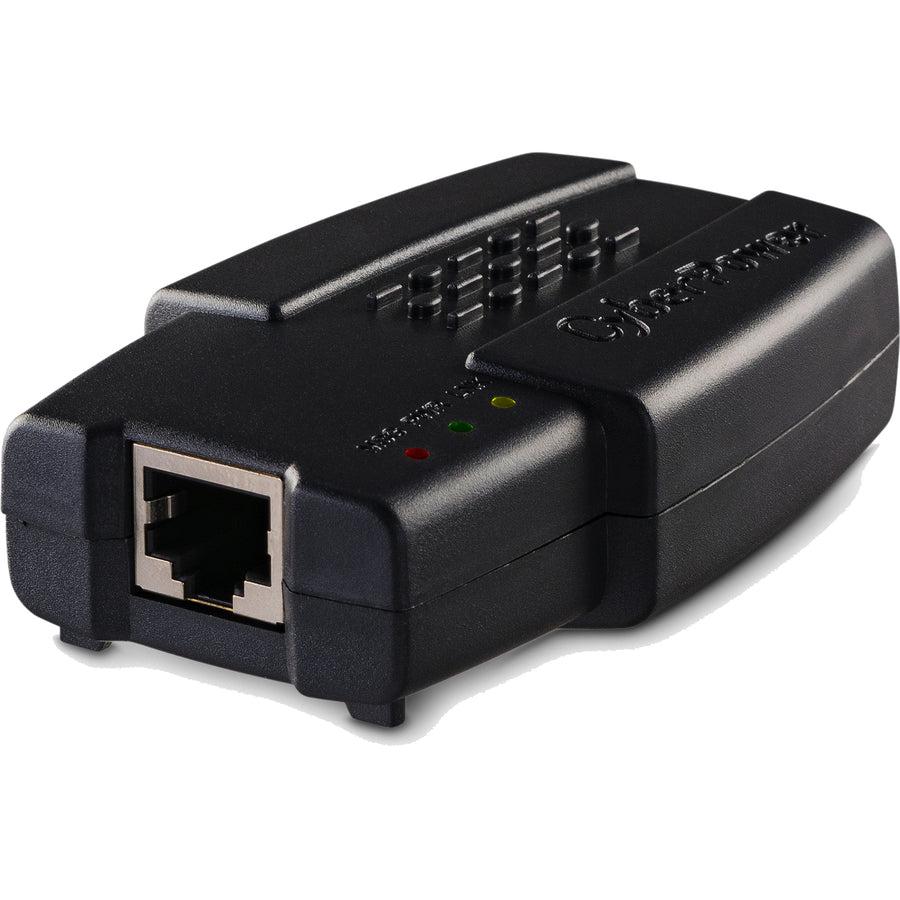

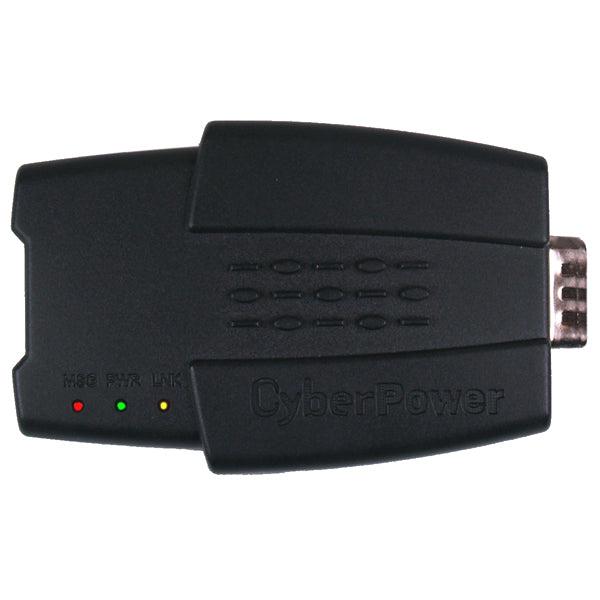

Cyberpower Rmcard100 Remote Management Adapter

RMCARD100, External adapter: Serial-to-RJ45

CyberPower RMCARD100

The CyberPower RMCARD100 is a full-featured network UPS management device that remotely manages, monitors, and controls your CyberPower UPS products. It is an external adapter that allows remote monitoring and control of a UPS via Web Browser or NMS. By utilizing the auto-shutdown software, servers and workstations stay protected from data loss due to power failure. Event log in software traces history of the UPS operational history. Security management also provided.

Features
- Remote management and configuration of UPS via Web Browser or NMS;
- Supports TCP/IP, UDP, SNMP, HTTP, BOOTP, and DHCP protocol;
- PowerPanel Shutdown Service for up to 6 servers and workstations;
- Automatic events notification via SNMP Trap;
- Flexible Event Action setting;
- Auto-shutdown to protect servers/workstations from data loss due to power failure;
- Schedule shutdown/startup/reboot of UPS remotely;
- Event logging to trace UPS operation history;
- SNMP MIB provided;
- 10Mbps fast Ethernet compatible;
- Quick installation and user friendly interface;
- Security management provided.

System Requirements
- A computer with a Windows Operating System;
- An Ethernet cable connection to an existing network;
- NMS (Network Management Station) compliant with SNMP;
- A RS232 cable to connect the CyberPower Network Management Card with UPS.

Compatibility
- CPS1500AVR**;
- PR1500SWRM2U, PR2200SWRM2U, PR3000SWRM2U;
- PP800SW**, PP1100SW**, PP1500SWT2**, PP1500SWT4, PP2200SW;
- OP650**, OP850**, OP1250**, OP1500**;
- OR1500LCDRM2U**, OR2200LCDRM2U**;
** Requires external DC power adapter (included)
